Summary of Contents for Qwizdom DC100
-

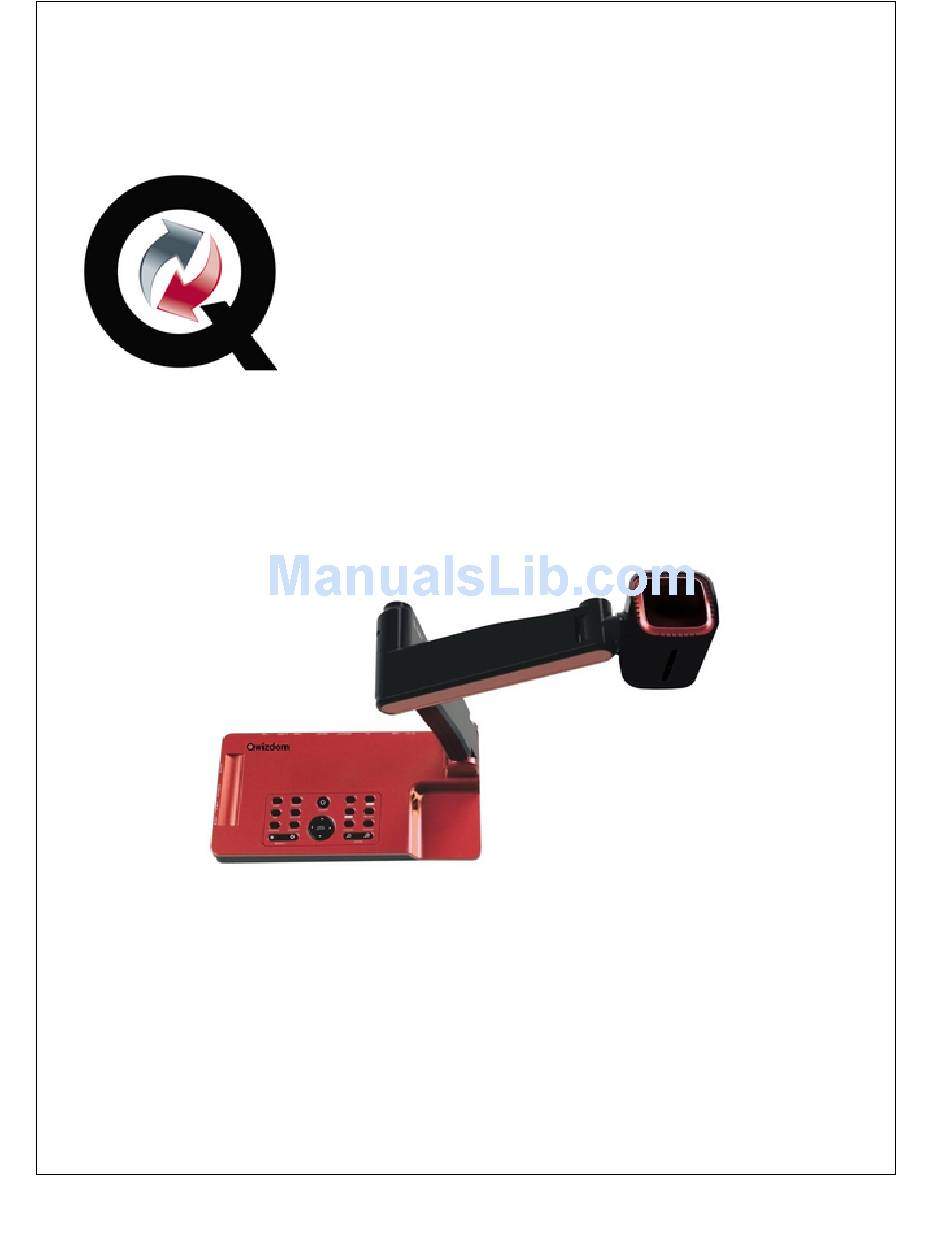

Page 1: Document Camera
wizdom Document Camera User Guide Copyright 2010... -
Page 2: Table Of Contents
DC100 Document Camera User Guide Table of Contents Part I Introduction 1 Handling Precautions ........................... 2 2 Item Checklist ........................... 3 Part II Software Installation 1 Installing the Document Camera Software ........................... 3 2 Installing Qwizdom WizTeach ........................... 5 Part III Document Camera Overview 1 Document Camera Diagram ........................... -
Page 3: Part I Introduction
Introduction Introduction This is a user guide for the Qwizdom Document Camera. This guide provides information and tips on using the Qwizdom Document Camera. If you need assistance, please contact Technical Support. Website www.qwizdom.com Tech Support (253) 770-1285 Email support@qwizdom.com Support Hours 6 a.m. -
Page 4: Item Checklist
Installing the Document Camera Software The Qwizdom Video Capture Program allows you to record in .AVI format and with annotations directly over the video feed, but not full-screen. A site license of the Qwizdom Video Capture Program is included with your document camera. - Page 5 Software Installation The Welcome to the Qwizdom Video Capture Setup Wizard will appear. Click Next. Click Next in the Select Additional Tasks window. © 2010 ... Qwizdom...
-
Page 6: Installing Qwizdom Wizteach
Click Finish when the setup is complete. Installing Qwizdom WizTeach The Qwizdom WizTeach software allows you access to a complete set of tools that can be used with any application and your document camera purchase includes a single user license. It allows you to record in flash video formats, complete with full-screen annotations. -
Page 7: System Requirements
CD-ROM drive Open USB Port Installing Qwizdom WizTeach from CD Insert the Qwizdom WizTeach disc into the CD-ROM drive. Click WizTeach Install. The Select Setup Language prompt appears. Select the installation language and click OK to continue. © 2010 ... Qwizdom... - Page 8 DC100 Document Camera User Guide Click Next in the Welcome to the Qwizdom WizTeach Setup Wizard. Read the License Agreement and select I accept the agreement. Click Next. © 2010 ... Qwizdom...
- Page 9 Software Installation Click on Next in the Select Components window. In Select a Destination, select where WizTeach will be installed and click Next. © 2010 ... Qwizdom...
- Page 10 DC100 Document Camera User Guide Click Next in the Select Start Menu Folder window. Click Next in the Select Additional Tasks. © 2010 ... Qwizdom...
- Page 11 Software Installation Click Next in the Ready to Install window. 10. Click Next in the Microsoft .NET Framework 2.0 Setup window. © 2010 ... Qwizdom...
- Page 12 DC100 Document Camera User Guide 11. Read the End-User License Agreement and check the I accept the terms of the License Agreement box. Click Install to continue. 12. Microsoft .NET Framework 2.0 will install. © 2010 ... Qwizdom...
- Page 13 Software Installation 13. Click Finish when Microsoft .NET Framework 2.0 has installed. 14. Qwizdom WizTeach will finish installing. © 2010 ... Qwizdom...
- Page 14 DC100 Document Camera User Guide 15. Click Finish when installation is complete. © 2010 ... Qwizdom...
-
Page 15: Part Iii Document Camera Overview
Document Camera Overview Document Camera Overview Document Camera Diagram Remote control IR receiver Camera LED light box Upper mechanical arm Main mechanical arm Side panel Back panel Base unit Control panel © 2010 ... Qwizdom... -
Page 16: Control Panel
DC100 Document Camera User Guide Control Panel turns the document camera on/off activates VGA output terminal, providing the image from camera turns on/off the LED light freezes/unfreeze the image switches the output image between text mode and picture mode splits screen, enables the comparison between the frozen image and live image activates the VGA input ©... -
Page 17: Zoom In And Zoom Out
You can also manually adjust the zoom by pressing ZOOM +or ZOOM -. © 2010 ... Qwizdom... -
Page 18: Focus Adjustment
DC100 Document Camera User Guide Focus Adjustment When the document camera is turned on, the focus automatically adjusts to the image. It is not necessary to readjust the focus if you are only working with flat materials (text, photos, etc.). 3-D objects may require a focus adjustment. Press the AUTO button to autofocus or press the FOCUS+ or FOCUS- button to focus manually. -
Page 19: Multiple Inputs And Outputs
PC. RS232 Control The RS232 terminal allows you to integrate the document camera into any central control system, like in a lecture hall. RS232 also enables you to control the document camera via computer. © 2010 ... Qwizdom... -
Page 20: Remote Control
DC100 Document Camera User Guide Remote Control Save: captures the image in display Recall: enable image recall mode, display the saved images Lamp: toggles arm light, back light, and no light Split: splits screen, enable the comparison between the frozen image and live... -
Page 21: Inputs And Outputs
VGA OUT: VGA (RGB) signal output (15 pin D-SUB) C-VIDEO: composite video output S-VIDEO: S-Video output VGA IN: VGA (RGB) signal input (15 pin D-SUB) AUDIO IN: audio input USB: captures image into a connected computer via provided software © 2010 ... Qwizdom... -
Page 22: Part Iv Document Camera Connections
DC100 Document Camera User Guide Document Camera Connections Computer Connection © 2010 ... Qwizdom... -
Page 23: Vga Output Connection
Document Camera Connections VGA Output Connection C-Video Output Connection © 2010 ... Qwizdom... -
Page 24: Video Output Connection
DC100 Document Camera User Guide S-Video Output Connection Video Capture Features If you start the Qwizdom Video Capture program without a camera attached, you will see the following: Be sure the document camera is plugged in before launching the Qwizdom Video Capture program. -
Page 25: Recording Video
· Click Pause to pause the recording (not stop). · Click Stop to stop recording. When you click Stop, a Save As window will appear for you to save the recording. © 2010 ... Qwizdom... -
Page 26: Part Vi Recording
Recording Recording with WizTeach Using Qwizdom WizTeach to save your videos in the .flv format will enable both Mac and Windows users to playback the captured movie files without having to use a conversion tool. © 2010 ... Qwizdom... - Page 27 Record button. Click Stop to end the recording and you will be asked where to save your recording. Saved recordings are available for playback in the Archives. Archives: keeps archives of previously recorded videos and images. Click the Launch button to open the video or image to view. © 2010 ... Qwizdom...
-
Page 28: Recording With Qwizdom Video Capture
10. Select a location in which to save the recording. 11. Enter the name with which you want the recording to be saved. You can choose to save the recording as a .qwv (Qwizdom WizTeach file) or .flv (Flash video) file type. -
Page 29: Part Vii Troubleshooting
· Autofocus is not on: press the Auto button again. · Fog on the lens in damp climate: this will disappear gradually when the equipment warms If the problem still remains after checking the above, contact Technical Support. © 2010 ... Qwizdom... -
Page 30: Part Viii Specification
DC100 Document Camera User Guide Specification Model DC100 Sensor 1/3" CMOS Pixels 2 Megapixel Zoom 9x optical, 8x digital Frame rate Shooting area Max: 13.5"x10.6", Min: 0.1"x0.1" Focus Auto/manual Output resolution Resolution (horizontal) < 650 TV lines White balance Auto/manual...
