Summary of Contents for Audio Pro WR200

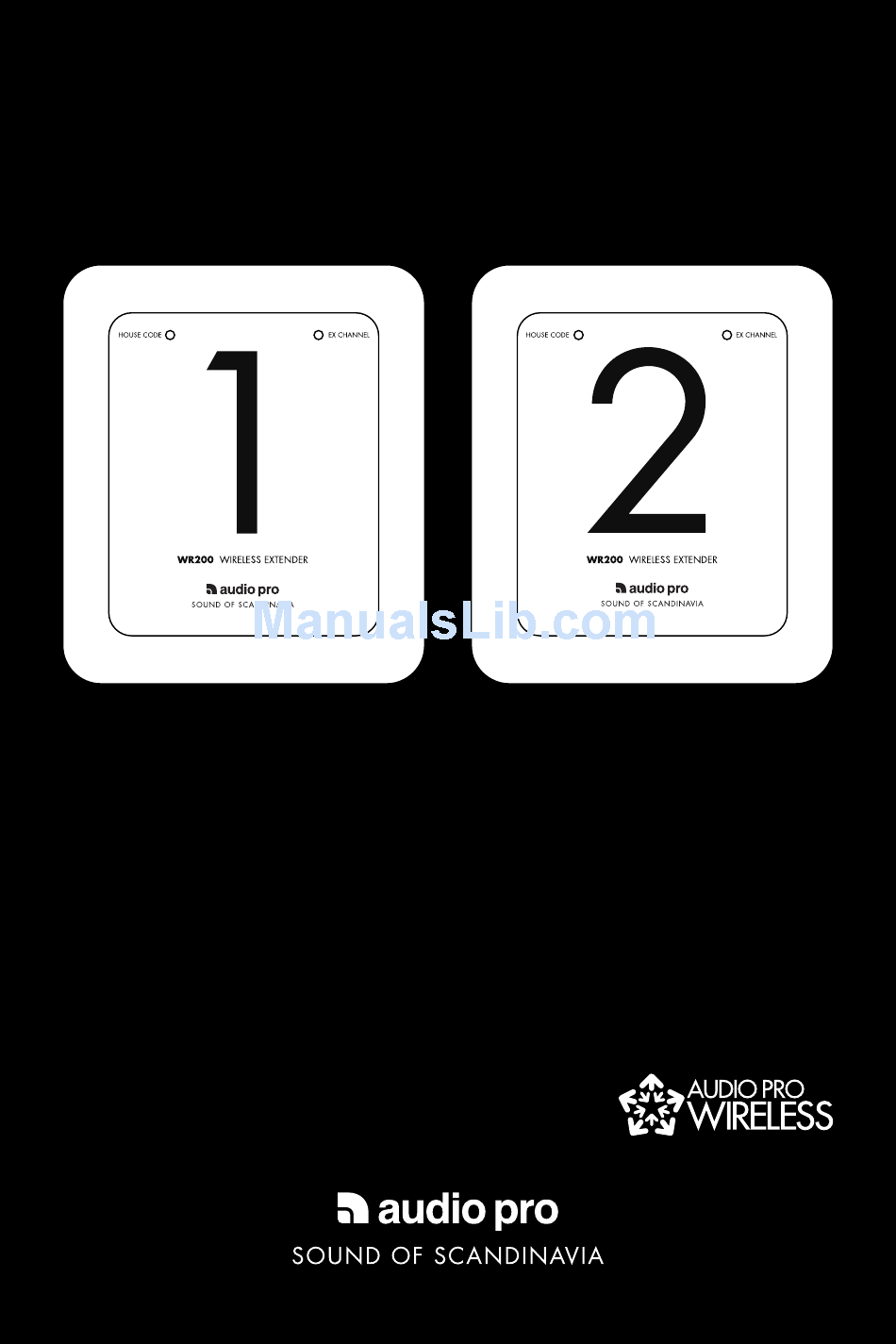

- Page 1 WR200 wr200 wireless eXtender Bruksanvisning Owners manual manuel d’utilisatiOn Bedienungsanleitung manual del prOpietariO käyttöOpas geBruikershandleiding...
- Page 2 ® , the audio pro logotype, the ‘a’ symbol, and ace-bass ® are all registered trademarks of audio pro aB, sweden. all rights reserved. audio pro follows a policy of continuous advancement in development. specifications may be changed without notice.
- Page 3 Wireless extender Wr200 this device contains : unit 1: FCC id: XCO-hsd81d82ut1, iC: 7756a-hsd81d82ut1 unit 2: FCC id: XCO-hsd81d82ut2, iC: 7756a-hsd81d82ut2 this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
-
Page 4: Important Safety Instructions
impOrtant saFety instruCtiOns 1. read these instructions. 2. keep these instructions. 3. heed all warnings. 4. Follow all instructions. 5. do not use this apparatus near water. 6. Clean only with a damp cloth. 7. do not block any ventilation openings. install in accordance with the manufacturer’s instructions. -
Page 5: Specifications
Features speCiFiCatiOns type: - extended room to room: up to 20m wireless extender for audio pro network - extended range same room: up to 50m - extended range in line of sight: up to 100m transmitting/receiving: unit 1: - wireless range between unit 1 & 2: 10-30m 2.4ghz receiver + 5.8ghz transmitter... - Page 6 3 different settings for the internal 5.8ghz channels. this feature makes it possible to use up to three wr200 systems in series in order to extend network even further. Or if your home has several wifi problems that need to be handled and circumvented.
-
Page 7: Basic Connection
BasiC COnneCtiOn all speakers located within range are set to the same house Code as the tX100. tX100 transmitter range: 20-100m unit 1 unit 1 eXtender Channel: hOuse COde: same as on the tX100 transmitter ( 1, 2 or 3) set to X, y or Z Range: 15-30m unit 2... -
Page 8: Example Connections
eXample COnneCtiOns 1. eXtending netwOrk 2. Bypass diFFiCult wall COnditiOns 3. Bypass diFFiCult FlOOr COnditiOns... - Page 9 5. eXtending netwOrk with up tO three wr200 sets if using more than one wr200 set, use different extender channels (X, Z and y) for all sets. Change the house code accordingly; set a: receive house code 1, send house code 2.
- Page 10 WArninG: the lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the tO reduCe the risk OF Fire Or eleCtriC presence of uninsulated “dangerous voltage” within the shOCk, dO nOt eXpOse this apparatus product’s enclosure that may be of sufficient magnitude tO rain Or mOisture.
