McLaren MLX-1000 Owner's Manual And Installation Manual

McLaren MLX-1000 Owner's Manual And Installation Manual

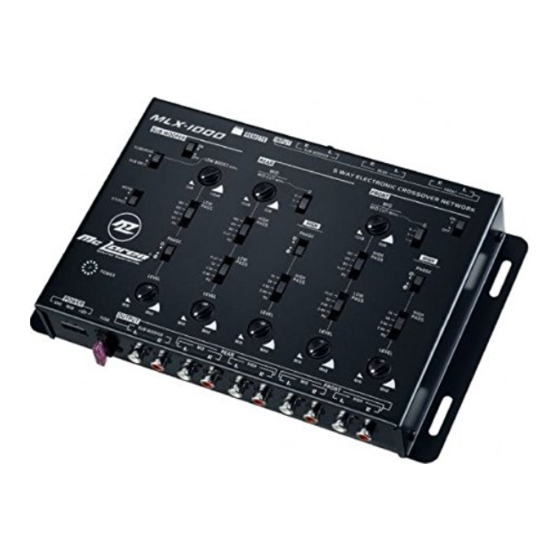

5 way electronic crossover

Advertisement

Quick Links

5 WAY ELECTRONIC
CROSSOVER
,
Owner s Manual
and
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLX-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for McLaren MLX-1000

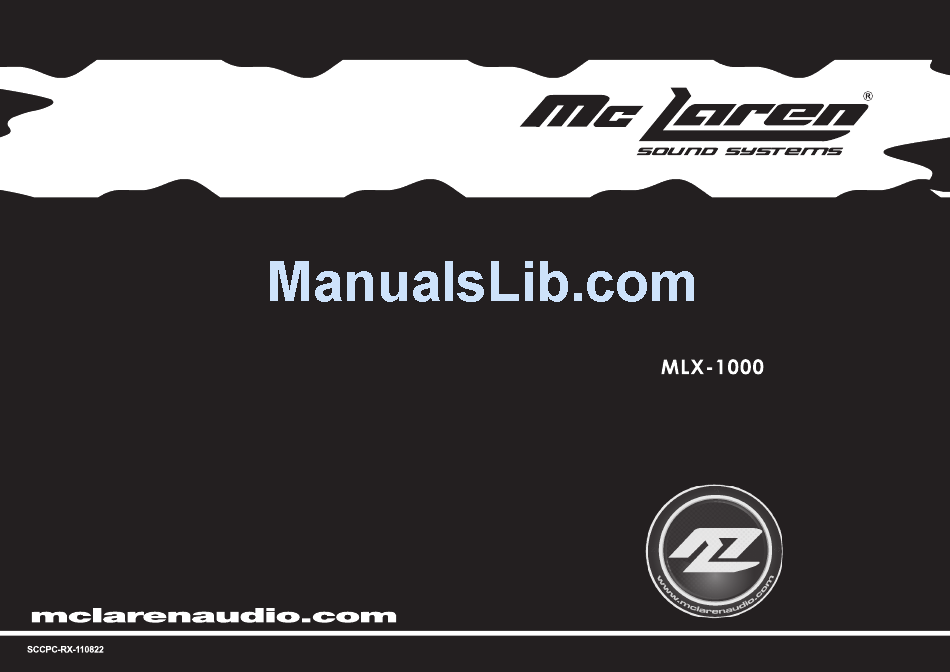

  • Page 1 5 WAY ELECTRONIC CROSSOVER Owner s Manual Installation Guide...
  • Page 2 The MLX-1000 is an Electronic Crossover Network with which you can install various types of multi amplifier systems in a car. The MLX-1000 is to be used with high quality power amplifiers and speakers in a multi amplifier system for hi fi (high fidelity) sound reproduction. The MLX-1000 has...
  • Page 3 SUB WOOFER output connector. When you use the unit without sub woofer output connector (when your unit is connected to only FRONT and REAR input connectors of the MLX-1000), set the selector to OFF. In this case, the summation of the front and rear input signals is output from This example shows the system which has five power amplifiers, two pairs of tweeters and mid the SUB WOOFER output connector.
  • Page 4 System 2 shows the general 4 speaker system with 4 amplifiers. In this system, set the Sub woofer Input selector of the MLX-1000 to OFF and front input selector to the ON position. If you want to get the more powerful bass sound from the rear speakers, set the low boost selector to the SUB & REAR position to make the LOW BOOST control work towards the rear speaker.
  • Page 5 SIGNAL CONNECTIONS HEAT UNIT Crossover Frequency Mid : FLAT, 80, 120, 180 Hz, 2.4K, 3.5K 5KHz High : 2.4K, 3.5K, 5K, 7KHz Sub : 50, 80, 120, 180 Hz Gain 0 dB (Front & Rear), +6 dB (Sub woofer) Harmonic distortion Less than 0.003% Signal to noise ratio more than 105dB...
  • Page 6 TROUBLE SHOOTING GUIDE 1. NOT WORKING Check all fuses. Check all power (positive,remote) wire connections. Check that ground wire is properly connected. 2. LED POWER ON INDICATOR NOT GOING ON: Same as sign 1 remedy. 3. SOUND DISTORTION AT LOW VOLUME LEVEL Output level not set correctly.
