Summary of Contents for Suponway Electronics SW-BM001

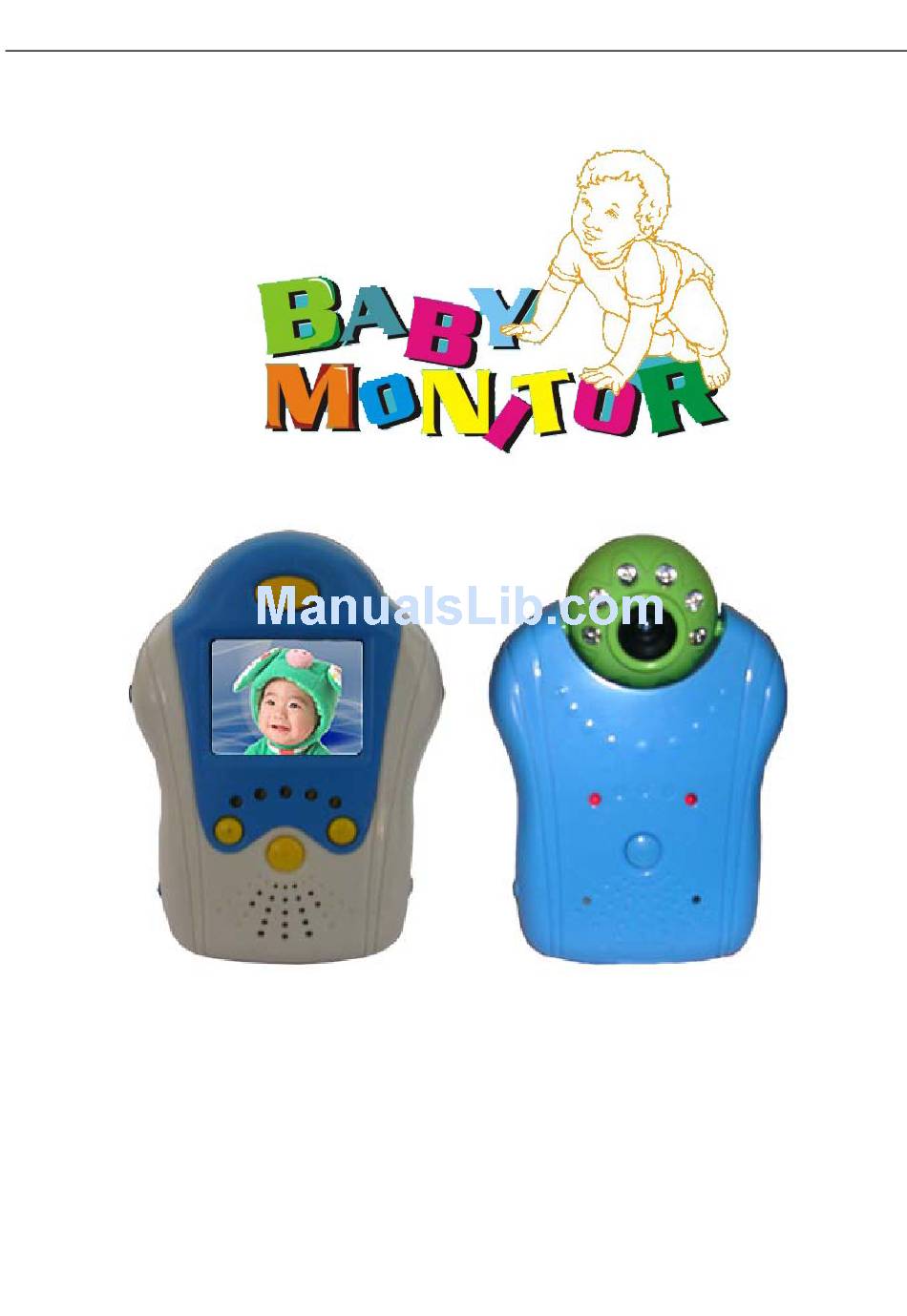

- Page 1 User’s Manual...
-
Page 2: Table Of Contents
Comtents Accessories ………………………………2 Product layout …………………………2 set up the camera ……………………3 Set up the monitor ……………………4 solve trouble …………………………6 Product specification…………………6 Monitor function introduction……………7 - 1 -... -
Page 3: Accessories
1.5”、1.8”baby monitor User’s Manual I、Accessories: 1．One camera 2．One LCD monitor 3．Two power adapter（5V/800mA DC） 4．Two 3.6V Li battery 5．One A/V cable 6．One user’s manual II、Product layout: Camera 1 .Infra-red led light 2. lens head 3. lens 4. power working indicate light 5 .low power indicate light 6. -
Page 4: Set Up The Camera
III、set up the camera The camera can uses one piece or power adapter supply 3.6V Li battery power(power adapter it is rechargeable to the Li battery, there have build in charging circuits in camera and monitor) 一、 Supply power by battery 1．... - Page 5 1． Plug one end of power adapter to the wall outlet and the other end into the plug of camera 2． Press the power switch, the power indicate light on(when supply power by ac adapter, if the battery haven’t enough power then AC adapter can charge the battery automatically and the power...
-
Page 6: Set Up The Monitor
6． Low power indicate 7． Brightness button (left) 8． Brightness button ( right) 9． Charge indicate 10． Channel button 11． AC adapter 5V DC input 12． A/V putout 13． Bracket 14． 3.6V Li batter V．Set up the monitor The monitor can use one piece 3.6v Li Battery or AC power adapters(the power adapter are recharge to the battery by as the monitor build in rechargeable circuits) 一、supply power by Battery... - Page 7 cover 3. Press the power switch, the power indicate light on, put the channel set up on channel which need working(often have four channel)when observe the image by LCD you can through the A/V output and connect with AV input of TV or VCR monitor observe meanwhile.
-
Page 8: Solve Trouble
solve trouble 一、LCD or VCR no signal interpretation. 1．Make sure the camera or monitor are turn on, working indicate light turn on 2．Make sure low power indicate light are turn off 3．AC power adapter and antenna whether it connect well, brightness whether turn into most dark. - Page 9 2468MHZ） A/V mod/method： Antenna： Build in omni-directional antenna Display inch： 1.5“/1.8”TFTLCD Display color： full color The voice control： can tune Power： DC5V or 3.6V Li battery Battery last time： 1-2hours Receiver Sensitivity ：-83DBM Operation temperature:0°C-40°C/32°F-104°F - 8 -...
