American DJ FC-416 Instructions

American DJ
FC-416
4 8 9
1
2
3
5
6
11
Thank you for purchasing this American DJ® product. Please read the following
instructions before installing or using your new unit.

FC-416 Features

The FC-416, 4 channel dimmable foot control is the perfect piece to give any DJ, band, church, or theater full
control of their lighting show. This foot controller is to be used with the American DJ® DP-20A or PP-15.
Features include: 4 channel foot control, master dimming, 16 built-in chases, 4 scenes per channel, sound active
or manual control, full on, black out, fade time, and 0 -10V output.

Operating Instructions

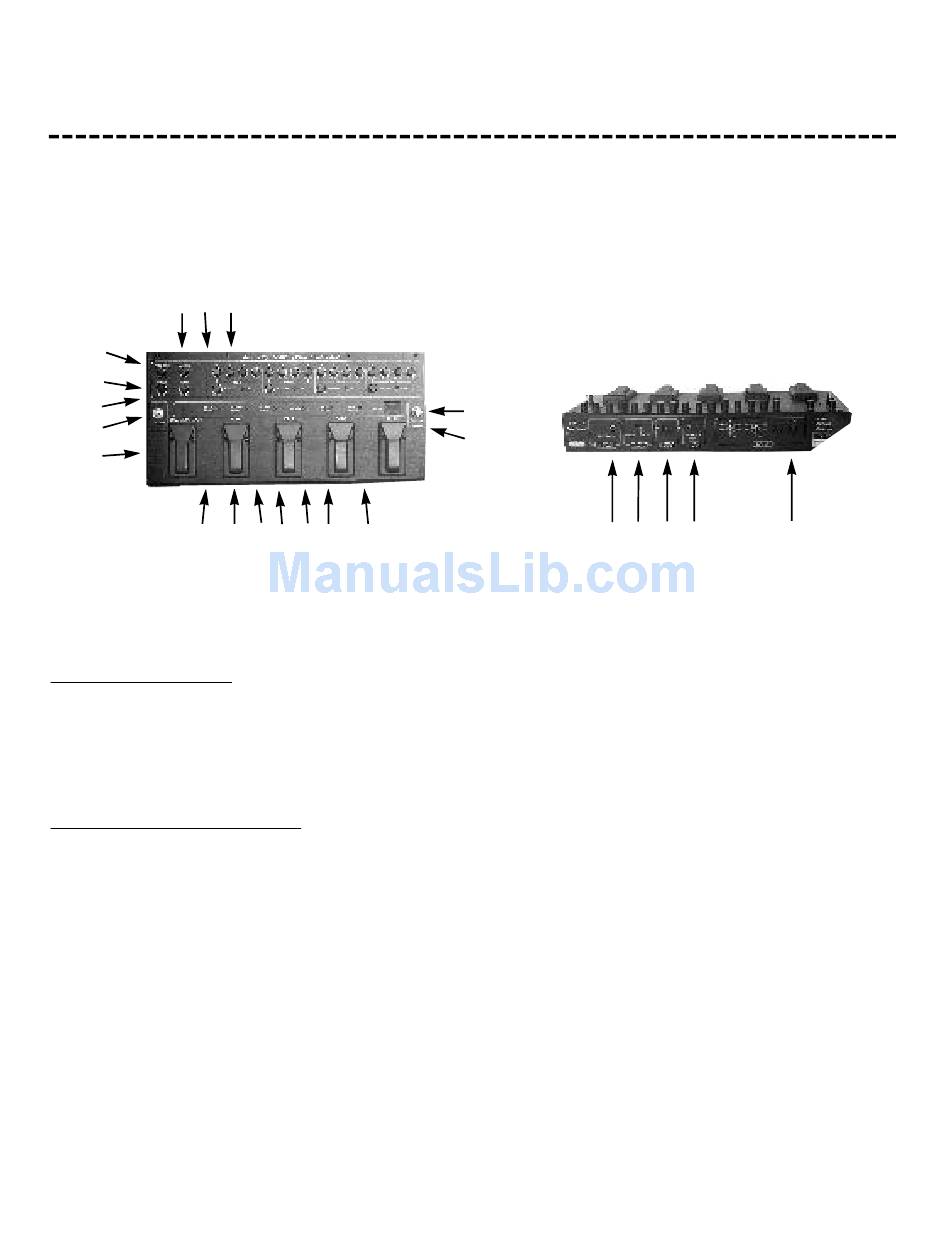

Front View

1. Fade Time Knob: On any function the user may set dimming from instant to a slow fade.
2. Speed Knob: If 'Program Speed' function is selected, the Speed Knob will control built-in programs. Red
LED will light up showing speed of chase.
3. Music Knob: If 'Program Audio' function is selected, the Music Knob will control the activity of audio
sensitivity. Red LED will light up showing music sensitivity..
4. Master Knob: Main control for brightness of all 4 channels.
5. Full On Button: When 'Full On' button is pressed, all 4 channels will go on at once.
6. Black Out Pedal: When 'Black Out' pedal is press, all lights will go out at once. Red LED above 'Black Out'
pedal will go on.
7. Channel 1 - 4 Pedals: Allows user to choose from 4 different channels each with 4 chase programs.
On any program mode, select one of the four built-in chase programs within a channel. (ie. Push channel
one pedal once and green LED next to 'Function Select' will show 'program 1'. 'Program 1' is built-in chase
program number 1. Hit the Channel 1 pedal again. Green LED will show 'program 2', this is built-in chase
program number 2). Each channel has 4 programs per channel (ie. CH1 - programs 1 -4, CH2 - programs
5 -8, CH3 - programs 9 -12, CH4 - programs 11 -16). Red LED lights next to 'Master & Scene knobs' show
which channel is in operation.
© American DJ® Los Angeles, CA 90058 - FC-416 User Manual Page 1
®
4 Channel Dimmable Foot Control
7 12 13 14 15 16
User
Instructions
10
17
18 19 20 21 22
