Summary of Contents for Oricom UHF080

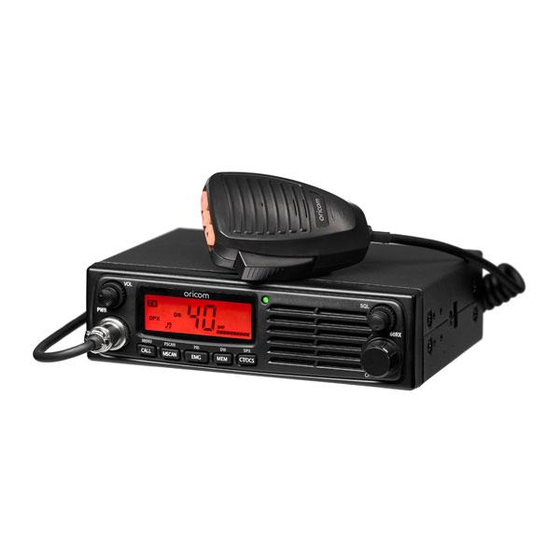

- Page 1 User Guide Oricom UHF080 40 Channel UHF CB Radio Downloaded from www.cbradio.nl...
-
Page 2: Table Of Contents
Table of contents Important Information Please read before installing or operating your Oricom Radio Safety Warning Controls and Connectors Installation of your Oricom UHF080 Box Contents Antenna Installation DC Power Using the DIN Kit Operation Dual Function buttons Power ON / OFF... -
Page 3: Important Information
Important information Please read before installing or operating Safety Warning your Oricom Radio For Vehicles with an Air Bag Do not place your radio in the area over an air bag or in the The operation of this radio in Australia and New Zealand is subject to WARNING air bag deployment area. -
Page 4: Controls And Connectors
Operation Operation Controls and Connectors Rear View Front View Antenna Connection External Speaker Socket Power Supply Connection Rotary On / Off Switch and Volume Control LCD Display Microphone Rotary squelch control Push to talk switch (PTT) 60 Channel Rx Selector switch Select Up Microphone connector Select Down... -
Page 5: Installation Of Your Oricom Uhf080
Using the DIN Kit position. If you are unsure about how to install your UHF080 The UHF080 comes complete with a DIN kit for mounting in a vehicle consult a qualified installer or your vehicle manufacturer. dash board. -
Page 6: Operation
CTCSS (Continuous Tone Coded Squelch System) Squelch Your UHF080 has 38 CTCSS codes to minimise interference from other To adjust the level of squelch use the rotary SQL control. Turning the users. You will only hear transmissions from users using the same control clockwise reduces the amount of squelch, turning counter code. -
Page 7: Dcs (Digitally Coded Squelch)
3 minutes the unit must stop transmitting. The 1. Press and hold the DPX button for 2 seconds, will appear on UHF080 is set to stop transmitting after 2 minutes and 30 seconds of the LCD display. continous transmitting. After that time the unit will stop transmitting... -
Page 8: Emergency Channel (Emg)
Select the second channel you wish to monitor using the CH control. 1. Press the P SC button for 2 seconds, the Priority Scan will stop, When a transmission is heard on one of those channels the UHF080 P-SC will disappear from the LCD display. -
Page 9: Menu Features
Operation Operation Menu Features Roger Beep The Menu button allows you to make a number of configuration Roger beep emits a tone when you release the PTT switch. changes. 1. Press and hold the MENU button for 2 seconds, the display will show Light LIGHT... -
Page 10: Busy Channel Lock (Bcl)
Channel control to select the desired KHz. 4. Press MEM, the frequency is stored to that channel. Factory Reset Should it be necessary you can return all the UHF080 settings to the factory defaults to do this. 1. Switch the unit OFF. -
Page 11: Frequency Table (Channel 1-20)
Specifications Specifications Frequency Table (Channel 1-20) Frequency Table (Channel 21-40) Channel Frequency (MHz) Usage Channel Frequency (MHz) Usage 476.425 Duplex RX/Simplex 476.925 Simplex 476.45 Duplex RX/Simplex 476.95 No Use 476.475 Duplex RX/Simplex 476.975 No Use 476.5 Duplex RX/Simplex Simplex 476.525 Emergency 477.025 Simplex... -
Page 12: Warranty
(b) Exclusion and limitation of liability. Oricom will not be in breach of a warranty or condition expressly stated in this User Guide or the Warranty Card... -
Page 13: Customer Support
Australia Oricom International Pty Ltd Locked Bag 658 South Windsor, NSW 2756 Customer Support Email: support@oricom.com.au Web: Australia www.oricom.com.au New Zealand www.oricom.co.nz Phone: (02) 4574 8888 Fax: (02) 4574 8898...
