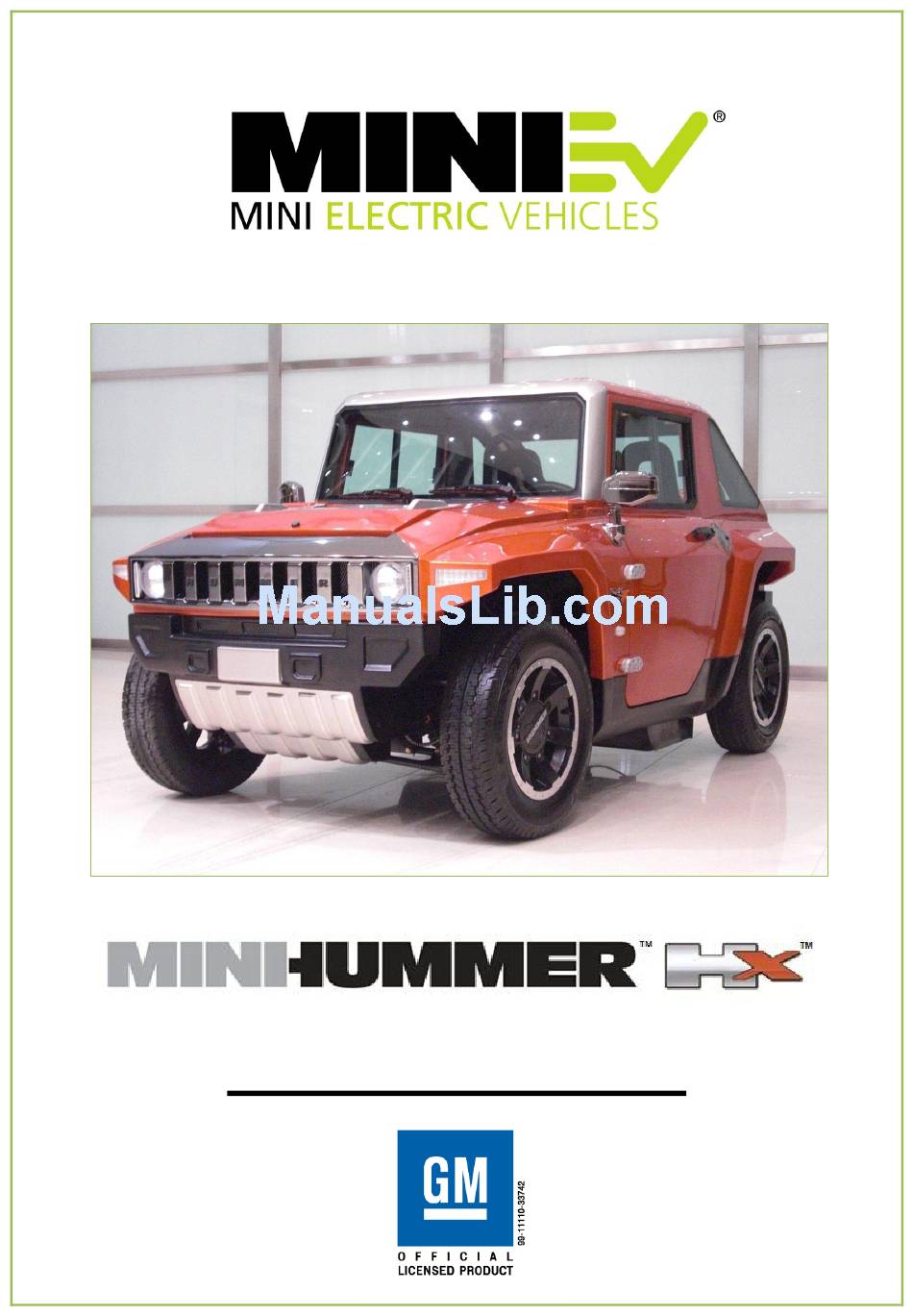

- Page 1 OWNERS MANUAL...
-
Page 2: Table Of Contents
MEV™ Mini HUMMER HX™ OWNERS MANUAL CONTENTS Item Page Number Foreword Notice Safety Regulations General Warnings Controls Layout Controls and Operation Pre-operation Checklist Driving Instructions Towing Storage Maintenance - Scheduled Maintenance - Battery Pack Maintencce Battery Care Battery Charging Charger... -
Page 3: Foreword
Notice: The Mini Electric Vehicles (herein known as MEV) warranty for owners appears at the end of this manual. No other warranties, expressed or implied, are contained herein. This cart was fully checked by MEV and/or an MEV Dealer before it was delivered to you. -
Page 4: Safety Regulations
MEV™ Mini HUMMER HX™ OWNERS MANUAL Safety Regulations: It is required to read the Owner’s manual completely before operating the cart or attempting any repair/maintenance work. Any violations of instructions in the manual may lead to property loss, serious injury, or even death. -
Page 5: General Warnings
MEV™ Mini HUMMER HX™ OWNERS MANUAL General Warnings: The following safety procedures should be followed during cart operation, maintenance or repair. Other special warning signs are described in this manual. DANGER The cart contains batteries which can emit quantities of explosive gases. Keep the cart in a well-ventilated area and away from sparks and open flames. - Page 6 MEV™ Mini HUMMER HX™ OWNERS MANUAL If any high heat condition or burning smell is noticed immediately park the cart in a safe location, place the ignition in the OFF position, move yourself and passengers away quickly to a safe distance from the cart and contact your dealer for assistance and repair. If fire or smoke is detected contact your local fire department immediately.
-
Page 7: Controls Layout
MEV™ Mini HUMMER HX™ OWNERS MANUAL Controls Layout:... - Page 8 MEV™ Mini HUMMER HX™ OWNERS MANUAL 1. Lights & Indicator Signal Stalk 2. Dual Retractable Cup holder 3. Forward & Reverse Stick 4. Steering Wheel 5. Hazard Flashers 6. LCD Instrument Display 7. Key Switch 8. Windshield Wiper Control 9. Heater Switch 10.
- Page 9 MEV™ Mini HUMMER HX™ OWNERS MANUAL LCD Instrument Display 1. Speed 2. Distance 3. Battery Power (Volts) 4. Amperage Display 5. Temperature 6. Miles/Kilometres Switch 7. Left Indicator Signal 8. Right Indicator Signal...
-
Page 10: Controls And Operation
MEV™ Mini HUMMER HX™ OWNERS MANUAL Controls & Operation: WARNING It is imperative that all operators of the MEV cart be familiar with the controls prior to operation. To avoid unintentional acceleration and cart damage, do not position the direction selector switch (forward/reverse) until the cart has come to a complete stop. - Page 11 MEV™ Mini HUMMER HX™ OWNERS MANUAL Multifunction Column Stalk The Multi-Function Stalk is a multi-feature control. It is located on both sides of the steering wheel and functions similar to an automobile for turn signalling and headlight. Turn Signal Left Side Stalk Pushing downward on the stalk indicates a left turn, pushing upward a right turn.
- Page 12 MEV™ Mini HUMMER HX™ OWNERS MANUAL Pull the right side stalk down to ”LO” or ”HI” position, the wiper will work at low speed or high speed respectively. Heated Seat Switches On the dash you will find a switch for the driver’s seat and a second switch for the passenger seat.
- Page 13 DC12V and rated for a Maximum Amp draw of 5A. Safety Belts The MEV Cart has two front seats which are installed with 3-point safety belts; the safety belts should be used at all times while operating the cart.
- Page 14 MEV™ Mini HUMMER HX™ OWNERS MANUAL To correctly secure the seatbelts, pull the metal tab out away from the retractor and insert into one of the two the buckles located in the centre of the seats. When the belt is securely connected a ‘click’...
-
Page 15: Pre-Operation Checklist
MEV™ Mini HUMMER HX™ OWNERS MANUAL Pre-operation Checklist: Every MEV cart has been thoroughly inspected by both the manufacturer and dealer prior to delivery. Before the initial operation, it is important that the user inspect the cart using the following guidelines;... - Page 16 MEV™ Mini HUMMER HX™ OWNERS MANUAL Ensure the passengers can properly operate the safety belts before allowing them to ride. Avoid operating at night because the cart may be difficult to see by others. If the cart must be operated at night, make sure you use headlamps and tail lamps.
-
Page 17: Towing
MEV™ Mini HUMMER HX™ OWNERS MANUAL Towing WARNING Do not tow behind an automobile or truck on any public roads. To tow the cart on public roads, use a trailer with a minimum load rating of 2,000 lbs. ... -
Page 18: Maintenance
MEV™ Mini HUMMER HX™ OWNERS MANUAL Maintenance: WARNING Only a certified technician should repair the cart. It is important to abide by all procedures described in this manual and all safety signs such as “Danger”, “Warning”, or “Caution”. ... -
Page 19: Scheduled Maintenance
MEV™ Mini HUMMER HX™ OWNERS MANUAL Scheduled Maintenance Procedures Daily Inspection By Owner Accelerator Pedal Check for normal operation Battery Pack Check the batteries as per page 15 of this manual and fill them to the proper levels as described on page 15 of this... - Page 20 MEV™ Mini HUMMER HX™ OWNERS MANUAL Schedule for Oiling & Lubrication Application Schedule Interval Inspection Location Recommended Application Brake Fluid Remove passenger DOT 3 Shell Brake Fluid Quarterly Inspection Reservoir side inner wheel By The Owner or a fender Qualified Technician...
-
Page 21: Battery Pack Maintencce
MEV™ Mini HUMMER HX™ OWNERS MANUAL Checking the Hydraulic Brake Fluid Levels To check the brake fluid level remove the reservoir cap located on the right hand side of the dash. How to add brake fluid: 1. Open the cap of the oil reservoir and take out the oil seal. -
Page 22: Battery Care
MEV™ Mini HUMMER HX™ OWNERS MANUAL WARNING Wear safety glasses while working on the cart or charger. Wear a full face shield and rubber gloves while working on or near the batteries. Use insulated tools while working on any electrical components. -
Page 23: Battery Charging
MEV™ Mini HUMMER HX™ OWNERS MANUAL WARNING Batteries contain high current. Do not overfill or allow water to stand on top of the batteries. Doing so could result in personal injury and or property damage. CAUTION Use distilled water, do not use tap water Add water only after charging unless the electrolyte level is below the top of the battery plates. -
Page 24: Charger
MEV™ Mini HUMMER HX™ OWNERS MANUAL Charger: On-board Charger The charger is located beneath the front body, mounted on the rear outer wall of the front trunk section. It begins the charge cycle after connecting the power plug to the charging receptacle inside the ‘fuel’... - Page 25 MEV™ Mini HUMMER HX™ OWNERS MANUAL If the charger is left connected to AC power supply, a refresh charge will occur after 10 days if the battery voltage has dropped below a pre-programmed level. If a refresh charge tries to start, but the AC power is disconnected, the charger will wait 8 days for AC to be restored.
-
Page 26: Cleaning
MEV™ Mini HUMMER HX™ OWNERS MANUAL Maintenance Instructions 1. For flooded lead-acid batteries, regularly check water levels of each battery cell after charging and add distilled water as required to follow the maintenance and safety instructions recommended by the battery manufacturer. -
Page 27: Cart Specifications
MEV™ Mini HUMMER HX™ OWNERS MANUAL Questions: Should you have any questions regarding the care, maintenance, repair or operation of your MEV cart, contact your local MEV Dealer. Cart Specifications: Motor 4 kW Motor Cooling System Air Vented Brushless Motor... -
Page 28: Warranty
MEV Limited Warranty: 1. WARRANTY MEV hereby warrants to the original purchaser of a new model that it shall be free from defects in material and workmanship under normal use and service for the periods stated below, subject to the provisions, limitations, and exclusions contained in this limited warranty. - Page 29 MEV’s liability under this limited warranty or in any action whether based upon warranty, contract, negligence, strict product liability, or otherwise, shall be the repair or replacement, at MEV’s option, of the cart or component thereof that is deemed to be defective. Replacement shall mean furnishing/repair, during the applicable limited warranty period, a new cart or factory-reconditioned cart or component thereof that is identical of the reasonable equivalent to the warranted product or component at no cost to the purchaser.
- Page 30 WAY VARIES THE TERMS OF THIS WARRANTY. 7. NO CONSEQUENTIAL DAMAGES IN NO EVENT SHALL MEV OR AN MEV DEALER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS RELATING TO PROPERTY OTHER THAN THE CART, LOSS OF USE OR TIME, INCONVENIENCE, OR ANY OTHER ECONOMIC LOSS.
- Page 31 MEV™ Mini HUMMER HX™ OWNERS MANUAL www.minielectricvehicles.com...
