Summary of Contents for ATC Group SCM25
-

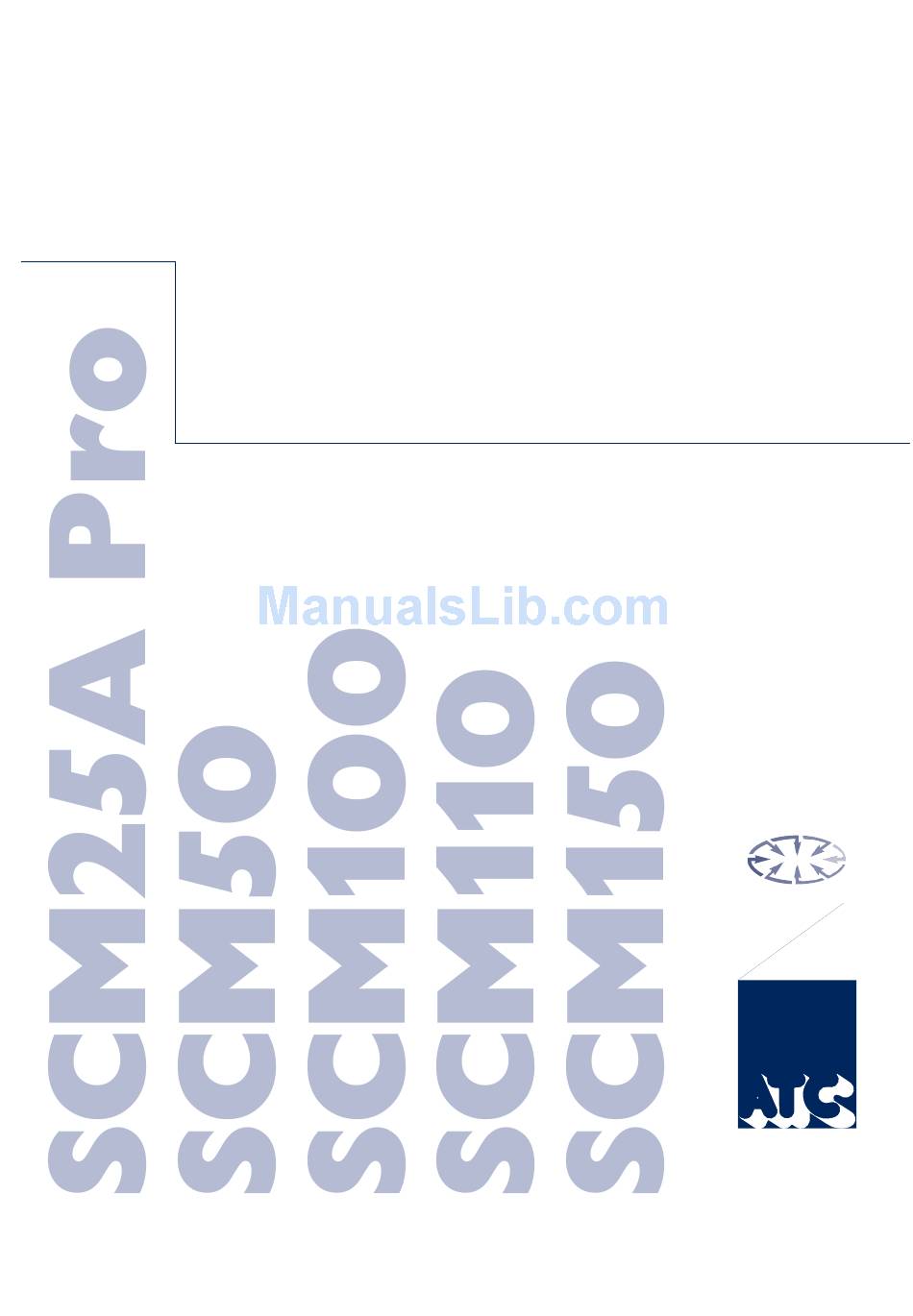

Page 1: User Manual
User Manual: Active: SCM25A Pro . SCM50ASL . SCM100ASL . SCM110ASL . SCM150ASL . SCM50SL . SCM100SL . SCM110SL . SCM150SL Passive: M U LT I C H A N N E L ® A C O U S T I C E N G I N E E R S... - Page 2 50/100/ 110/ S a f e t y W a r n i n g s 1. Read instructions – all the safety and operating instructions should be read before the appliance is operated. 2. Retain these instructions – the safety and operating instructions should be retained for future reference.
- Page 3 50/100/ 110/ 50/100/ 110/ I n t r o d u c t i o n Welcome. In selecting ATC you have chosen an example of the finest audio engineering available. ATC was founded on a principle of engineering excellence, and that principle still defines our products today.
- Page 4 Loudspeaker stand height should be chosen to position the loudspeaker The SCM25, 50, 100, 110 and 150 are large heavy items and acoustic axis at, or close to ear level (See Fig.2). All rooms vary and it is a good idea should be handled with care.
- Page 5 50/100/ 110/ ASL monitors 6 . O p e r a t i o n 5 . S i g n a l C a b l e O p t i o n s Diagram 4 and 5 illustrate the connection and control panels for the Amplifiers Balanced cable configuration is the preferred option, used in the active monitors.
- Page 6 50/100/ 110/ Loudspeaker Positioning - 5.1 & 7.1 Surround SL Monitors 8 . C o n n e c t i o n centre The monitors are equipped with a “tri-wire” connection panel to enable separate amplification of the bass driver mid driver and tweeter.
-
Page 7: Connection And Control Panel
50/100/ 110/ Diagram 4 - SCM25A Pro connection and control panel Input sensitivity (full output) bass boost Designed and manufactured by 2v/8.2dBu 1v/2.2dBu (ref.) +3dB 0dB (ref.) Acoustic Transducer Company Gloucestershire GL6 8HR England Tri - AmpPack High Performance Active Loudspeaker Laite on liitettävä... - Page 8 50/100/ 110/ S p e c i f i c a t i o n s ASL Monitors SCM110ASL SCM25A Pro SCM50ASL SCM100ASL SCM150ASL Drivers: 25mm (1") 25mm (1") 25mm (1") 25mm (1") 25mm (1") 75mm (3") 75mm (3") 75mm (3") 75mm (3") 75mm (3") 164mm (7")
- Page 9 50/100/ 110/ 1 0 . C a r e a n d M a i n t e n a n c e High technology material finishes are used in this product.The surfaces are durable and with a little care can be kept as good as new even under conditions of heavy use.
- Page 10 ® A C O U S T I C E N G I N E E R S Loudspeaker Technology Ltd, Gypsy Lane, Aston Down, Stroud, Gloucestershire GL6 8HR United Kingdom Telephone 01285 760561 Fax 01285 760683 Email: info@atc.gb.net Website: www.atc.gb.net...
