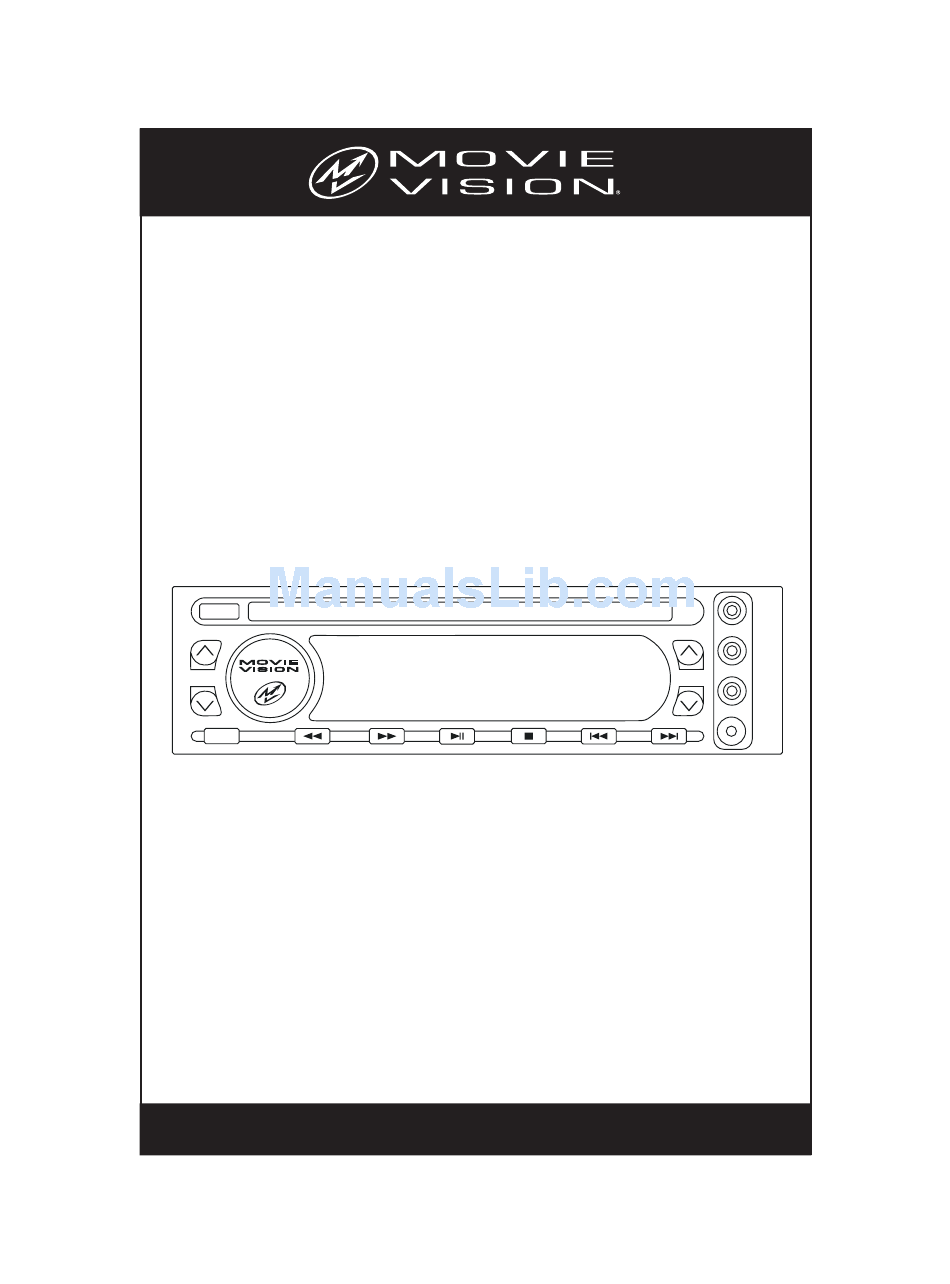

Page 1 Owner's Manual POWER AUDIO DVD / CD / MP3 MV-DVD-PL9 VOLUME VOLUME VIDEO Multi-Format Disc Media Player PHONES EJECT Model: MV-DVD-PL9 For operational or technical assistance, after reading this manual, please call us toll free at (800) 638-3600 or visit www.magnadyne.com.
Page 2: Table Of Contents
Contents Safety Information ....2-3 Installation......15-16 Features .
Page 3: Features
Using this Product Safely Operation Proper Power Supply Before installation and use of this DVD player, This product is designed to operate with a please read this manual completely. 12 Volt DC, negative ground battery system. Driving Protecting the Disc Mechanism Be aware of road and traffic conditions, keep the Avoid inserting any foreign objects into the slot volume at a low level.
Page 4: Disc Notes
Disc Notes Disc Formats Supported by this Player: DVD-R/DVD-RAM Discs which cannot be played with this player: • DVD-ROM • CDV • CD-G Disc Handling • Dirt, dust, scratches and warping disc will cause non operation. • Do not place stickers on disc or scratch disc. Preparing New Discs with Rough Spots •...
Page 5: Front Panel Functions
Front Panel Functions POWER AUDIO DVD / CD / MP3 MV-DVD-PL9 VOLUME VOLUME VIDEO Multi-Format Disc Media Player PHONES EJECT 1. VOLUME (+): Increases the volume level. 2. POWER: Turns the unit "On" or "Off". 3. DISC SLOT: Insert the disc label side up.
Page 6 Remote Control POWER MENU TITLE CLEAR PROG DISP SUBT SLOW AUDIO MUTE REPEAT ANGLE SETUP ZOOM ENTER MODE VOLUME Remote Control Using the Remote Control: Replacing the Battery: Being no more than 20 feet away, point the 1. Slide the battery cover off the back. remote control towards remote infrared sensor 2.
Page 7: Remote Control Functions
Remote Control Functions 1. EJECT: Ejects the disc. 2. TITLE: Displays the title menu that is stored on the disc. 3. MENU: Displays the DVD menu. 4. POWER: Turns the unit "On" or "Off". 5. SUBTITLE: Changes the subtitle language on multi-subtitle language discs. 6.
Page 8: Basic Operations
Basic Operations Loading a Disc Fast Forward 1. Turn the car ignition "On" to the accessory While a disc is playing, push the button position. play fast forward. With each press of the button 2. Press the POWER button. you will scroll through five fast forward speeds. 3.
Page 9 Basic Operations Note: When the symbol is displayed, this Title Selection signifies an invalid operation that is not accepted If the DVD has multiple titles, chapters or scene by the DVD player. selections recorded on the disc, any of these can be selected to begin playback.
Page 10 Basic Operations Display Disc Playing Time Repeat Play Continuously pressing the DISPLAY button dur- While a disc is playing, continue pushing ing playback will sequentially display: Title REPEAT to select from the repeat modes. Elapse, Title Remain, Chapter Elapse, Chapter Remain and Display Off.
Page 11: System Setup
System Setup SETUP MENU Angle Mark Some DVD Discs have multiple angle capabilities. If your disc has this option you can select Angle Mark. Descriptions of the Setup Menu Functions: GENERAL SETUP PAGE AUDIO SETUP PAGE VIDEO SETUP PAGE PREFERENCE PAGE PASSWORD SETUP PAGE EXIT SETUP PAGE 1.
Page 12 System Setup VIDEO SETUP PAGE GENERAL SETUP PAGE Screen Saver Video Setup After playback has stopped for a period of time the Choose from the different settings to adjust the screen saver will appear on the screen if the screen- monitor display.
Page 13 System Setup PREFERENCE PAGE PASSWORD SETUP PAGE Parental Settings Password Mode Choose from: Choose Password Mode “On” or “Off”. 1-Kid Safe 3-PG 4-PG13 5-PGR 7-NC17 8-Adult Password If you choose to use the password mode then first enter the default password. The default password is 123456. Next, enter the new password twice.
Page 14: Electric Connection
Eye Sensor Red RCA: Audio Out - Right White RCA: Audio Out - Left Yellow RCA: Video Out Monitor Optional POWER AUDIO DVD / CD / MP3 MV-DVD-PL9 VOLUME VOLUME VIDEO Multi-Format Disc Media Player PHONES EJECT 3.5mm Headphone Jack...
Page 15 In-Dash Mount Notes: • Install the unit into the dash using the parts • Follow the diagram to install the DVD player provided. into the dash. Sheet Metal Screw Metal Strap Dashboard Washer Trim Ring Mounting Sleeve Removal Keys Removing the Unit from Dashboard 1.
Page 16: Installation
Installation Notes: • With the black screws provided, attach the • Install the unit as a floor mount or under- brackets on both sides of unit as shown in the dash mount with the screws provided. illustration below. • Install covers as shown in illustration (below).
Page 17: Specifications
Specifications AUDIO S/N: 85 dBA Cross Talk: 75 dBA Distortion: 60 dB Frequency Range: 10-20, 000Hz +/- dB Output Level: 2V +/-0.2V VIDEO Output Level: 1V p_p +/-0.2V Resolution: >=500TV line GENERAL Output: Line Output Video Output Tone Control: Bass + 7dB (100Hz) Treble + 7dB (100KHz) Power Requirement: 12 VDC...
Page 18: Troubleshooting
Troubleshooting Only qualified service personnel should No Return to Start-Up Screen when Disc is remove the cover or service this player. Removed: Otherwise the warranty will become invalid. • Press POWER to turn "Off" the unit, then press it again to turn "On" the unit. If it appears that your DVD unit is faulty, first consult the list below.
Page 19: Replacement Parts
Replacement Parts Order Form Send Orders To : Magnadyne Corporation We Accept Checks, Money Orders, Visa and Master Car d A TTN: Consumer Parts Sales Make Checks Payable to: Magnadyne Corporation P . O. Box 5365 Carson, CA 90749-5365 SHIP TO: (No P .O. Boxes) LAST NAME FIRST NAME INITIAL...
Page 20: Warranty
Defective merchandise should be returned to the original point of purchase or secondly, to Magnadyne Corporation, 1111 W. Victoria Street, Compton CA 90220. Return Authorization must be obtained before sending, or merchandise may be refused. © Copyright 2008 Magnadyne Corporation MV-DVD-PL9-UM Rev. A 4-14-08...
