Summary of Contents for JoinTech JWin700

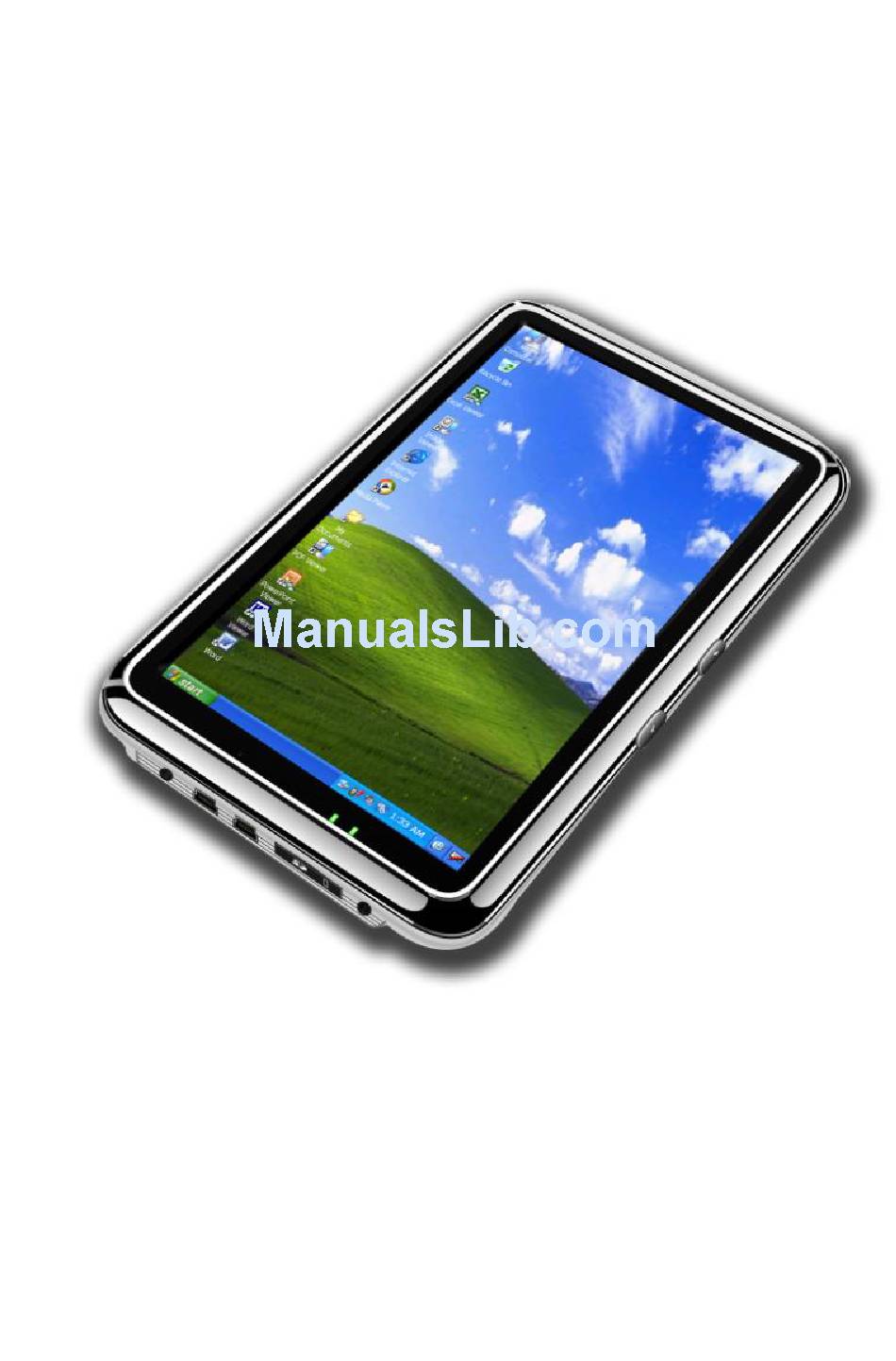

- Page 1 User’s Manual 7” Touch Screen Windows CE 6.0...
- Page 2 User’s Manual...
-
Page 3: Table Of Contents
User’s Manual Table of Contents: Package Contents..........Device Overview..........Using Battery Power..........Main Menu............Home Screen............Settings ..............Setting Volume............. Setting Back-Light..........Setting Time & Date..........Setting Power............Moving Around............eBooks ..............Viewing Images............Playing Audio............18 Playing Video............19 Flash and Games ……………………………………... -
Page 4: Package Contents
User’s Manual Package Contents Device TF Card Ear Phone Manual Leather like Cover Charger USB Cable Battery... -
Page 5: Device Overview
User’s Manual Device Overview LCD & Down Power / Charging Indication Speakers... -
Page 6: Using Battery Power
User’s Manual Using Battery Power The device is designed to work with a removable battery. A fully charged pack will provide several hours of battery life. Additional battery packs are optional and can be purchased separately. -
Page 7: Main Menu
User’s Manual Main Menu: The Main Menu screen is the first screen that appears on starting the JWin700 device after the boot-up sequence. The Main Menu offers large icons of different category of content in the device storage. The device storage card has... -
Page 8: Home Screen
User’s Manual Home Screen: The “Home” screen is root of the device from where you can access the files and folders both on the device internal flash or the storage card. The Home also lets you access the settings or going back to the menu by tapping the “M”... -
Page 9: Settings
User’s Manual Settings: You can change the different device hardware and software related settings by tapping the Settings icon in the main menu or Home screen. The Settings menu as shown in the this image allows to change the setting parameters of the: Volume Power... -
Page 10: Setting Volume
User’s Manual Setting – Volume: Adjust the volume level by tapping the + or – sign or use the slider by dragging it to the required level. Select the “Mute” option if you want to turn off the volume completely. Every time you tap the screen of the device any-where, there is touch sound. -
Page 11: Setting Back-Light
User’s Manual Setting - BackLight: The TFT LCD panels operate using special light at the back of the panel that adds brightness to the display. More is the intensity of this light, brighter will be the image. Since the back-light also consumes lot of current, so this is also important in regard to the battery backup... -
Page 12: Setting Time & Date
User’s Manual Setting – Date & Time: Increase or decrease the individual Date or Time value and close the screen by tapping the red close button on the top-right corner when you are done with the setting. The date and time are displayed in the Main Menu screen and the time is also displayed in the top-left... -
Page 13: Setting Power
User’s Manual Setting - Power: In order to save power or increase the battery back-up time, it is recommended to let the system go in stand-by or sleep mode if idle for some time. In standby mode, the LCD is completely Off and major part of the processing is Off too. -
Page 14: Moving Around
User’s Manual Moving Around: Moving around the device content is simply opening files and folders and using the “Back” icon to go back to the previous folder. Tap any file or folder once to open it. The files that show up are the one that are supported. -
Page 15: Ebooks
User’s Manual eBooks: Different file formats are supported for reading eBooks and more formats support can be added by installing additional WinCE eReader software. The supported formats include: Text Files (.txt) PDF Documents Word Documents HTML Files MobiPocket eBooks (.mobi, .pdb) Comics/Magazines with MMCE Reader (.cbr, .cbz) The device will open each format using its respective Reader software automatically. -
Page 16: Viewing Images
User’s Manual Viewing Images: In order to view an image, or picture or scan page of a book, simply tap once on any of the image file while browsing your device. Once you tap an image file, it will be opened in the Image Viewer software in full-screen mode by default. - Page 17 User’s Manual In the menu-mode, if the image size is bigger than the screen, then drag your finger on the image for panning. Tap the Zoom-100% button to view the image in its original or actual size or resolution. Tap the Full-Screen button to view image in full screen with no buttons.
-
Page 18: Playing Audio
User’s Manual Playing Audios: Tap on any audio file while browsing the device and the audio will be opened in an audio player. The progress bar will show the position and progress of the audio playing. You can drag the slider to forward or rewind the audio. -
Page 19: Playing Video
User’s Manual Playing Videos: The device supports playing video clips in different video file formats. Tap on any MP4 video file while browsing the device and the video would be open and played in Microsoft Video player. Tapping the video screen will play/pause the video. To get back from full-screen mode to normal mode, press one of the two hardware up/down buttons on the side of the device. -
Page 20: Flash And Games
User’s Manual Flash and Games: The device supports playing flash (.swf) files using its own Flash player. Tapping any flash file will play the file in the flash player. The “M” menu icon at the lower left corner allows to do the following: Change orientation of player from landscape/portrait Play/pause the flash animation... -
Page 21: Windows Ce Desktop
User’s Manual Windows CE Desktop: The WindowsCE icon in the Main Menu or Home screen will take you to the Windows CE 6.0 desktop mode. From here you can use the device more like a tablet PC. You can still access your eBooks from here and do some other things as well. -
Page 22: Using Internet
User’s Manual Using Internet: You can go online and surf the Internet using the device built-in Wifi hardware. You have to go to the Windows CE Desktop mode to use the Internet. Windows CE is based on low storage and memory resources and is not recommended for viewing very heavy and complex... - Page 23 User’s Manual Select your desired wireless connection by double tapping it. Once you select your wireless connection, a window of “Wireless Network Properties” will appear as show in the image here. If your wireless connection has a security password then uncheck the “The key is provided automatically”...
-
Page 24: Pc Connectivity
User’s Manual PC Connectivity: You can connect your device with your PC using the supplied standard 1 to 1 USB cable. You might need to install the driver if asked. The drivers are located in the CD which comes with the package. If the CD is lost, you can also download the drivers from our website. - Page 25 User’s Manual Use the supplied short USB cable. Avoid using long USB cables Do not use any USB HUB or extension cable. The drivers or ActiveSync is installed If Vista/Windows7 on your PC then WMDC is also installed. If the PC has other USB devices attached also, remove them.
