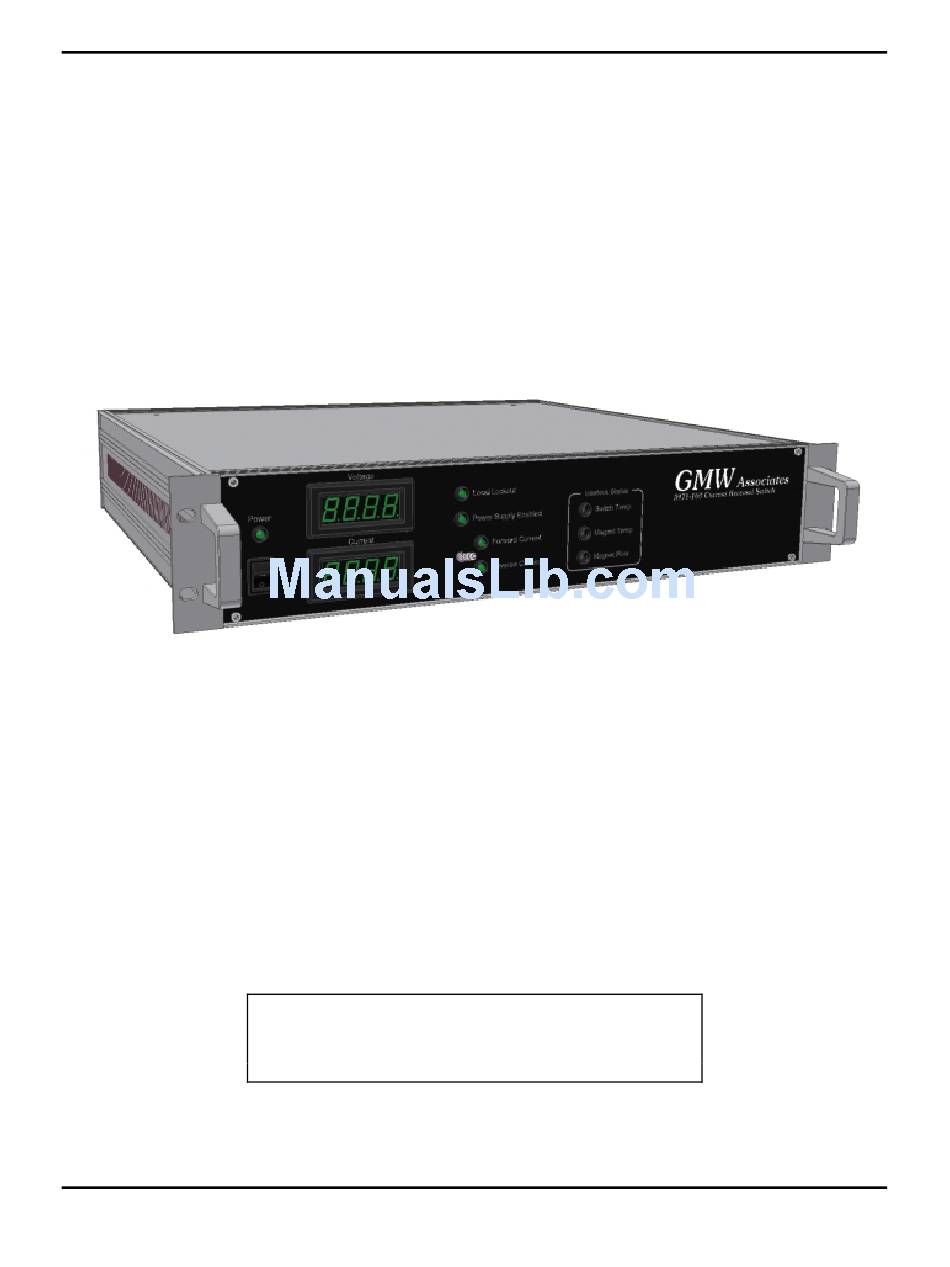

MODEL: 5971-160 Current Reversal Switch
File No: 5971-160_Reversal_Switch_Users_Manual_Rev_A
GMW
955 Industrial Road, San Carlos, CA 94070
E-mail: sales@gmw.com
USER'S MANUAL
PROPRIETARY
THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO
GMW ASSOCIATES. IT MUST NOT BE REPRODUCED OR DISCLOSED TO
OTHERS OR USED IN ANY WAY EXCECPT FOR THE INSTALLATION,
OPERATION OR MAINTENANCE OF GMW ASSOCIATES PRODUCTS.
Web: http://www.gmw.com
Revision Date: 9 December, 2010
Tel: (650)802-8292
Fax: (650) 802-8298

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5971-160 and is the answer not in the manual?

Questions and answers

Summary of Contents for GMW 5971-160

  • Page 1 MODEL: 5971-160 Current Reversal Switch PROPRIETARY THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO GMW ASSOCIATES. IT MUST NOT BE REPRODUCED OR DISCLOSED TO OTHERS OR USED IN ANY WAY EXCECPT FOR THE INSTALLATION, OPERATION OR MAINTENANCE OF GMW ASSOCIATES PRODUCTS.
  • Page 2: Table Of Contents

    16912-0000-0, Rev. A 8 PHOTOGRAPHS Section 8 5971-160 Reversal Switch 9 5971-160 Reversal Switch with GMW Electromagnets Section 9 8.1 - Table - GMW Electromagnets and appropriate DC Power Supplies 8.2 - Performance Data; Switch voltage vs. time 10 Warranty...
  • Page 3: Warnings [ Refer To This Section Before Operation ]

    DC Power Supply unless another person is present who is capable of rendering first aid. The output from the model 5971-160 Reversal Switch and its DC Power Supply is potentially lethal. It is capable of delivering high voltages at high current. Do not remove protective covers or leave cable terminations exposed.
  • Page 4: Specifications

    Section 2 SPECIFICATIONS Table 1. Model 5971-160 Current Reversal Switch Specifications --------------------------------------------------------------------------------------------------------------------- Electrical 160A maximum Power Input (From DC Supply) Sorensen DLM40-75E Recommended DC Power Supplies Sorensen SGA 60/83 60V, 83A Sorensen SGA 100/150 100V, 150A Sorensen SGA 160/31 160V, 31A...
  • Page 5 Overall Dimensions 482mm (19”) wide x 88.1mm (3.5”) high x 507mm (20”) deep Weight 15.75 kg (35lbs) 5971-160 Current Reversal Switch & SGA Power Supply in Optima Rack Overall Dimensions 560.5 (22”) wide x 1,058 (41.6”) high x 823 (32.4”) deep Weight (with Sorensen SGA 60/83) 105.75kg (235lbs)
  • Page 6: Installation

    Caution: In many cases, the Reversal Switch and DC Power Supply will be pre-installed by GMW into a 19” EIA equipment rack. If it is not, care should be taken during rack mounting to avoid personal injury or damage to the equipment.
  • Page 7: Electrical Connections

    3.3 - Electrical Connections Even if the 5971-160 Reversal Switch was ordered as a complete system and assembled into a rack by GMW, it is still recommended to follow and verify the following section as connections may have loosened during shipment.
  • Page 8: System Description

    4.1 - System Description A complete system would typically consist of an appropriate SGA series DC power supply, the GMW 5971-160 Reversal Switch, a Senis magnetic field transducer, an electromagnet and an appropriate computer and software or an external analog programming signal.
  • Page 9: Front Panel

    4.1.1 - Front Panel Power Switch Power Indicator Output Current Display Output Voltage Display Manual Current Polarity Control Local Lockout Indicator Power Supply Enabled Indicator Forward Current Indicator Reverse Current Indicator 10. Switch Over-Temperature Indicator 11. Magnet Over-Temperature Indicator 12. Magnet Water Flow Failure Indicator 4.1.2 - Rear Panel AC Mains Input (Auxiliary Power Supply) - 115 - 220VAC, 2A Fuse Holder / Voltage Selector...
  • Page 10: Initial Operation

    4.4 - Computer Control The 5971-160 is provided with a LabVIEW driver that allows basic control and monitoring of the Reversal Switch and DC Power Supply. To use the external control option, set the ‘Control Mode’ switch on the rear panel to ‘Internal’. This connects the internal DAC to the DC Power Supply analog control input.
  • Page 11: Usb 6251 Daq

    5971-160 Reversal Switch. If GMW’s Magnet Control software is not used, it is still possible to computer control the 5971-160 Reversal Switch by writing custom software to communicate with the USB-6251. The table below describes the channels used and their functions.
  • Page 12: Software

    Section 5 SOFTWARE The 5971-160 Reversal Switch is provided with basic control and monitoring software. This section covers the installation and basic operation of the software. 5.1 - Software Installation Install the software packages in the order below. This should ensure that all components are correctly installed and working.
  • Page 13 5.2.2 - Software Configuration Upon the first run of the software, a simple configuration screen will be presented. Select the DC Power Supply type from the provided list. If the power supply that is being used is not listed, enter the maximum voltage and current of the DC Power Supply that you have.
  • Page 14 5.2.4 - Local / Remote The Reversal Switch software defaults to local operation. In order to control the Reversal Switch it must first be placed into the ‘Remote’ mode. This is done by clicking on the Local / Remote’ Control. This control will change its state depending on what mode it is in.
  • Page 15 5.2.5 - Setting the output current The output current is simply set by entering the desired output current in the current control box. Setting the Output Current...
  • Page 16 5.2.6 - Selecting the Reversal Switch polarity To change the Reversal Switch polarity, simply click on the polarity control toggle. The Reversal Switch will then inhibit the DC Power Supply’s output, wait for the voltage to drop to a safe level, change polarity and then re-enable the DC Power Supply’s output.
  • Page 17 5.2.7 - Timed Switching The software has the ability to automatically switch at a rate chosen by the operator. To use the timed switching function follow the procedure below. 1. Push the ‘Enable Timer’ button. 2. Enter the desired time switching interval in seconds. Note that 30 seconds is the minimum interval.
  • Page 18 5.2.8 - Data Logging There are a few things to set up in order to use the data logger: 1. Push the ‘Create Log File’ button. This will open a dialog box that will prompt for the file name of the log file. If the file exists, it will prompt for confirmation to over write the existing file.
  • Page 19 5.2.9 - Status Read Back This software will read back the Reversal Switch status regardless of its Local / Remote status. The status read back consists of three interlock indicators and the general status indicators. If any one of the interlock conditions exists, the corresponding indicator will flash on the screen and the DC Power Supply’s output will be disabled.
  • Page 20: Maintenance

    Section 6 MAINTENANCE The 5971-160 Current Reversal Switch should operate for many years without any trouble provided that the following basic maintenance points are observed. Always remember that the AC power should be disconnected before performing any maintenance procedure. The 5971- 160 may generate lethal voltages and must not be operated with damaged components, protective covers or cable insulation.
  • Page 21: Drawings

    Section 7 DRAWINGS...
  • Page 33: Photographs

    Section 8 PHOTOGRAPHS 5971-160 Front View 5971-160 Rear View...
  • Page 34: Table - Gmw Electromagnets And Appropriate Dc Power Supplies

    Section 9 5971-160 with GMW ELECTROMAGNETS 9.1 Table - GMW Electromagnets and appropriate DC Power Supplies for use with the 5971-160 Current Reversal Switch GMW Electromagnet Peak DC Power Ametek - Sorenson Power Supply 5403, 5403EG, 5403FC, 5403AC 70A, 33V, 2.3kW...
  • Page 35 GMW Associates 5971‐160 Reversing Switch Performance Plot Contract No: 9625  Page: 1 of 1 Date: 2 Dec, 2010 Customer: Army Research Lab Engr: M. Duffy 5971‐160 Serial No: Power Supply:  P83C‐100150 Serial No: 0250A00730 Magnet Model: 3474  Serial No: 105  Pole: 50mm Gap: 30mm Field Meter: Senis YM12‐5‐5‐5T Serial No: 24‐07 Note: Set Current: 50A,  Timed Switching every 30 seconds. Current (A) Current (A) Voltage (V) Voltage (V) Field (T) Field (T) ‐20 ‐0.5...
  • Page 36 GMW Associates 5971‐160 Reversing Switch Performance Plot Contract No: 9625  Page: 1 of 1 Date: 2 Dec, 2010 Customer: Army Research Lab Engr: M. Duffy 5971‐160 Serial No: Power Supply:  P83C‐100150 Serial No: 0250A00730 Magnet Model: 3474  Serial No: 105  Pole: 50mm Gap: 30mm Field Meter: Senis YM12‐5‐5‐5T Serial No: 24‐07 Note: Set Current: 150A,  Timed Switching every 30 seconds. Current (A) Current (A) Voltage (V) Voltage (V) Field (T) Field (T) ‐25 ‐50...
  • Page 37 GMW Associates 5971‐160 Reversing Switch Performance Plot Contract No: 9625  Page: 1 of 1 Date: 7 Dec, 2010 Customer: Army Research Lab Engr: M. Duffy 5971‐160 Serial No: Power Supply:  P83C‐100150 Serial No: 0250A00730 Magnet Model: 3473 Serial No: Pole: 100mm Gap: 25mm Field Meter: Senis YM12‐5‐5‐5T Serial No: 24‐07 Note: Set Current: 70A,  Timed Switching every 30 seconds. Current (A) Current (A) Voltage (V) Voltage (V) Field (T) Field (T) ‐25 ‐0.5 ‐50...
  • Page 38 GMW Associates 5971‐160 Reversing Switch Performance Plot Contract No: 9625  Page: 1 of 1 Date: 7 Dec, 2010 Customer: Army Research Lab Engr: M. Duffy 5971‐160 Serial No: Power Supply:  P83C‐100150 Serial No: 0250A00730 Magnet Model: 5403 Serial No: Pole: 76mm Gap: 54mm Field Meter: Senis YM12‐5‐5‐5T Serial No: 24‐07 Note: Set Current: 50A,  Timed Switching every 30 seconds. Current (A) Current (A) Voltage (V) Voltage (V) Field (T) Field (T) ‐0.2 ‐20 ‐0.4...
  • Page 39: Warranty

    GMW Associates. If any defect or fault in the equipment is discovered the end-user should notify GMW Associates of the problem including details of Model numbers and serial numbers. GMW Associates will either make arrangements for service by the end-user or GMW Associates, or give authorization for return shipment to GMW Associates.
