Summary of Contents for Sail Pro Bullet HD

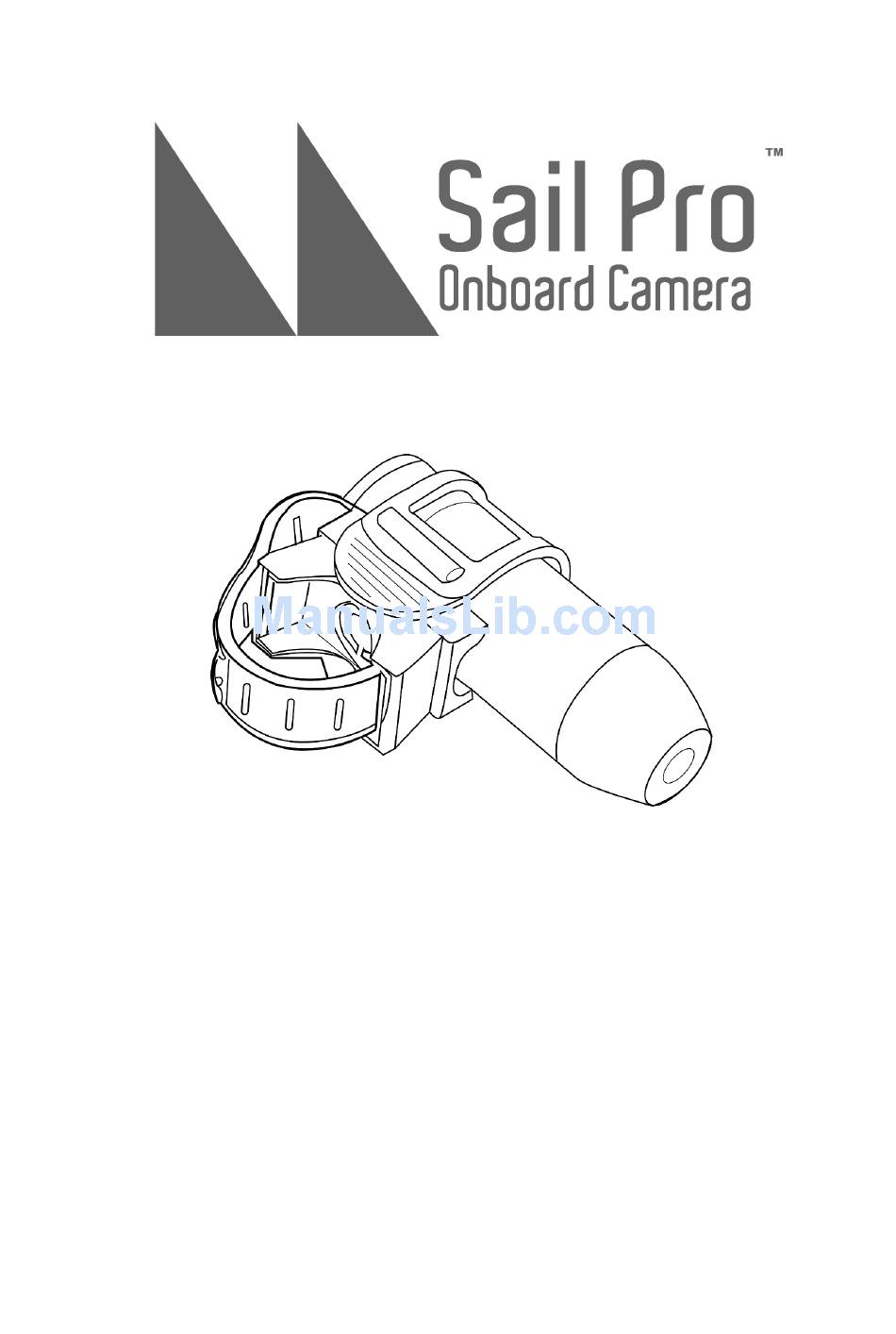

- Page 1 User Manual...
-
Page 2: Camera Overview
Welcome Thanks for purchasing our Sail Pro Onboard Camera —The world’s first wearable camcorder with 12.0 Mega Pixels camera! It is light as feather; almost nothing can be felt when fitted with your goggles and helmet. With our full series... -
Page 3: Initial Setup
INITIAL SET UP 1. Make sure the camera is OFF before adding or removing the memory card! 2. Screw out the rear cap (open) located at the back of the camera (3) . 3. Install a 4, 8,16 or 32 GB Micro SD memory card (Optional) into the rear slot. - Page 4 You can record up to 125 minutes with one charge. Power on/off your Sail Pro onboard camera Press and hold the POWER/Shooter button for 2 seconds for power on, the green led will turn on and the red led will flashes 2 times ,then comes to standby mode.
- Page 5 mode, press the Power/Shutter button quick to start video recording. The red led will blink and you can hear a sound. Press the same button to stop recording. To confirm the camera is in video mode, Screw out the rear , and the video/photo switch “...
- Page 6 29090 40mins 80mins 160mins 320m Using Sail Pro Camera for Water Sports Caution! Remind you to put some silicon grease to the rubber O-ring from time to time, especially before using underwater. Make sure the rear cap was closed tight.
- Page 7 Install the CD driver to your computer! Make sure the MicroSD card is in the Sail Pro /Bullet HD, then connect to PC. Blue light will turn on, then switch on the camera. Back to your PC screen, there should be a window to show the Sail Pro / Bullet HD is connected with your PC.
- Page 8 computer for data download. Don’t remove the battery! Watching video at the same time may cause unexpected consequence! LED Status Table Green Red LED Blue Standby Battery charging Taking Video Blink Taking Photo Blink Low battery Blink No micro SD card Intermittent Blinking Micro SD card fill up Intermittent Blinking...
- Page 9 Fit with any standard 29mm handle bar with a 720-degree rotation! You can record at any angle with your Sail Pro onboard camera. Besides, there is adjustable silicon strap fix with any kind of vented helmets. Strap Mount for Non-vented Helmet /...
- Page 10 It has a “female” ¼"-20 screw on the bottom to fix with any mounts or tripods that have their own “male” ¼”-20 screw. Compatible with camcorder mount adapter, adjustable silicon straps, magic tape, windshield mount and flat surface mount. Adjustable Silicon Straps 2 pieces of flexible &...
- Page 11 Travel Case This durable case with belt loop & Carabineer let you never forget where to put with your gear bag. Pack your Sail Pro onboard camera, MicroSD cards, USB cable, an extra battery, and mounts with you where ever you go or leave at home, in order not to lose them.
- Page 12 Make sure it’s fixed well, you are ready to go! Flat Surface Mount With a magic mat allows your Sail Pro onboard camera to stick with any flat surface or glass surface. Based by a multi position metal ball, you can shoot at any anger at 720 degree.
- Page 13 Warranty: Your Sail Pro product is covered by a 90 days Limited Warranty on parts and labor from the date of original purchase, and purchases must be made through an authorized dealer. warranty covers defects workmanship and materials. The warranty does not apply to units, which have been damaged or abused intentionally or unintentionally.
- Page 14 Technical specifications for Sail Pro Onboard Camera/ Bullet HD: Model : Sail Pro / Bullet HD Optics: o 170 degree - FISHEYE view at 720p resolutions o f/2.8, fixed focus glass lens Video: o HD Resolution Settings: 720p: 1280x 720, 30fps o Sensor Type: 1 / 2.5”...
- Page 15 Sail Pro Onboard Cameras. Any attempt by anyone other than our authorized dealers to copy or reproduce any of the above without permission of Sail Pro will be met with legal action. Sail Pro products are available for purchase only at http://www.sailprocameras.com...
