Summary of Contents for Swiss Audio SMX2400C

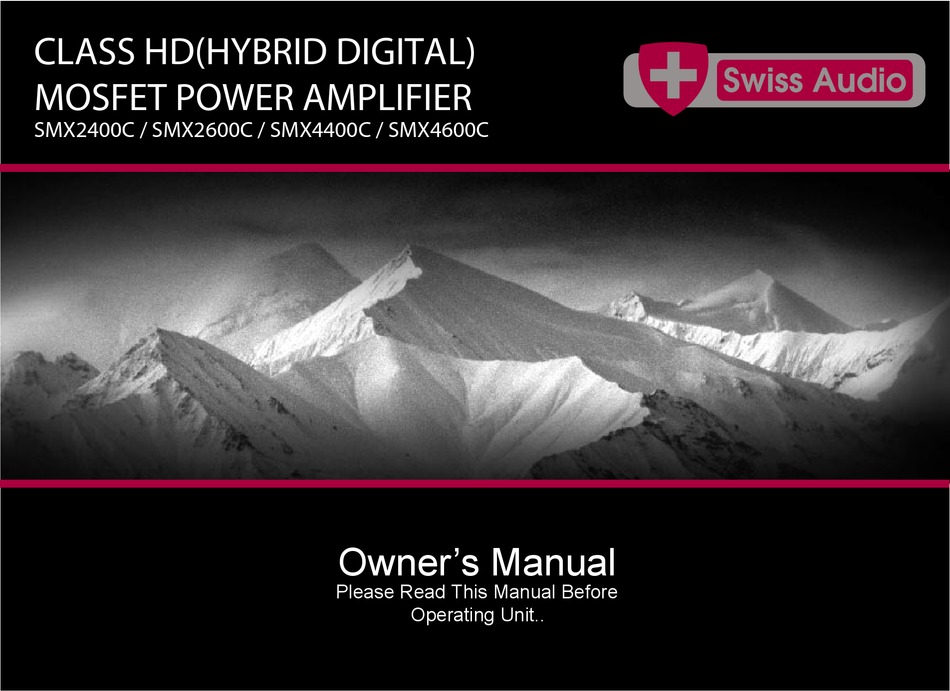

- Page 1 ����� ��������� �������� ������ ����� ��������� �������� � �������� � �������� � �������� Owner’s Manual Please Read This Manual Before Operating Unit..
-
Page 3: Table Of Contents
Table of Contents Introduction........................3 Features And Specifications..................4 Controls & Functions....................5 - 12 Planning & Mounting Your System................13 Wiring Diagrams....................14 - 16 Adjusting & Tuning.......................17 Troubleshooting......................18 Warning / Disclaimer....................19 Warranty.......................20 - 21 Notes..........................22... -
Page 4: Introduction
The classic silver-faced finish and famous Swiss Audio logo have captured the eyes and ears of enthusiast worldwide to push Swiss Audio to a new plateau of car audio design. Swiss Audio Products have a proven track record which is now worldwide. -
Page 5: Features And Specifications
FEATURES AND SPECIFICATIONS Dimensions (inches) Features and Specificatins SMX2400C: 6.60” (W) x 2” (H) x 9.45” (L) Full Range Hybrid Digital Power Amplifier SMX2600C: 6.60” (W) x 2” (H) x 11.42” (L) Full Variable HPF / LPF X – Over (50 – 250Hz) ... -
Page 6: Controls & Functions
CONTROLS & FUNCTIONS Controls & Functions SMX24OOC... - Page 7 CONTROLS & FUNCTIONS Controls & Functions SMX26OOC...
- Page 8 CONTROLS & FUNCTIONS Controls & Functions SMX4400C...
- Page 9 CONTROLS & FUNCTIONS Controls & Functions SMX46OOC...
- Page 10 CONTROLS & FUNCTIONS This control adjusts the amplifier’s input sensitivity. Input sensitivity is variable from 200 Millivolts to 8 volts. Clockwise increases sensitivity. Counterclockwise decreases sensitivity. This know is not a volume control for the amplifier. The amplifier can be driven to full power with a wide range of signals levels. A lower signal level will require increased sensitivity for full power.
- Page 11 CONTROLS & FUNCTIONS The LINE OUT allows you to build multiple amplifier systems without having to use splitter cords to distribute the signal. Now it is simply a matter of bringing one set of RCA into the first amplifier, then using the LINE OUT RCA jacks as the feed to the next amplifier.
- Page 12 CONTROLS & FUNCTIONS POWER: This GREEN LED will illuminate when the amplifier is turned “ON”. If it fails to illuminate, check the power connec- tions to the Amplifier and fuses. PROTECTION: The amplifier protection circuitry will disable the amplifier If there is an overload, short circuit, or if extremely high temperature conditions are detected.
- Page 13 CONTROLS & FUNCTIONS Due to the power requirements of the Amplifier, this connection should be made directly to the positive(+) terminal of the battery. For safety measure, install an in - line fuse holder (Not Included) as close to the battery positive(+) terminal as possible with an ampere rating not to exceed total value of fuses in Amp.
-
Page 14: Planning & Mounting Your System
PLANNING & MOUNTING YOUR SYSTEM The mounting position of your Amplifier will have a great effect on its ability to dissipate the heat generated during normal operation. It has an ample heat sink for heat dissipation, and is also designed with a thermal shutdown circuit (for heat protection) circuit. -
Page 15: Wiring Diagrams
WIRING DIAGRAM SMX2400C / SMX2600C... -
Page 16: Wiring Diagrams
Wiring Diagrams SMX4400C / SMX4600C... -
Page 17: Wiring Diagrams
Wiring Diagrams SMX4400C / SMX4600C... -
Page 18: Adjusting & Tuning
ADJUSTING & TUNING Tuning on The Amplifier The amplifier automatically turns on a few seconds after you turn your vehicle’s ignition switch to ACC or ON or turn on your auto sound system, depending on how you wire the system. The POWER indicator on the top of the amplifier lights up when the amplifier is on. Important: Your amplifier requires 30 amps or more of power from your vehicle’s battery during operation. -
Page 19: Troubleshooting
TROUBLESHOOTING SYMPTOMS CHECK REMEDY NO SOUND Is the power LED illuminated? Check fuses in amplifier. (NO) Be sure Turn - on lead is connected Check signal leads. Check gain control. Check Tuner / Deck volume level. Clean contacts on fuse holders. Is the Diagnostic LED Check for speaker short or amplifier overheating. -
Page 20: Warning / Disclaimer
IMPORTANT: Never cut any metal that is an integral part of the vehicle's safety or structural support system. If you are unsure, it is best to have the product professionally installed by an Authorized Swiss Audio Dealer. Never sacrifice your safety for sound. -
Page 21: Warranty
Swiss Audio, Inc. 6. If it becomes necessary to send the product or any defective part to Swiss Audio, Inc. or an authorized service station, the product must be shipped in its original or equivalent carton, fully insured, with shipping charges prepaid. -
Page 22: Warranty
Swiss Audio, Inc. 6. If it becomes necessary to send the product or any defective part to Swiss Audio, Inc. or an authorized service station, the product must be shipped in its original or equivalent carton, fully insured, with shipping charges prepaid. -
Page 23: Notes
NOTES __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________... - Page 24 SWISS AUDIO INCORPORATION 114 South Berry Street Brea, California 92821 Phone: (714)988-0380 Fax: (714)988-0381 www.swissaudioinc.com...
