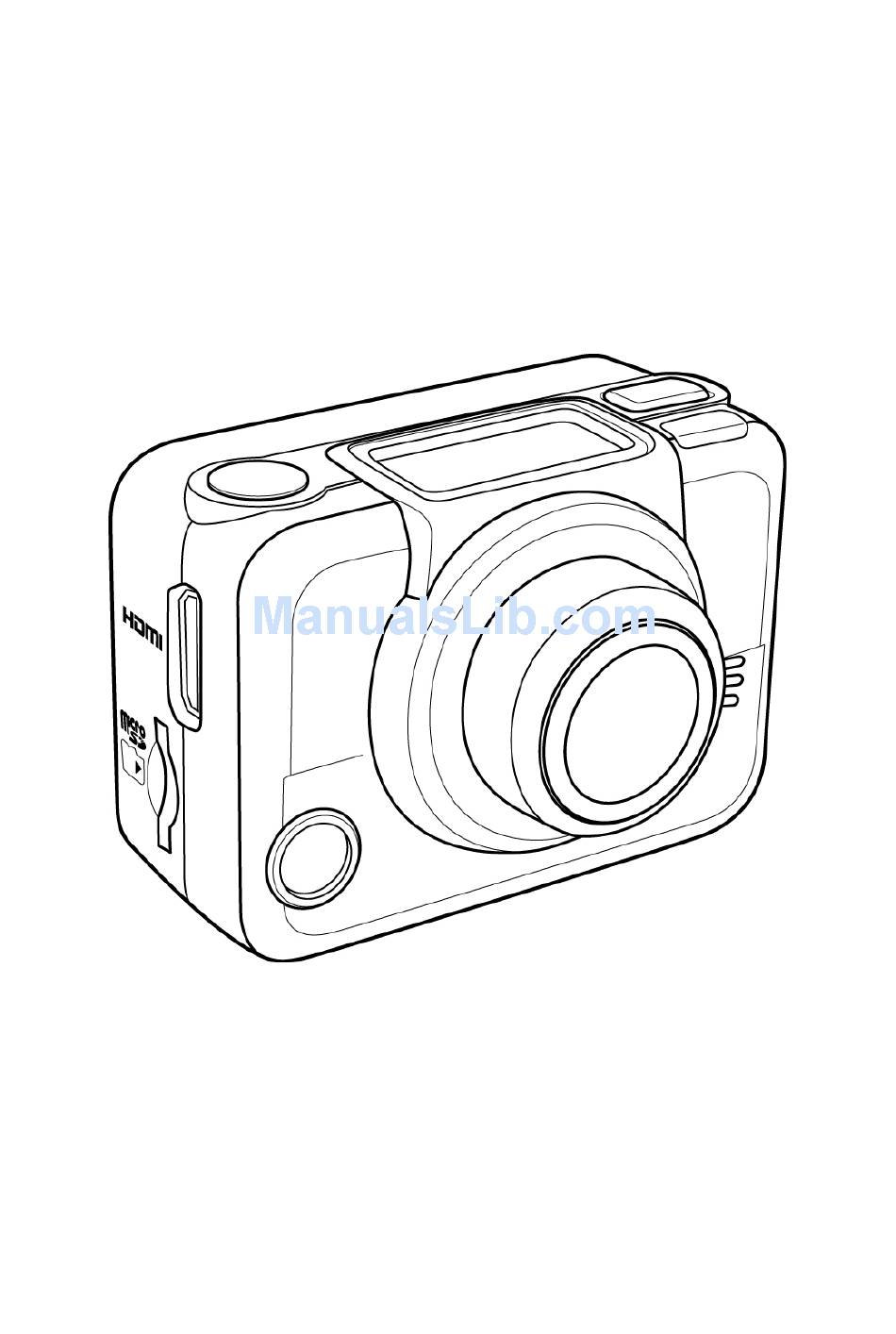

  • Page 1 IronX HD Camcorder DXG-5G9V HD User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents About this manual ............iv Copyright ..............iv Precautions ..............v Operating conditions..........vi Notes on Waterproof Case..........vii Before You Start............. x Introducing the Camcorder ......1 System Requirements........... 1 Features .............. 1 Unpacking the Camcorder........2 About the Camcorder........... 6 1.4.1 Camcorder Views........
  • Page 3 Connecting to PC (Micro USB Cable) ....18 Capturing Videos and Photos....19 Recording Videos..........19 Taking Photos............ 19 3.2.1 WiFi............20 3.2.2 Burst Shooting ........20 3.2.3 Time Lapse Shooting......21 3.2.4 Self-Timer..........21 Adjusting the Settings ......22 Video Resolution ..........24 Field of View (FOV) ..........
  • Page 4 5.1.1 Using the Waterproof Case....41 5.1.2 Changing the T Tip Adapter....42 5.1.3 Changing the Housing Back Door..43 Velcro Strap ............43 Assembling the Camcorder Accessories ..... 44 RF Wrist Strap Remote Control......45 Appendix............47 Specifications .............. 47 Troubleshooting ............

  • Page 5: About This Manual

    Preface Congratulations on your purchase of this advanced camcorder. Ensure that you read this manual carefully and keep it in a safe place for future reference. About this manual Every effort has been made to ensure that the contents of this manual are correct and up to date.

  • Page 6: Precautions

    Precautions General precautions Do not store the product in dusty, dirty, or sandy areas, as its  components may be damaged. Do not store the product in a hot environment. High  temperatures can shorten the life of electronic devices, damage batteries and warp or melt certain plastics.

  • Page 7: Operating Conditions

    Operating conditions This camcorder is designed for use in temperatures ranging  from 0°C to 40°C (32°F to 104°F). Do not use or keep the camcorder in the following areas:  - In areas subject to direct sunlight - In areas subject to high humidity or dust - Near air conditioners, heaters, or other areas subject to temperature extremes - Inside of a closed vehicle, especially one parked in the sun.

  • Page 8: Notes On Waterproof Case

    Notes on Waterproof Case Waterproof Case performance The waterproof case performance is equivalent to IPX8  (60m/1hr). Underwater time limit: Do not use the waterproof case  underwater for more than 60 minutes and 60 meters to ensure water resistance. The waterproof case is not dust-proof.
  • Page 9 Notes for general use: Avoid opening or closing the waterproof case near the water’s  edge (sea, lake, beach, lake, etc.). Do not open or close the waterproof case lock with wet hands, or hands with sand or dust. The accessories (batteries, etc.) used with the camcorder are ...
  • Page 10 Do not bump or knock the waterproof case underwater,  otherwise the lock may open. Notes on waterproof case maintenance The waterproof of sealing material is replaceable for a fee. The  material should be replaced once a year to maintain its water resistance.

  • Page 11: Before You Start

    Before You Start Take some test shots before you use your camcorder. Before taking pictures with this camcorder, test the camcorder beforehand to ensure that it functions properly. Any additional loss caused by the malfunction of this product (such as costs of photography or any loss of benefit generated by the photography) is not the responsibility of the manufacturer and no compensation will be given for it.

  • Page 12: Introducing The Camcorder

    1 Introducing the Camcorder Read this section to learn about the features and functions of the camcorder. This chapter also covers system requirements, package contents, and descriptions of the hardware components. 1.1 System Requirements The camcorder requires a PC with the following specifications for full HD 1080p 30fps and 720p 60fps playback: Windows ®...

  • Page 13: Unpacking The Camcorder

    External Waterproof Case/Standard Mounts/Wrist Remote  Smartphone App Supported  1.3 Unpacking the Camcorder The following items should be present in the package. If any item is missing or appears damaged, contact your dealer immediately. Camcorder Li-ion Battery User Manual CD-ROM Micro USB Cable HDMI Cable...
  • Page 14 Standard Accessories Waterproof Case Vented Housing Waterproof Backdoor Housing Backdoor T Tip Adapter Flat Adhesive Curved Adhesive Socket Socket Lens Cap Secure Tether Velcro Strap Swivel T Tip RF Wrist Strap Anti-fog Inserts Remote Control...
  • Page 15 Optional Accessories Diving Case Chest Mount Adhesive Anchor Bike Mount Adhesive Ball Head T Tip Ball Head T Tip with Suction Cup T Tip Mount (compatible with Swivel Camera Tip Vented Head GoPro mounts) with Suction Cup Mount Camera Holder Standard Tripod Adapter...
  • Page 16 Telescope Mount Rail Mount (Camouflaged (Camouflaged Sticker included) Sticker included)

  • Page 17: About The Camcorder

    1.4 About the Camcorder Refer to the following illustrations to familiarize yourself with the buttons and controls of this camcorder. 1.4.1 Camcorder Views Power / Mode OLED screen button Power/Status Shutter button LED 1 HDMI port Speaker Lens Micro SD card slot Power/Status/ Battery LED 2...

  • Page 18: Button Functions

    1.4.2 Button Functions  Press and hold for 3 seconds to turn the camcorder on or off.  Press to switch to different modes: Video, Power / Mode Photo, WiFi, Burst, Time Lapse, Button Self-timer, and Set mode.  In Set mode, press to scroll through menu items.

  • Page 19: Led Indicators

    1.4.3 LED Indicators The camcorder has four LED indicators. The Power/Status LEDs are located on top, on the bottom, and on the back of the camcorder. These LEDs are designed for users to see the status of the camcorder whichever way the camcorder is held or mounted.

  • Page 20: Getting Started

    2 Getting Started Read this section to learn how to start using the camcorder. This section covers basic functions such as switching on, installing the battery and micro SD card, and configuring preliminary settings. See later chapters for advanced functions. 2.1 Installing the Micro SD Card A micro SD card is required to capture photos and videos.

  • Page 21: Removing The Micro Sd Card

    2.1.1 Removing the Micro SD card Turn off the camcorder. With a fingertip, push the micro SD card to eject it from the slot. Remove the micro SD card. 2.2 Installing the Battery  Warning: Use only the supplied battery or a similar battery recommended by the manufacturer or the dealer.

  • Page 22: Removing The Battery

    Close the battery compartment cover. 2.2.1 Removing the battery Open the battery compartment cover. Pull the ribbon to remove the battery.

  • Page 23: Charging The Battery

    2.3 Charging the Battery You can charge the battery using the micro USB cable that came with the camcorder. Follow the steps below to charge the battery. Install the battery into the battery compartment. Plug the micro-USB connector to the USB port of your device.

  • Page 24: Turning On/ Off The Camcorder

    2.4 Turning ON/ OFF the Camcorder To turn on the camcorder, press the  Power button. The Power/Status LED indicator lights green for 3 seconds. To turn off the camcorder, press and  hold the Power button for 3 seconds.

  • Page 25: Oled Screen

    2.5 OLED Screen When the camcorder is turned on, the OLED screen displays the following information: Displays the current mode of the Current Mode camcorder. Use this mode to record videos. The icon also indicates the current video Video Mode recording settings.
  • Page 26 Use this mode to capture 10 continuous photos with one press of Burst Mode the Shutter button. The icon also indicates the current capture settings. In this mode, photos are continuously captured with a specific interval time when the Time Lapse Shutter button is pressed.
  • Page 27 Indicates the total number of videos and photos saved in the micro SD Number of Files card. Battery Indicates the battery capacity.  Note: The item 3 icon shown on the display will be automatically switched every three seconds.

  • Page 28: Changing Modes

    2.6 Changing Modes Press the Mode button repeatedly to switch modes. Video Mode Photo Mode WiFi Mode Burst Mode Setting Mode Self-Timer Mode Time Lapse Mode...

  • Page 29: Connecting To Tv (Hdmi Cable)

    2.7 Connecting to TV (HDMI Cable) You can also connect the camcorder to a TV using the HDMI cable (optional). 2.8 Connecting to PC (Micro USB Cable) Connect the camcorder to a computer with the micro USB cable provided as shown.

  • Page 30: Capturing Videos And Photos

    3 Capturing Videos and Photos 3.1 Recording Videos Your camcorder supports Dual Stream recording. When a video is recorded, two video files of different file size are automatically saved in the memory card. The smaller file is used to view videos using a smartphone.

  • Page 31: Wifi

    Wait for 30 seconds until the LED flashes to indicate Wi-Fi connection is established. On your smartphone, enable Wi-Fi connection, then search and connect to the Wi-Fi network IRONX. When prompted for a password, enter the default password “1234567890”. Use the IRON-X app to view videos and photos from your camcorder.

  • Page 32: Time Lapse Shooting

    3.2.3 Time Lapse Shooting This feature allows you to continuously capture photos with one press of the Shutter button at the preset interval time (1/3/5/10/30/60 seconds). Shooting only stops when the Shutter button is pressed again. Those continuous shots are combined and saved into one video automatically.

  • Page 33: Adjusting The Settings

    4 Adjusting the Settings To adjust the camcorder settings, press the Mode button repeatedly to switch to Set mode and then press the Shutter button to confirm. The screen below is displayed: Select SETUP to adjust capture SETUP Menu settings. Video Select to adjust the video resolution.
  • Page 34 Select MORE to adjust basic camera MORE Menu settings. Select to set the direction of the Up/Down OSD screen display. Select to turn the LED on or off. Select to adjust the screen Bright brightness. Beep Select to adjust the beep volume. Select to set the time for the camcorder to automatically turn off Auto-Off...

  • Page 35: Video Resolution

    4.1 Video Resolution Your camcorder supports Dual Stream recording. When a video is recorded, two video files of different file size are automatically saved in the memory card. The smaller file is used to view videos using a smartphone. The camcorder captures photos with a fixed resolution of 5M and supports three resolution options for videos.

  • Page 36: Field Of View (Fov)

    16:9 HD video, 720P (1280x720, 60fps) Press the Shutter button to confirm. To exit the menu, press the Mode button repeatedly until the EXIT screen appears. Press the Shutter button to exit SET mode. 4.2 Field of View (FOV) This menu allows you to select the view angle of the camcorder lens.

  • Page 37: Shooting Interval

    Press the Mode button to select ULTRA or WIDE. Ultra wide angle lens Wide angle lens Press the Shutter button to confirm. To exit the menu, press the Mode button repeatedly until the EXIT screen appears. 10. Press the Shutter button to exit SET mode.

  • Page 38: Up/Down

    Press the Shutter button to enter the SETUP menu. Press the Mode button to highlight LAPSE. Press the Shutter button to enter the LAPSE submenu. Press the Mode button repeatedly to scroll through the shooting interval options: 1 SEC, 3 SEC, 5 SEC, 10 SEC, 30 SEC, and 60 SEC.

  • Page 39: Delete

    Press the Mode button to highlight SETUP. Press the Shutter button to enter the SETUP menu. Press the Mode button to highlight UP/DOWN. Press the Shutter button to enter the UP/DOWN submenu. Press the Mode button to select ON or OFF. Press the Shutter button to confirm.
  • Page 40 Press the Mode button to highlight SETUP. Press the Shutter button to enter the SETUP menu. Press the Mode button repeatedly to highlight DELETE. Press the Shutter button to enter the DELETE submenu. 10. Press the Mode button repeatedly to scroll through the delete options.
  • Page 41 10. To exit the menu, press the Mode button repeatedly until the EXIT screen appears. 11. Press the Shutter button to exit SET mode.

  • Page 42: Osd Up/Down

    4.6 OSD Up/Down This menu allows you to display the OLED screen upside down. Do the following to enable this feature. Press the Mode button repeatedly to change to SET mode. Press the Shutter button to enter SET mode. Press the Shutter button to enter the MORE menu. Press the Shutter button to enter the UP/DOWN submenu.

  • Page 43: Led

    4.7 LED This menu allows you to turn the LED on or off. Do the following to turn the LED on or off. Press the Mode button repeatedly to change to SET mode. Press the Shutter button to enter SET mode. Press the Shutter button to enter the MORE menu.

  • Page 44: Brightness

    4.8 Brightness This menu allows you to adjust the OLED screen brightness. Do the following to adjust the screen brightness. Press the Mode button repeatedly to change to SET mode. Press the Shutter button to enter SET mode. Press the Shutter button to enter the MORE menu. Press the Mode button repeatedly to highlight BRIGHT.

  • Page 45: Beep

    4.9 Beep This menu allows you to enable or disable the beep sound when you press the Power / Mode or Shutter buttons. Do the following to enable or disable the beep sound. Press the Mode button repeatedly to change to SET mode.

  • Page 46: Auto-Off

    To exit the menu, press the Mode button repeatedly until the EXIT screen appears. Press the Shutter button to exit SET mode. 4.10 Auto-Off This menu allows you to program the camcorder to automatically turn off after being idle for a specific period of time, or you can set the setting to OFF to keep the camcorder on until you manually turn it off.

  • Page 47: Date And Time

    Press the Shutter button to confirm. To exit the menu, press the Mode button repeatedly until the EXIT screen appears. Press the Shutter button to exit SET mode. 4.11 Date and Time This menu allows you to set the camcorder date and time settings. Do the following to set the camcorder date and time.
  • Page 48 When done, press the Mode button to go to the month field. Month Year Hour Minute Press the Shutter button repeatedly to adjust the month value, and then press the Mode button to go to the day field. Press the Shutter button repeatedly to adjust the day value, and then press the Mode button to go to the hour field.
  • Page 49 4.12 RF This menu allows you to pair your camcorder with the RF wrist strap remote control (optional accessory). When the devices are paired, you can record videos or capture photos by pressing the corresponding buttons on the RF wrist strap remote control. Do the following to pair your RF wrist strap remote control.

  • Page 50: Factory Default

    Press both the video and photo buttons on your RF wrist strap remote control to process pairing. When the red LED on the RF wrist strap remote control flash once, pairing is complete. To exit the menu, press the Mode button repeatedly until the EXIT screen appears.
  • Page 51 Press the Shutter button to enter the DEFAULT submenu. Press the Mode button to select √. Press the Shutter button to confirm. To exit the menu, press the Mode button repeatedly until the EXIT screen appears. Press the Shutter button to exit SET mode.

  • Page 52: Using The Accessories

    5 Using the Accessories The camcorder comes with rugged accessories for all your sporting needs. 5.1 Waterproof Case The waterproof case allows you to take underwater shots or use it with the surface mount, bike mount, or chest strap to capture other water sports activities.

  • Page 53: Changing The T Tip Adapter

    Secure the waterproof case lock. The waterproof case can be used with other accessories such as the swivel T tip, bike mount, chest mount, head mount, etc. 5.1.2 Changing the T Tip Adapter Depending on the accessories that you want to use with the case, the T tip adapter may be detached and attached to another housing back door or location.

  • Page 54: Changing The Housing Back Door

    5.1.3 Changing the Housing Back Door Depending on the accessories that you want to use with the case, you may need to change the housing back door. Two back doors are included in the standard package: the waterproof housing back door, and the vented housing back door.

  • Page 55: Assembling The Camcorder Accessories

    5.3 Assembling the Camcorder Accessories Lock the T tip adapter to the T tip of the adjoining accessories to install them to your camcorder.

  • Page 56: Rf Wrist Strap Remote Control

    5.4 RF Wrist Strap Remote Control Before using the RF wrist strap remote control, you must pair it with the camcorder. Do the following to pair your RF wrist strap remote control. On the camcorder, press the Mode button repeatedly to change to SET mode.
  • Page 57 Press the Video button to start and stop video recording. To take photos, press the Photo button.  Note 1: To take photos using burst mode, time lapse, or self-timer, switch to the respective mode on your camcorder and then press the Photo button on your RF wrist strap remote control.

  • Page 58: Appendix

    Appendix Specifications General Imaging sensor 1/2.5” CMOS 5.0 Megapixel Sensor Active pixels 5.0 Megapixel Storage media Internal: Built-in 256MB Flash Memory microSD Card, SDHC compatible (up to SDHC 32GB Class6) Sensor sensitivity Auto Camera Optics Fixed lens Wide: F2.8, f=2.5mm 110°/1080p, 150°/720p, 162°/960p, 165°/ 5M Photo Focus range...
  • Page 59 General EV Compensation -2.0EV ~ +2.0EV (Auto) PC interface USB 2.0 (High Speed) Wireless IEEE 802.11 b/g/n TV out format HDMI Shutter speed Still: 1/30 ~ 1/4000 sec. Video: 1/30 ~ 1/2000 sec. Auto power off 1min / 3min / 5min / 10min / 30min / 60min / Off Power supply Rechargeable 1130 mAh Li-ion Battery...

  • Page 60: Troubleshooting

    Troubleshooting Problem Possible Cause Solution The battery LED The battery is almost Replace with a new is flashing red. used up. battery or charge the battery. Nothing happens The Micro SD card Transfer the Micro SD when the Shutter is full. You cannot card files to the button is pressed.

  • Page 61: Fcc Statement

    FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 62 Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

  • Page 63: Trademarks And Licenses

    Trademarks and licenses SDHC Logo is a trademark of SD-3C, L...
