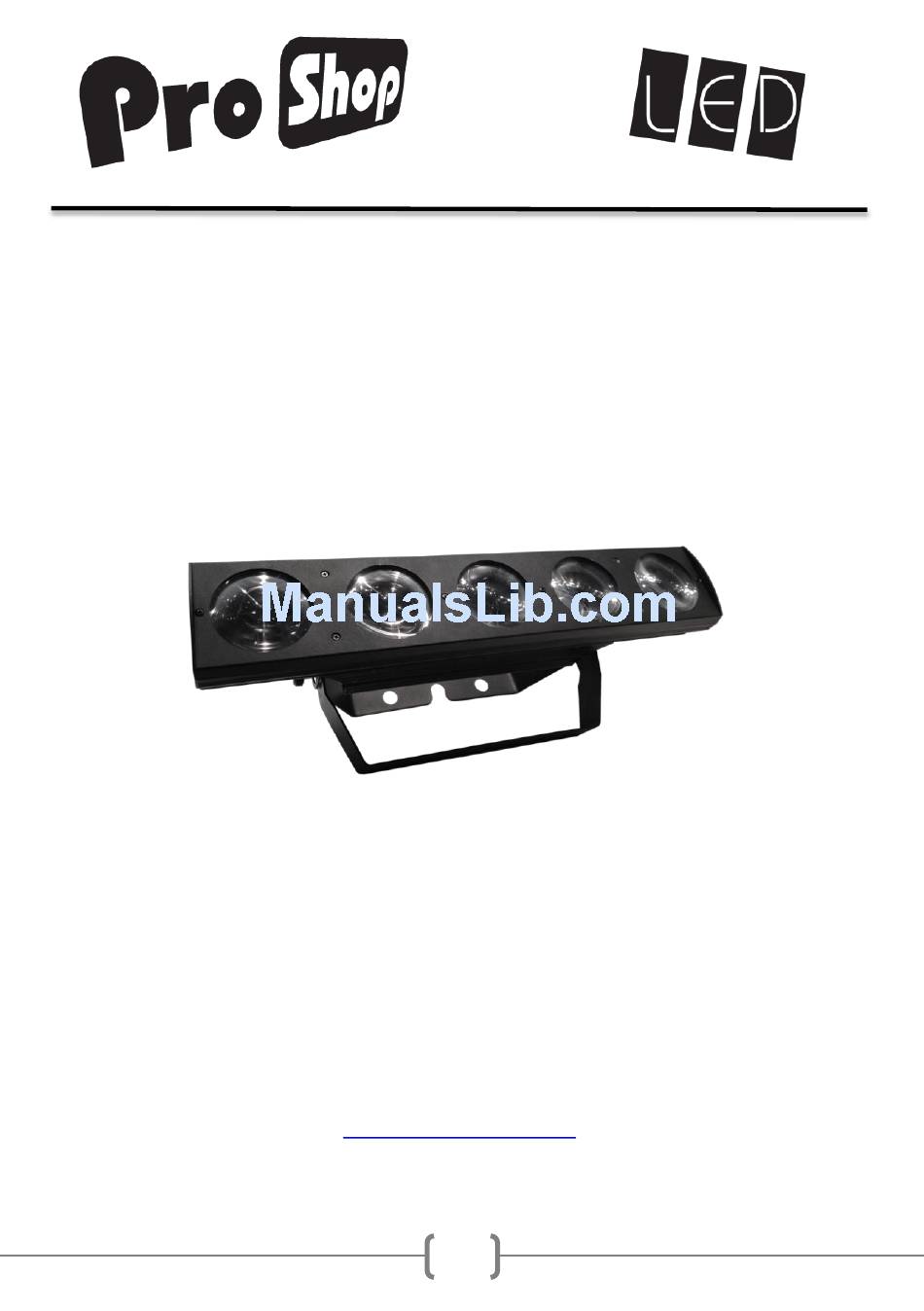

Page 1: User Manual
LED Diamond Beam 5 User Manual LED Diamond Beam 5 5 x 7 watt LEDS www.showtech.com.au... -
Page 2: Table Of Contents
LED Diamond Beam 5 Table of Contents 1. Safety instructions…………………………………………………………3 1.1 Overhead rigging …………………………………………………….4 1.2 Power Connection …………………………………………………..6 1.3 Cleaning and Maintenance ……………………………………..6 2. Menu Navigation ............7 3. DMX Allocation ..............10 4. Technical Specifications ..........11... -
Page 3: Safety Instructions
LED Diamond Beam 5 1. Safety Instructions FOR SAFE AND EFFICIENT OPERATION Be careful with heat and extreme temperature. Avoid exposing it to direct rays of sun near a heating appliance. Do not put it in a temperature below 41°F/5°C, or exceeding 95°F/35°C. -
Page 4: Overhead Rigging
LED Diamond Beam 5 When not using the unit for an extended period of time be sure to disconnect the plug form the receptacle. 1.1 . Overhead Rigging This item must be built in a way that it can hold 10 times more of its weight for 1 hour without causing any damages. -
Page 5: Led Diamond Beam
LED Diamond Beam 5 DANGER OF FIRE! When installing the device, make sure there is no highly-flammable material (decoration articles, etc) within a distance of min. 0.5m. Mount the projector with the mounting bracket to your trussing system using an appropriate clamp. -
Page 6: Power Connection
LED Diamond Beam 5 1.2. Power Connection !! CAUTION !! Never leave this device running unattended!! Every person that is involved with this item has to be qualified!! Connect item with main plug. The voltage and frequency must exactly be the same as stated on the device. -
Page 7: Menu Navigation
LED Diamond Beam 5 2.0 Menu navigation Menu Selection Options Extended Options Auto Show Auto Show 1 Auto Show Speed 0-100, slow- fast Auto Show 2 Allows the user to select in built auto show Auto Show 3 Auto Show 4... - Page 8 LED Diamond Beam 5 Auto Show 7 Auto Show 8 Auto Show 9 Auto Show 10 Auto Show 11 Auto Show 12 Dimmer Mode Dimmer Speed off Dimmer 1 Dimmer Speed Fast Allows the user to select from 4 options of dimming...
- Page 9 LED Diamond Beam 5 DMX Channel 4 Channel Mode 1 pixel + shutter + macros/speed Adjust the DMX mode 5 Channel Mode 5 pixels on the unit Master / Slave Master Master Mode Allows the unit to be set in...
-
Page 10: Dmx Allocation
LED Diamond Beam 5 3.0 DMX Allocation 000-255 Pixels 000-010 No Function Shutter 011-255 Strobe Slow to Fast 000-010 No Function 011-030 Chase 1 031-050 Chase 2 051-070 Chase 3 071-090 Chase 4 091-110 Chase 5 111-130 Chase 6 Chase... -
Page 11: Technical Specifications
LED Diamond Beam 5 4.0 Technical Specifications Power in: 100-240 VAC, 50/60Hz Power consumption: 45 W LED type: Cree 7W Cool White Number of LEDs: 5 pcs Beam angle: 125° Dimensions (L x W x H): 500 x 98 x 217 mm...
