Warning:
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property dam-
age. Refer to this manual. For as-
sistance or additional information
consult a qualified installer, service
What To Do If You Smell Gas:
Do not try to light any appliance.
•
•
Do not touch any electrical switch; do not use any phone in
your building.
•
Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
For Your Safety:
Do not store or use
gasoline or other
flammable vapors
and liquids in the
vicinity of this or any

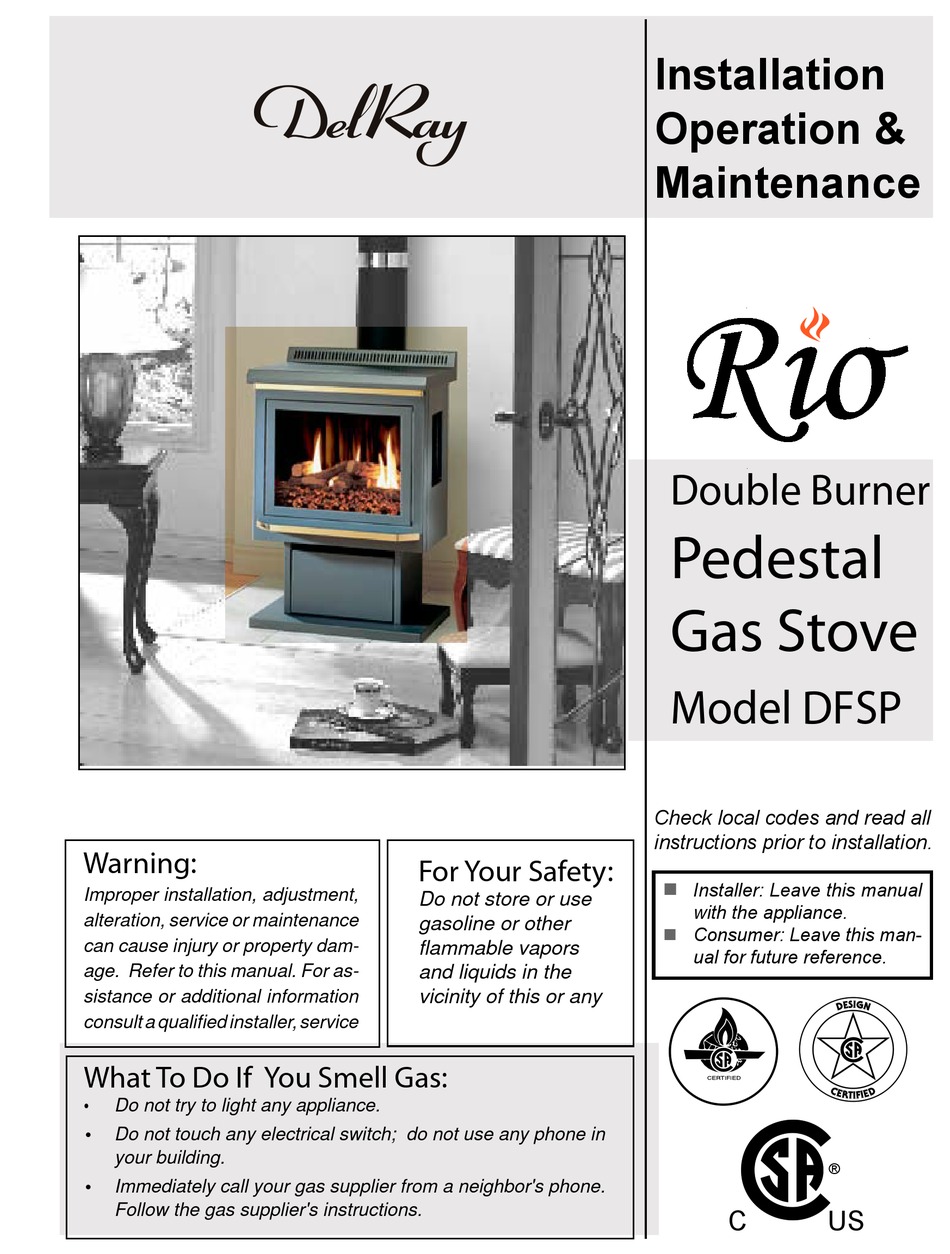

Installation
Operation &
Maintenance
Double Burner
Pedestal
Gas Stove
Model DFSP
Check local codes and read all
instructions prior to installation.
Installer: Leave this manual
with the appliance.
Consumer: Leave this man-
ual for future reference.
®
C
US
Advertisement
Table of Contents
Related Manuals for DelRay DFSP
Summary of Contents for DelRay DFSP
-
Page 1: For Your Safety
Installation Operation & Maintenance Double Burner Pedestal Gas Stove Model DFSP Check local codes and read all instructions prior to installation. Warning: For Your Safety: Installer: Leave this manual Improper installation, adjustment, Do not store or use with the appliance. -
Page 2: Table Of Contents
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Introduction Table Of Contents About the Rio Pedestal Stove: Thank you for purchasing the Rio Pedestal Stove, and choosing a Introduction ................2 Delray Gas Product. This Rio Stove features a Double Burner with a Installation hi-lo adjustable control. Choosing a Location ............3 This Rio Stove is certified for use with Montigo Direct Vent Compo- Installing the Gasline ............4 nents, and for use with standard 4" B-Vent when using our optional conversion kit (part number FSTK03). The Rio Pedestal Stove is Direct Vent Installation ........... 4 certified as a heating appliance by CGA and AGA tothe Vented Gas General Requirements ........4 Fireplace Heater standard (ANSI Z21.88-2005 · CGA 2.33-2005) -
Page 3: Installation
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Installation Choosing a Location The fireplace may be installed in any location that maintains clear- Clearances ances to air conditioning ducts, electrical wiring and plumbing. Safety, The Rio Pedestal Stove's clearances to combustible materials are: as well as efficiency of operation, must be considered when selecting the fireplace location. Try to select a location that does not interfere A - Back 1 ½" with room traffic, has adequate ventilation, and offers an accessible B - Side 10 ½" pathway for vent installation. Refer to page 4 - Vent Installation for C - Floor 0" more information. D - Top* 42" The Rio's dimensions are shown below: * Clearance from the top of the stove to a combustible ceiling. 10 7/8 34 1/2 Front View 17 5/8 Figure 3. -
Page 4: Installing The Gasline
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Installation Direct Vent Installing The Gas Line Direct Vent Installation The gas line must be installed before completing the installation. This section covers the installation of venting and terminations. Natural Gas requires a minimum inlet gas supply pressure of 5.5" Installation Requirements W.C. & a manifold pressure of 3.5" W.C. Propane Gas requires a Rio Stoves are certified for use with Montigo Standard Series (4" minimum inlet gas supply pressure of 11" W.C. & a manifold pressure / 7") venting components and approved Vent Kits (listed below) of 10" W.C. Provision must also be made for a 1/8" N.P.T. plugged Minimum 1" clearance to combustibles required for vent pipes tapping and be accessible for test gauge connection immediately Use only certified Montigo vent components. (Use of other parts upstream of the gas supply controls to the appliance. The stove is... -
Page 5: Rear Vent Installations
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Installation Direct Vent Installing Terminations with Built-In Frames MTO-3 25" 1. Frame the termination opening to 10" x 10". 2. Fasten the termination to the studs using a minimum of 4 Installing Rio 'Snorkel' Terminations Figure 6. R ear Vent installation, showing the required components See Rear Vent Venting Runs section for Snorkel Installations. and the height of the stove's flue collar. - Page 6 DFSP Rio Pedestal Stove Quality Gas Products by Montigo Installation Direct Vent Slide the inner wall plate back against the wall. Level the plate, making sure it completely covers the opening in the wall, and fas- ten it in place using four wood screws. (Note that the heat shield Snorkel connected to the plate is not concentric -- its top edge should sit close to the inside top edge of the 11" x 11" hole.) Slide the Cover Plate onto the inner wall plate and fasten it with one black sheet metal screw on each side. 3. The (outer) wall plate is used to mount the snorkel-type termina- tion to the building exterior. Position the wall plate over the 11 " x 11" hole. Push the heat shield portion into the opening so that it mates with the heat shield on the inner wall plate. This will properly position the wall plate over the opening. (Refer to figure 8). FST11 Level the wall plate. It may be installed either over top of the exterior cladding (brick, stucco, siding, etc.), or against the exterior sheathing. If installing it directly on the exterior sheathing, you must cut away the siding or other fascia by tracing an outline Figure 9. A ttaching the snorkel termination to the outer wall plate.
-
Page 7: Top Vent Through-The-Wall Installations
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Installation Direct Vent Top Vent Venting Runs For the Rio Pedestal Stove there are two types of Top Vent (DV) A) Through-the-Wall (Horizontal) Venting Option installations: A) Horizontal (Through-The-Wall) Installations and B) The horizontal venting option requires an FSTK02 Vent Kit. Figure 13 Vertical (Through-The-Roof) Installations. shows the components which are used to attain different vent heights. Allowable Vent Runs Additional stove pipe or Montigo Standard Series vent components may be used to increase the vent run, as long as the run still falls Before you install any venting, you must determine whether the within the limits set out in Figure 12. venting run will be acceptable. Unacceptable venting can affect the fireplace's combustion. Figure 12 shows various vent rises and the - Vertical Rise is measured corresponding number of 90° bends which can be made. from the center of the stove's flue collar to the center of the Vertical Rise 55 - 77" termination. - A - Top Vent Conversion Box (FST04) B - Std. Stove Pipe (FST11) -
Page 8: Top Vent Through-The-Roof Installations
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Installation Direct Vent B) Vertical (Through-The-Roof ) Venting Option When venting through the roof, use an FSTK04 Vent Kit. Additional 4. Install the first stove pipe onto the conversion box by sliding it over the flex pipe (refer to Figure 14). Install a spacer spring around the stove pipe or Montigo Standard Series vent components may be flex liner. Secure the pipe with at least two ½" hex screws spaced used to increase the vent run, as long as the run still falls within the approx. 3/4" from the joint. Slide the remaining vertical stove pipes limits set out in Figure 16. into place, without fastening them. Install a spacer spring inside Vertical Vent Requirements: each stove pipe section. Vertical terminations (Part # MVTK-1) must be installed: 5. Cut the horizontal stove pipe (FST11) to length. Slide it and the • minimum 2' above the highest point where the vent passes 90°elbow over the flex and onto the vertical pieces of stove pipe. through the roof Install the last spacer spring inside the horizontal section. Slide • minimum 6' from a mechanical air inlet the Decorative Wall Plate (Part # FST07) onto the horizontal sec- •... - Page 9 DFSP Rio Pedestal Stove Quality Gas Products by Montigo Installation Direct Vent Direct Vent Installing the Stove Pipe 8. Move the stove into position below the stove pipe. Slide the 1. Ensure that the intended pathway for the venting is clear.Try to bottom section of stove pipe down over the collar on the top vent position the stove midway between two joists to avoid having to conversion box. Install a spacer spring inside this section. cut them. Cut and frame a 11" x 11" hole in the ceiling and roof as required. 9. Slide the last section of stove pipe down over the bottom pipe. Ad- just the position of the stove pipes so thethat joints are all equally 2. Install the ceiling box as shown in Figure 17. Ensure that there spaced. Ensure that there is at least 1 1/2" overlap between each is at least 2" clearance from the bottom of the box to the ceiling. section. Fasten in place with 2 screws per side. 10. Secure each stove pipe joint with at least three ½" hex screws 3. Slide the MEXT-2 down into position so the male end protrudes spaced approx. 3/4" from the joint (so that the brass ring will into the room below the ceiling box as shown in Figure 17 and cover both the joint and the screws). secure it temporarily with an MSPXT-7 support plate and ring. 11. Finishing...
-
Page 10: B-Vent Installation
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Installation B-Vent B-Vent Installation This Rio Stove is certified for use with standard B-Vent, when in- stalled using Montigo's optional B-Vent Conversion Kit (part # FSTK- 03), and provided the following steps are carefully followed. Stove Spill switch Pipe, Liner, and B-Vent are not included with the kit. Refer to Step 5. When vented with standard 4" B-Vent, the B-Vent is installed directly onto the draft hood assembly. Covering the B-vent with stove pipe is optional for this installation. When vented using 4" flex liner, the flex must be covered with stove pipe. Refer to the current CAN/CGA B-149.1 and .2 or ANSI Z223.1-1988 Gas Installation Code for B-Vent installation regulations. 1. There are four relief pots on the back of the stove body. For B-Vent Installations only, these pots must be removed to provide Burner 'On/Off' adequate combustion air. (See Figure 20.) -
Page 11: Removing And Installing The Door
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Installation Removing and Installing Installing the Log Set the Door Installing the Logs: The double burner Rio Stove is supplied with six (6) fibre logs. Un- Removing the decorative door cover: pack the logs and handle them very carefully. The door cover is held in place by two clips at the top, and two pins 1. Remove the door cover and the glass door. on the botton. Locate the latch shown in figure 24 and pull down. While holding the latch down, pull the cover out at the bottom and Ember tray Back burner tube then downward until the clips at the top are clear. (See figure 24.) Front burner tube... -
Page 12: Wiring
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Installation Wiring for the optional Blower Kit Center logs The Rio Steel Stove may be equipped with an optional variable speed Back log blower kit (Part #RFK1080) for circulating additional heat into the Right log Left log living space. Installations in Canada which employ the blower kit must be electri- cally grounded in accordance with CSA C22.1 Canadian Electrical Code Part 1 and/or Local Codes. Installations in the USA which employ the blower kit must be grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70-1987. For more information see the Installation Guide included with the Front log blower kit. - Page 13 DFSP Rio Pedestal Stove Quality Gas Products by Montigo Operation - Continuous Pilot Models For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand. If you cannot reach your gas supplier, call the Fire De- When lighting the pilot, follow these instructions exactly. partment. C. Use only your hand to push in or turn the gas control knob. B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is...
-
Page 14: Lighting Instructions
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Operation - Intermittent Pilot (-I) Models For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. If you cannot reach your gas supplier, call the Fire A. This appliance is equipped with an ignition system that Department. lights the pilot burner automatically. Do not attempt to light the pilot by hand. -
Page 15: Operation
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Operation Maintenance Lighting Instructions CAUTIONS See pages 13 and 14. Fireplace gas control must be in the “OFF” position and pilot and main burners extinguished when cleaning appliance with a vacuum. Adjusting the Burner Doors and logs can get very hot. Handle only when cool. Raising or lowering the Flame Height Rio Stoves are equipped with an adjustable burner, allowing you to General raise or lower the flames. To adjust the flames, locate the black knob marked 'Flame Control', in the centre of thecontrol panel (See Figure Have the fireplace installation inspected yearly, including a visual 31). check of the vent system, the burner and the pilot flame. For your To raise the flame height, turn the black knob marked 'Flame convenience a 1/8" manifold pressure tap is supplied on the gas Control' counterclockwise. valve for a test gauge connection. See Figure 28. To lower the flame height, turn clockwise. - Page 16 DFSP Rio Pedestal Stove Quality Gas Products by Montigo Maintenance Troubleshooting Gas Control Valve HONEYWELL SV9500 /9600 Power Generator Troublshooting Sequence On/Off Switch NOTE: Before Troubleshooting, Familiarize Yourself With The Startup And Checkout Procedure. START INSET CHECK: - Turn Gas Supply Off - Line voltage power - Set thermostat to...
-
Page 17: Warranty
In order for any claim under this Warranty to be valid, The Companies must be notified of the claimed defect in writing or by telephone, as soon as reasonably possible after the defect is discovered. Claims against this Warranty in writing should include the date of installation, and a description of the defect. Other Rights Canadian Heating Products Inc. and/or Montigo DelRay Corp. reserves the right to make changes at any time, with- out notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Page 1 Part No. XG0509... -
Page 18: Accessories And Vent Components
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Appendix A - Accessories and Vent Components Accessories Item Description Quantity Order Code Wireless Remote Control RX-10 Millivolt Thermostat Programmable Millivolt Thermostat Non-programmable Variable Speed Blower Kit Includes heat sensor, variable speed control. RFK1080 Vent Kits Vent Components - Avail. Individually Item Description Quantity Part # Item... -
Page 19: A. Accessories And Vent Components
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Appendix A - Accessories and Vent Components Direct Vent - Through-the-Roof Kit Direct Vent - Rear Vent Kit Direct Vent - Through-the-Wall Kit Spare Parts List Part Description Part No. NG Gas Valve RGC1021 LP Gas Valve... -
Page 20: Termination Locations
DFSP Rio Pedestal Stove Quality Gas Products by Montigo Appendix B - Termination Locations A = clearance to the termination frame above grade, veranda, porch, deck, [*6 feet (1.8 m) minimum] or balcony [16 inches (41 cm) minimum] N = clearance above paved sidewalk or a paved driveway located on †... - Page 21 DFSP Rio Pedestal Stove Quality Gas Products by Montigo Appendix C - State of Massachusetts Amendment (Gas Fireplace / Equipment sold in the State of Massachusetts) 5.08: Modifications to NFPA-54, Chapter 10 (1) Revise NFPA-54 section 10.5.4.2 by adding a second exception as follows: Existing chimneys shall be permitted to have their use continued when a gas conversion burner is installed, and shall be equipped with a manually reset device that will automatically shut off the gas to the burner in the event of a sustained back-draft (2) Revise 10.8.3 by...
- Page 22 Quality Gas Products by Montigo XG0509 - 120507 Montigo Del Ray Corp. Canadian Heating Products Inc. Langley, BC V4W 4A1 Ferndale, WA 98248...
