Summary of Contents for Logic Controls SB9100 Series

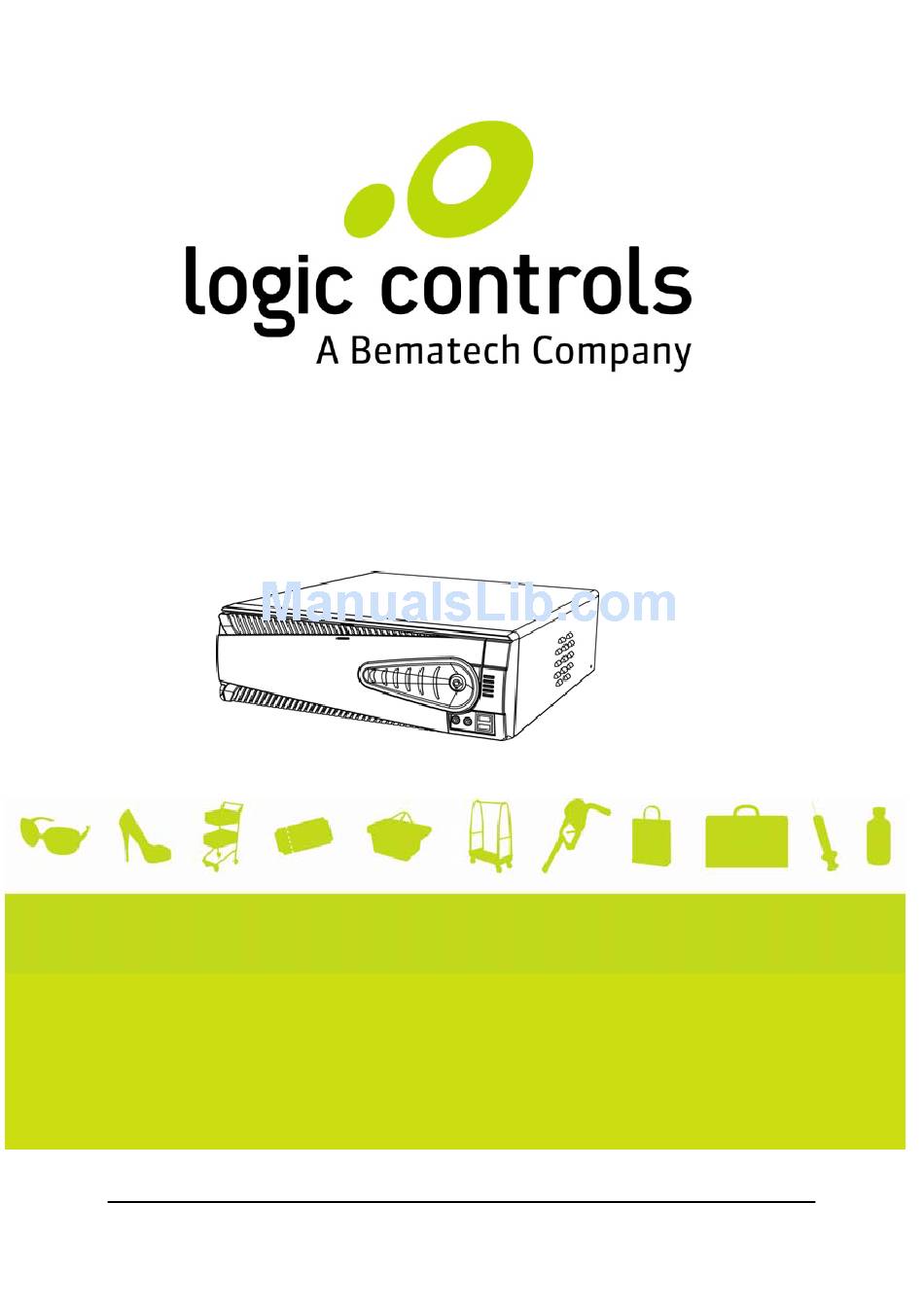

- Page 1 SB9100 User Manual...
- Page 3 Thank you for purchasing our SB9100 Series. This terminal offers highly enhanced features, with easy connection to various optional devices for optimum performance. This user manual describes how to setup and connect your terminal. © Copyright 2006 All rights reserved. This product and related documentation are protected by copyright and are distributed under licenses restricting their use, copying, and distribution. No part of this documentation may be reproduced in any form by any means without prior written authorization of the manufacturer and its licensors, if any. • Read the safety notices and the User Manual carefully before turning the product ...
- Page 4 • Keep this equipment from moisture and dust. • Place the equipment on a stable surface before setting it up. • If there is any of the following situation arise, notify a qualified service technician immediately: The power cord or plug is damaged. Liquid has been spilt on to the equipment. The equipment has been dropped and damaged. The equipment does not function normally. • Do not block any ventilation openings to prevent the equipment from overheat. • Do not leave the equipment in a non air‐conditioned environment where the storage temperature may go above 70°C (158°F), as this can cause damage to the equipment. e • Gently wipe screen with a clean soft hair lens brush, or a lint‐free cloth. • Do not apply pressure to the screen while cleaning • Do not spray any liquid directly onto the screen or the casing of the SB9100 Terminal • Chemical cleaners have been reported to cause damage on the screen of the SB9100 Terminal. • The technical descriptions and specifications of the equipment are subject to change without notice. • For safety reasons, wear gloves when assembling the product. Patent pending. ...
- Page 5 Contents This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received including interference that may cause undesirable operation. This equipment has been tested and found to comply within the limit of a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment ...
-
Page 6: Table Of Contents
Chapter 1 ......................1 Welcome ......................... 1 Overview of SB9100..................1 Front View....................2 Rear View ....................3 Connecting to a POS Terminal ..............4 Unpacking ....................4 Chapter 2 ......................4 Getting Started ...................... 5 Pre‐installation Notice..................5 Default Settings..................5 ... -
Page 7: Chapter 1
IP32 SB9100 series features a highly durable, rigorously tested proof design that is reliable and dependable in rugged environments. POSReady 2009/ Solution is recommended to be bundled with embedded solution WinXP Pro for high performance and other added values. Solution Environment Environmental friendly, RoHS compliant product. Protection The SB9100 has a longer overall system MTBF to provide a higher Higher Stability stability during operation. ... -
Page 8: Front View
Chapte1 — Welcome To open the front cover, press the cover release latch. Cover release latch DESCRIPTION 1 HDD bay 2 Power button 3 Key lock 4 LED status indicator 5 Two front access USB 2.0 ports 6 Headphone and microphone jacks 7 Compact flash card slot ... -
Page 9: Rear View
Chapter 1 - Welcome DESCRIPTION FUNCTION 1 12V DC Output Connects to a LCD 2 24V DC Output Connects to a POS Printer 3 LPT 1 Connects to a POS Printer. 4 LAN Port Connects to the LAN. 5 Cash Drawer Port Connects to a cash drawer (12V/24V Solenoid Type of COM6) 6 Microphone Jack Connects to a microphone. 7 Audio Line In/Out Connectors Connects to audio source / external speakers. 8 Analog VGA Port Connects to a POS LCD monitor. 9 Two USB Ports Connect to USB 2.0 device. 10 COM Ports 1 – 4 Connect to POS peripherals. ... -
Page 10: Connecting To A Pos Terminal
VGA Port on POS LCD Monitor VGA Cable VGA Port on POS PC Before setting up your SB9100, check that the package contains the following items. If any of the items are missing or damaged, contact your vendor immediately. SB9100 POS PC AC POWER CORD ACCESSORY ... -
Page 11: Chapter 2
Chapter 2 This chapter describes how to install the optional accessories on your SB9100 POS PC for optimum serviceability. Before you start installing your SB9100, please read the following notices carefully. The SB9100 features two PCI slots. Do not plug in or unplug any interior devices, such as memory module or any function card, when the ATX PSU is powered on. The LAN chipset uses Intel Pro family network adapter. The Terminal has be built‐in the PXE Boot ROM function within the BIOS to execute Boot ... -
Page 12: Limitations
Chapter 2 – Getting Started Output Voltage COM Port Average Max. Current PIN of COM1 5V / 0.5A, 12V / 0.5A 5V / 0.7A, 12V / 0.6A PIN of COM2 5V / 0.5A, 12V / 0.5A 5V / 0.7A, 12V / 0.6A PIN of COM3 5V / 0.5A, 12V / 0.5A 5V / 0.7A, 12V / 0.6A PIN of COM4 5V / 0.5A, 12V / 0.5A 5V / 0.7A, 12V / 0.6A We strongly recommend that you use the following add‐on devices to expand the utilities of your SB9100 POS PC. Add‐on Card Model No. Brand Remarks Type LAN Realtek RTL8139C/ D 10/100 Base T SIS SIS900 10/100 Base T D‐Link DFE‐530TX 10/100 Base T ... -
Page 13: Chapter 3
• A container to store the screws temporarily WARNING: Make sure that the power of your SB9100 POS PC is turned off before removing the chassis. You may need to install one or more add‐on card to expand the system capability in the future. The SB9100 POS PC includes two PCI slots for ... -
Page 14: Installing A Hard Disk Drive
Chapter 3 – System Upgrade WARNING: If you purchase a SB9100 POS PC without a hard disk drive, contact your dealer for system upgrade. You can increase the system memory for your SB9100 POS PC via onboard DDR Π SODIMM Socket. The SB9100 POS PC supports one bank of ... -
Page 15: Appendix
ITEM SPECIFICATION Model Name SB9100 Processor Intel Celeron / Dual‐Core / Core 2 Duo Processor (LGA775) Memory 240‐pin DDR2 RAM * 2, up to 4GB (533/667) System Chipset Intel 945GC+ICH7 BIOS Award BIOS with enhanced ACPI 1.0 PnP/APM/DMI/ESCD/PCI bus 2.1/ On Now/ DRAM ECC AGP 3D Intel Graphics Media Accelerator 950, On Board Graphic Max. Graphics Share Memory Up To 224MB Parallel Port One LPT port (SPP/EPP/ECP), IRQ and address selectable by BIOS setup Serial Port Total 4 COM ports on board, IRQ selectable by BIOS setup Output on 9th pin by jumper selector. Each voltage output with poly switch protector. USB Port 2 X USB 2.0 Ports, 2 X Powered USB Port (5V/24V) IDE or SATA 1 X IDE Port Port 2 X SATA Port PCI Slots Support 2 X PCI Slots DC Output DC 12V Output X 1 DC 24V Output X 1 Thermal One heat‐sink with Fan (Base on Fan Speed Control ... -
Page 16: Technical Information
Technical Information Appendix — ITEM SPECIFICATION Cash Drawer One cash drawer port with status sensor. Port (EPSON ESC Pin define) System Power ATX 250W Internal Power Supply. AC 100 to 240V Full Range. System Trigger System front side tact switch (ATX Trigger) below the LCD Control display with bottom. Ethernet Port Intel PRO 1000 Ethernet chip on board Intel Ethernet chips on board (10/100/1000 base‐ T) Audio AC97 CODEC on board Keyboard PS/2 Mouse PS/2 System Size 340mm (L) x 295mm (W) x 95mm (H) S/W DOS / Windows 2000 / XP / XPE / WEPOS / Vista/ Compatibility POSReady2009 / Windows 7 Operation 0°C to 40°C Temperature Storage ‐25°C to 70°C Temperature ... -
Page 17: Frequently Asked Questions (Faq)
Technical Information Appendix — Question 1: Why does the system appear unstable after updating BIOS? Answer: Load optimized defaults (or load SETUP Default) after flashing BIOS. If the system remains unstable, clear CMOS to solve the problem. Question 2: How do I clear CMOS? Answer: To clear CMOS, do the following: Turn off power and switch off the power adapter. Remove the jumper from clear CMOS 2‐3 PIN and insert the jumper to clear CMOS 1‐2 PIN. Remove the jumper from clear CMOS 1‐2 PIN and re‐insert the jumper to clear CMOS 2‐3 PIN. Switch on the power again. Press Delete to enter CMOS setting and load optimized defaults. Save changes and reboot the system. Question 3: How to use the Boot Menu? Answer: To use the Boot Menu, do the following: Press F9 to enter the Boot Menu. Select the Boot device from the Boot Menu. ... -
Page 18: Troubleshooting
Technical Information Appendix — WARNING: If you encounter any trouble during boot up, please follow the troubleshooting procedures below to solve the problem. START Turn off the power and unplug the AC power cable. Remove all the add‐on cards, and cables from motherboard. Isolate the short pin. Has the motherboard shorted out? Failure has been excluded. ... - Page 19 Technical Information Appendix — The problem may be caused by power supply, CPU, Is the LED on? Is the CPU fan running? memory, CPU, or memory socket. Failure has been excluded. The VGA card, VGA card slot, or the Is there any image on the display? monitor may be defective. Failure has been excluded. Turn off the system and reboot after the keyboard and the mouse are plugged in. The keyboard or the ...
