EntryVue AC-500 Keypad User Manual
EM Metal Password Access Controller
Please read this manual carefully before Installation

2. Features

Low power consumption: less than 30mA standby current
Luminous keyboard: keyboard can be operated at night
User capacity: support 2,000 users
Independent password: open the door with password which
is irrelevant to the access card
User modified password: Users can revise the door
password
Search speed: charge less than 0.1 S.
Output short circuit protection: electric lock or alarm output
circuit within 100 µS when shut down automatically output
Wiegand output: With Wiegand output interface Wg26
card number or Wg4 buttons output
Usable keyboard delete card number: After card is lost,
usable keyboard delete card horoughly eliminate safety
lapses
The demolition alarm: Illegal dismantling machine, built-in
alarm sound buzzer
The bell button and interface: key and circuit segregation,
external any the doorbell.

3. Technical parameters

Work Voltage AC&DC9-28V
Static Current ≤30mA
Reading Range 3 8cm
Capacity: 2000 users
Ambient Temperature -25
Ambient Humidity 10% 90%
Electricity lock output ≤3A
Alarm output ≤20A
Output short circuit protection time ≤100µS
Open time 0 ~ 99 seconds (adjustable)
Size 120 *80*25mm
60

1. Product Profile

The product is Contact-less inductive card Metal
Password Access Controller According to the model, it
respectively supports EM, HID, MIFARE three cards, it is
one of the most advanced stand alone access
controllers.
It is designed with unique metal exterior, dexterity
keyboard panel operation, built-in high-grade
microprocessors, strong anti-interference ability. Safety
and reliability are extremely high, it can provide
powerful security for 2,000 users.
It contains strong functions, such as low power
consumption, luminous keyboard, independent
passwords, wiegand output, output short circuit
protection, door magnetic alarm, prevent demolition
alarm, exit button, doorbell interface, level of security
Settings, etc.
The product is widely used in homes, offices, residential
areas and other public places.

4. Administrator operation

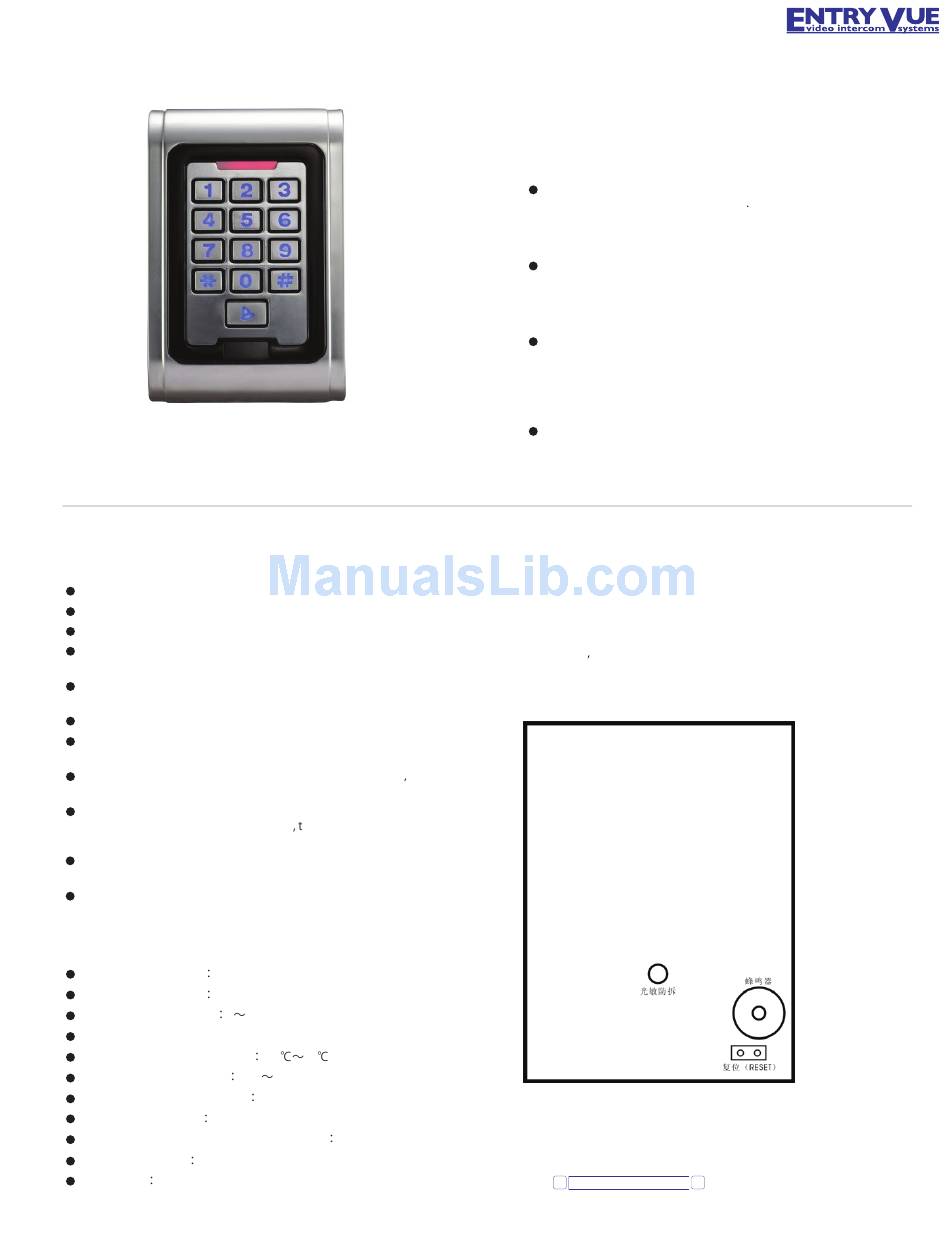

Restore factory settings:
Disconnect the power supply and open the back
cover, use the equipped two feet short-circuit, the
inserting pin, plugged into the machine rear Two short
circuit seat then the machine buzzes, then take short
circuit, namely the inserting pin for initialization of
success. (Figure 1)
Note: restore factory Settings will not delete user data
Enter administrator operation status:
Press
* Administrator password #
Administrator the defaultpassword: 999999
(Figure 1)
