Made from 75% Bagasse
(Environmentally
Friendly Sugar Cane
Pulp By-product)
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
Do Not Use For Cooking.
WARNING
FOR YOUR SAFETY:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
use any phone in your building.
neighbor's phone.
the fire department.
Installation and service must be performed
by a qualified installer, service agency or
gas supplier.
Save these instructions for future
reference.
If you are assembling this unit for someone
else, give this manual to him or her to read
and save for future reference.
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
WARNING
FOR YOUR SAFETY:
1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
Never operate this appliance unattended.
OWNER'S MANUAL

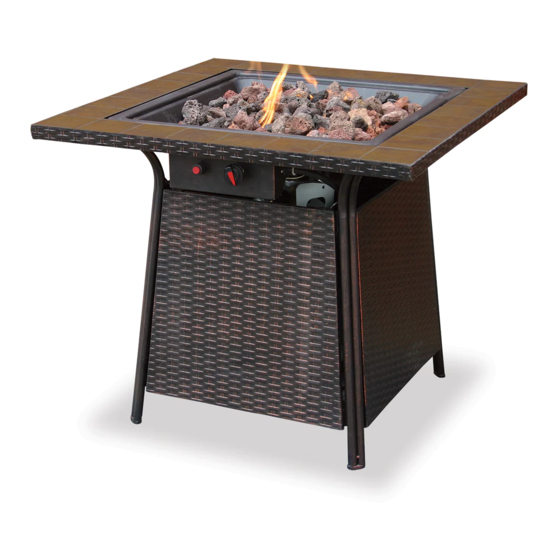

LP Gas Outdoor Fireplace
Model No. GAD1001 Series
DANGER
Table of Contents
Insert LP Gas Tank
Cleaning
use the latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or International
Fuel Gas Code.
70
Manufactured in China for: Blue Rhino Global Sourcing, Inc
UniFlame
®
CARBON MONOXIDE HAZARD
monoxide which has no odor.
space such as a camper, tent, car or home.
National Electrical Code, ANSI/NFPA
Page 2
5
7
7
7
7
7
7
7
7
9
Advertisement
Table of Contents
Related Manuals for Uniflame GAD1001 Series
Summary of Contents for Uniflame GAD1001 Series
- Page 1 OWNER’S MANUAL LP Gas Outdoor Fireplace Model No. GAD1001 Series Made from 75% Bagasse (Environmentally Friendly Sugar Cane Pulp By-product) WARNING FOR YOUR SAFETY: For Outdoor Use Only Do Not Use For Cooking. WARNING FOR YOUR SAFETY: If the information in this manual is not...
- Page 2 LP Gas Outdoor Fireplace Model No. GAD1001 Series DANGERS and WARNINGS: FOR YOUR SAFETY DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.
- Page 3 Contact 1.800.762.1142 for assistance. Do not return to place of purchase. Do NOT leave a lit outdoor fireplace unattended, especially around Storage of this outdoor fireplace indoors is permissible only if the tank children and pets. is disconnected, removed from the outdoor fireplace and properly stored outdoors.
- Page 4 LP Gas Outdoor Fireplace Model No. GAD1001 Series Parts List Exploded View Leg B Leg C Base Hardware Tools Required for Assembly (Not Included) AA Battery...
- Page 5 Contact 1.800.762.1142 for assistance. Do not return to place of purchase. Assembly Instructions DO NOT RETURN PRODUCT TO STORE. Attach Base and Side Panels For assistance call 1.800.762.1142 x 16 Attach Bowl & Hearth Assembly Attach Door...
- Page 6 LP Gas Outdoor Fireplace Model No. GAD1001 Series Assembly Instructions (continued) Installing LP Gas Tank Note: 20 lb 9 Kg Caution: LP gas tank must be properly Place Lava Rocks disconnected and removed prior to moving this grill. 12.2 in. / 31 cm...
- Page 7 Contact 1.800.762.1142 for assistance. Do not return to place of purchase. Operating Instructions Figure 1 Checking for Leaks WARNING: Before using this outdoor CAUTION: After Lighting - Using a shovel and heat resistant gloves, fireplace, make sure you have read, carefully move the lava rocks back to their proper position, being understand and are following all careful to avoid the flame.
- Page 8 LP Gas Outdoor Fireplace Model No. GAD1001 Series Product Registration Limited Warranty Blue Rhino Global Sourcing, Inc Winston-Salem, North Carolina 27105 USA...
- Page 9 Contact 1.800.762.1142 for assistance. Do not return to place of purchase. Troubleshooting Problem Possible Cause Prevention/Cure Make sure regulator is securely attached to the LP gas tank, turn LP gas tank LP gas leak Burner will not light using ignitor Battery needs to be changed Wire loose or disconnected Bad ignitor...
- Page 10 LP Gas Outdoor Fireplace Model No. GAD1001 Series...
- Page 11 2. Une bouteille de propane qui n’est pas raccordée en vue de son utilisation, ne doit pas être entreposée dans le voisinage de cet appareil ou de tout autre appareil. DANGER Ne jamais laisser un barbecue allumé sans surveillance. UniFlame ®...
- Page 12 Foyer d’extérieur au propane, modèle n˚ GAD1001 série DANGERS et MISES EN GARDE: POUR VOTRE SÉCURITÉ: DANGER: Le non-respect des avis de danger, des mises en garde et des consignes de sécurité de ce manuel risque de provoquer un incendie ou une explosion et d’entraîner des dégâts matériels, des blessures graves voire la mort.
- Page 13 Pour toute assistance, appeler le 1.800.762.1142. Ne pas retourner au point de vente. NE PAS utiliser ce foyer d’extérieur avant de lire toutes les instructions La housse doit être retirée lorsque le brûleur est allumé. de ce manuel d’utilisation. NE PAS essayer de déplacer le foyer d’extérieur quand il est allumé. NE PAS utiliser le foyer d’extérieur afin de brûler du bois, des briquettes Laisser le foyer d’extérieur complètement refroidir avant de le déplacer de charbon de bois, du charbon, des bûches en bois d’aggloméré, du...
- Page 14 Foyer d’extérieur au propane, modèle n˚ GAD1001 série Liste des pièces Vue éclatée Âtre Chaîne de retenue de la Pied B Pied C Socle Quincaillerie Outils requis pour l’assemblage (fournis) Pile AA...
- Page 15 Pour toute assistance, appeler le 1.800.762.1142. Ne pas retourner au point de vente. Instructions d’assemblage NE PAS RETOURNER AU MAGASIN AVEC CET Fixer le socle et les panneaux latéraux ARTICLE. frais 1.800.762.1142. x 16 Fixer l’ensemble de l’âtre Fixer la porte...
- Page 16 Foyer d’extérieur au propane, modèle n˚ GAD1001 série Instructions d’assemblage (suite) Installer la bouteille de propane Remarque 20 lb 9 Kg Placer les pierres de lave Avertissement: La bouteille de propane doit être 12,2 po. / 31 cm correctement débranchée et retirée avant de déplacer ce barbecue.
- Page 17 Pour toute assistance, appeler le 1.800.762.1142. Ne pas retourner au point de vente. Fonctionnement (suite) Illustration 4 Brancher la bouteille de propane Attention: Toute tentative d’allumage du brûleur avec le couvercle fermé peut provoquer une explosion ! Débrancher la bouteille de propane “ARRÊT Illustration 5 Avertissement: La bouteille de propane doit...
- Page 18 Foyer d’extérieur au propane, modèle n˚ GAD1001 série Nettoyage et entretien (suite) Garantie limitée Nettoyage des surfaces Avant le remisage Blue Rhino Sourcing, Inc Enregistrement de l’appareil...
- Page 19 Pour toute assistance, appeler le 1.800.762.1142. Ne pas retourner au point de vente. Guide de dépannage Problème Cause possible Prévention/mesure correctrice Le brûleur ne s’allume pas en utilisant l’allumeur électrique Le brûleur ne s’allume pas avec une allumette Serrez manuellement sans utiliser d’outils. “ARRÊT “ARRÊT Baisse soudaine du débit de propane ou...
- Page 20 Foyer d’extérieur au propane, modèle n˚ GAD1001 série...
