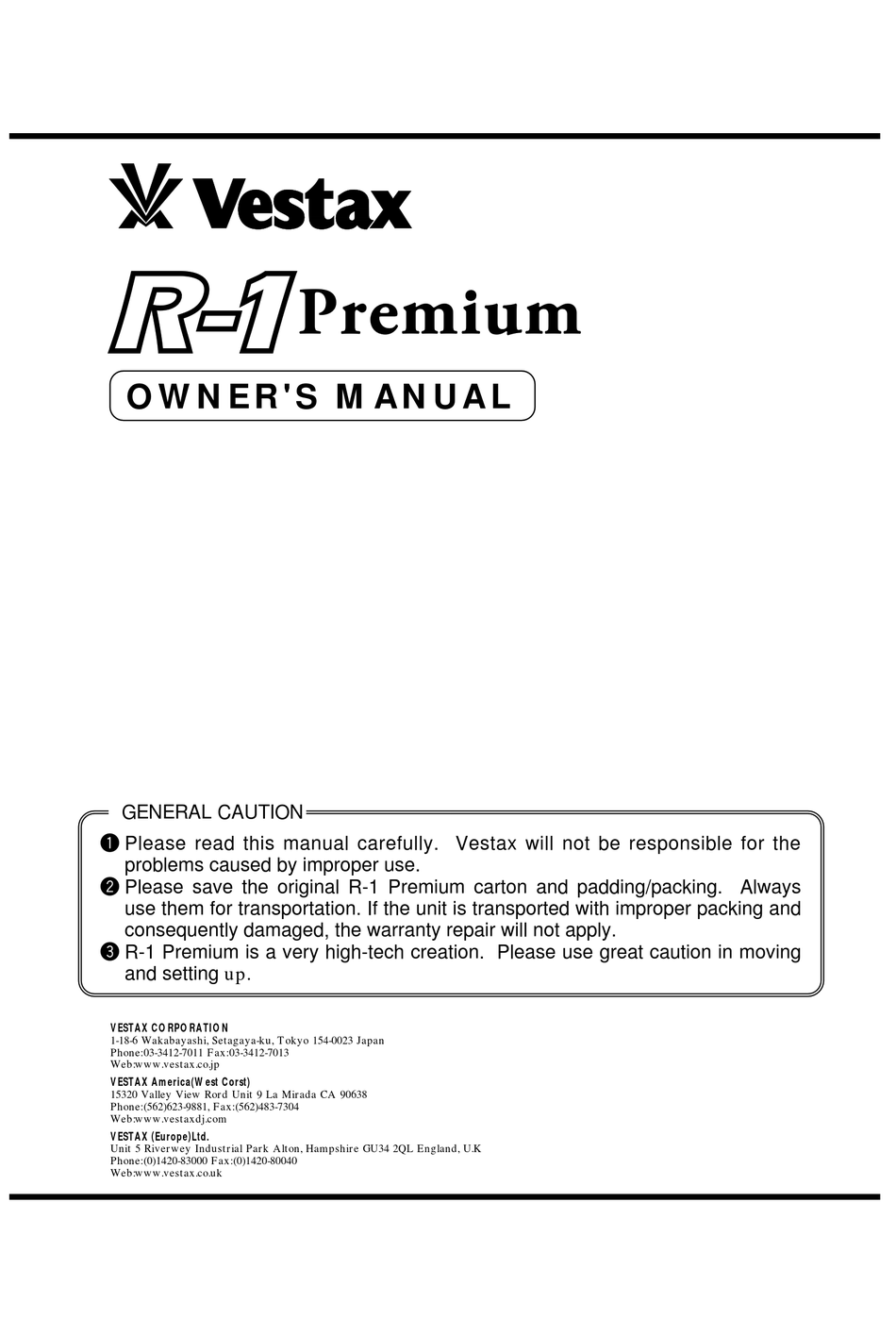

Professional Mixing Controller
OWNER'S MANUAL
GENERAL CAUTION
q Please read this manual carefully. Vestax will not be responsible for the
problems caused by improper use.
w Please save the original R-1 Premium carton and padding/packing. Always
use them for transportation. If the unit is transported with improper packing and
consequently damaged, the warranty repair will not apply.
e R-1 Premium is a very high-tech creation. Please use great caution in moving
and setting up.
VESTAX CORPORATION
1-18-6 Wakabayashi, Setagaya-ku, Tokyo 154-0023 Japan
Phone: 03-3412-7011 Fax:03-3412-7013
Web:www.vestax.co.jp
VESTAX America(West Corst)
15320 Valley View Rord Unit 9 La Mirada CA 90638
Phone: (562)623-9881, Fax: (562)483-7304
Web:www.vestaxdj.com
VESTAX ( Europe ) Ltd.
Unit 5 Riverwey Industrial Park Alton, Hampshire GU34 2QL England, U.K
Phone: (0)1420-83000 Fax: (0)1420-80040
Web:www.vestax.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vestax R-1 Premium
Summary of Contents for Vestax R-1 Premium
- Page 1 If the unit is transported with improper packing and consequently damaged, the warranty repair will not apply. e R-1 Premium is a very high-tech creation. Please use great caution in moving and setting up. VESTAX CORPORATION...
-
Page 2: Table Of Contents
CONGRATULATIONS Congratulations on your purchase of this quality product from Vestax Corporation: the sensational R-1 Premium. C O N T E N T S C A U T I O N IMPORTANT SAFEGURDS F E A T U R E S... -
Page 3: Important Safegurds
I M P O R T A N T S A F E G U R D S READ BEFORE OPERATING EQUIPMENT This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of. - Page 4 15. Damage Requiring Service-Unplug this product 16. Replacement Parts-When replacement parts are from the wall outlet and refer servicing to required, be sure the service technician has used qualified service personnel under the following replacement parts specified by the manufacturer conditions: or have the same characteristics as the original parts.
-
Page 5: F E A T U R E S
F E A T U R E S 5 programs, each with a phono / line switch, are provided with large rotary knob. Alps custom-made volume pot generates perfect torque and extremely long life. Built in 4-band isolator allows DJs to totally separate sounds with the use of our "infinity cut". Dedicated 3-band EQ is provided for Sub master output. - Page 6 ISOLATOR SECTION ISOLATOR [HI, MID-HI, MID-LO, LO] Frequency Shift Switch Frequency Shift Switch Cuts and boosts each frequency range. The level is flat when this knob is set at 12 o'clock. BYPASS SWITCH When set to the "OFF" mode(upward), a full range signal is transmitted regardless of the position of any controls.
-
Page 7: Master Section
MASTER SECTION MASTER LEVEL VOLUME MASTER LEVEL METER Used to adjust the master output level. Usually The LED level meters indicate the signal level adjust so that the first red in the master level of MASTER LEVEL VOLUME. meter blinks at the peak level. OPTION LEVEL METER SUB MASTER LEVEL VOLUME Indicates the input level of the channel, which... -
Page 8: Rear Panel Section
REAR PANEL REAR PANEL SECTION PGM RTN 1/4" Phone Jack GND TERMINAL Receives the signal from the external effect, EQ, Connect this terminal to the ground lead of the etc.. The internal signal route is disconnected turntable. when a plug is connected to this jack. @1 P A OUT [Balanced XLR MALE, 2:HOT/-10dB 4dB] PGM SEND 1/4"... -
Page 9: Block Diagram
B L O C K D I A G R A M... -
Page 10: Specifications
S P E C I F I C A T I O N NOMINAL INPUT MAXMUM INPUT IMPEDANCE LEVEL LEVEL PHONO 1 5 L/R RCA PIN JACK -48dB -18dB INPUT LINE 1 5 L/R RCA PIN JACK -10dB +20dB SECTION AUX RETURN 1 5 L/R 1/4 inch PHONE JACK -10dB... - Page 12 Vestax Corporation MAY.2001 R1PE...
