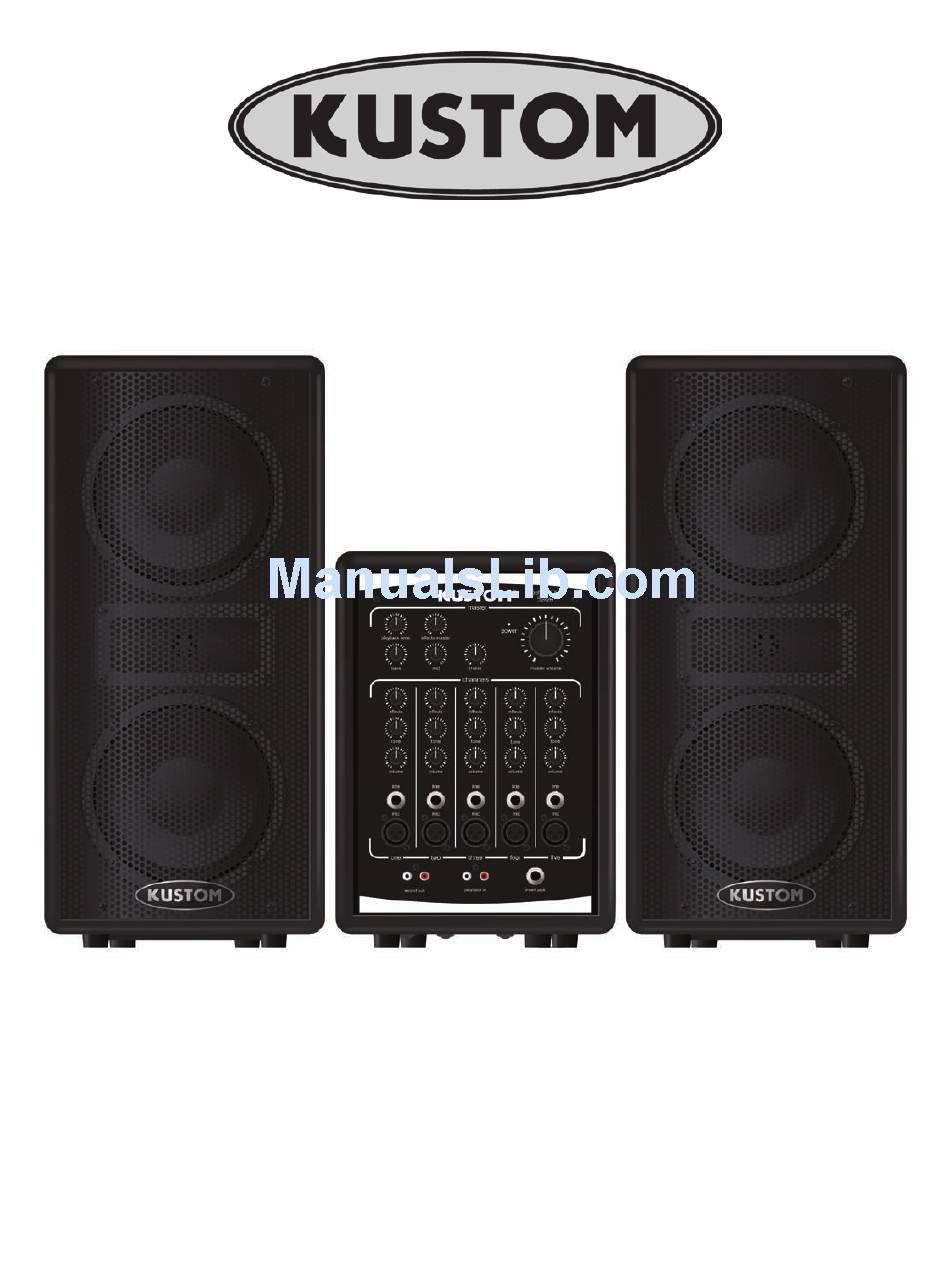

OWNER'S MANUAL
PROFILE 200
Congratulations on the purchase of your Kustom Profile 200.
This P.A. system combines quality performance and convenient features, all in
a highly portable package. You'll find that the Profile 200 works well in a variety
of environments, amplifying vocals, instruments, keyboards, drum machines,
audio devices and more. This manual will help you get up and running quickly.
We wish you many years of enjoyment from your Kustom P.A. system.
kustom.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Profile 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Kustom Profile 200

Summary of Contents for Kustom Profile 200

  • Page 1 Congratulations on the purchase of your Kustom Profile 200. This P.A. system combines quality performance and convenient features, all in a highly portable package. You’ll find that the Profile 200 works well in a variety of environments, amplifying vocals, instruments, keyboards, drum machines, audio devices and more.

  • Page 3: Fcc Statements

    • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. kustom.com...
  • Page 4 ENGLISH kustom.com...
  • Page 5 FRENCH kustom.com...
  • Page 6 Profile 200 Control Panel OVERVIEW: CONTROLS & FUNCTIONS INPUT SECTION: This is where you may plug in microphones, instruments, keyboards, drum machines and other audio devices, adjust the tone, and determine the intensity of the Effects. 1. XLR Inputs: These inputs are designed for low-impedance microphones or equipment that has a mic-level, balanced output (often called a Direct Out).

  • Page 7: Master Section

    Profile 200 Control Panel 2. Mic/Line Inputs: These ¼-inch inputs may be used to connect high-impedance microphones or keyboards, drum machines and other audio devices. 3. Volume: Use these controls to adjust the volume level of each channel and the relative balance between them.
  • Page 8 Profile 200 Back Panel 1. Speaker Outputs: These jacks are used to connect the two Profile speakers. The Profile mixer and speakers have been specifically designed and optimized for use together as a package. The mixer has been designed to deliver maximum power with a 4-ohm load on each jack.
  • Page 9 Profile 200 Signal Flow Diagram TREBLE BASS EFFECTS MAIN kustom.com...
  • Page 10 Profile 200 Powered Mixer Specifications Output Power 5% THD 85 Watts Using one output jack, 8 Ohm load 120 Watts Using one output jack, 4 Ohm load 150 Watts Using both output jacks, 8 Ohms per jack 200 Watts Using both output jacks, 4 Ohms per jack...
  • Page 11 Profile 200 Speaker Cabinet Specifications Speakers 2 X 6-1/2” 50W 8 Ohm Horn 5”x2” fair with piezo driver Power Capacity 100W each cabinet 200W each cabinet Peak music power Frequency Response 50HZ-20kHz Nominal Impedance 4 Ohms Dimensions & Weight mm/Kilogram...
  • Page 12 Kustom Amplification, Inc. 3015 Kustom Drive Hebron, Kentucky USA 41048 888-4-KUSTOM (888-458-7866) All specifications are subject to change without prior notice. ©2010 Kustom...
