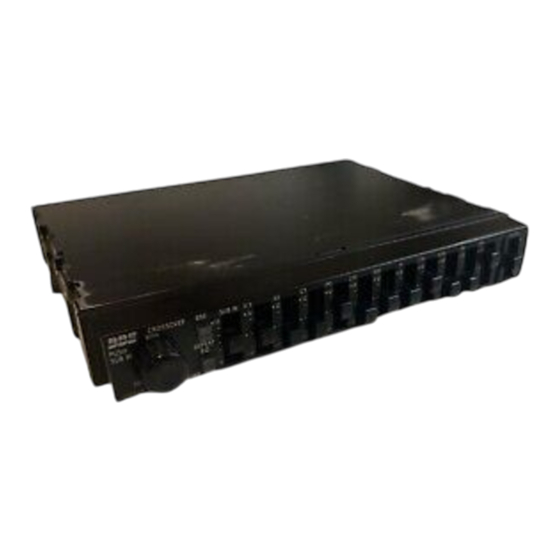

ERE-G180
11-Band Graphic Equalizer
OWNER'S MANUAL
Please read before using this equipment.
MODE D'EMPLOI
Veuillez lire ce mode d'emploi avant la mise en service de l'appareil.
MANUAL DE OPERACION
Lea antes de utilizar este equipo.
BEDIENUNGSANLEITUNG
Lesen Sie diese Anleitung bitte vor der Inbetriebnahme.
LIBRETTO DELLE ISTRUZIONI
Leggere questo manuale prima di usare l'apparecchio.
BRUKSANVISNING
Läs igenom bruksanvisningen innan bilstereon tas i bruk.
CROSSOVER
BBE
SUB W.
31.5
80Hz
+
15
+
12
PUSH
SUB W.
DEFEAT
EQ
50
120
–
0
12
ERE-G180
Français
63
125
190
250
500
+
12
+
12
+
12
+
12
+
12
–
–
–
–
–
12
12
12
12
12
1K
2.2K
4.5K
9K
18K
+
12
+
12
+
12
+
12
+
12
–
–
–
–
–
12
12
12
12
12
Español
R
FADER
F
R
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERE-G180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpine ERE-G180

Summary of Contents for Alpine ERE-G180

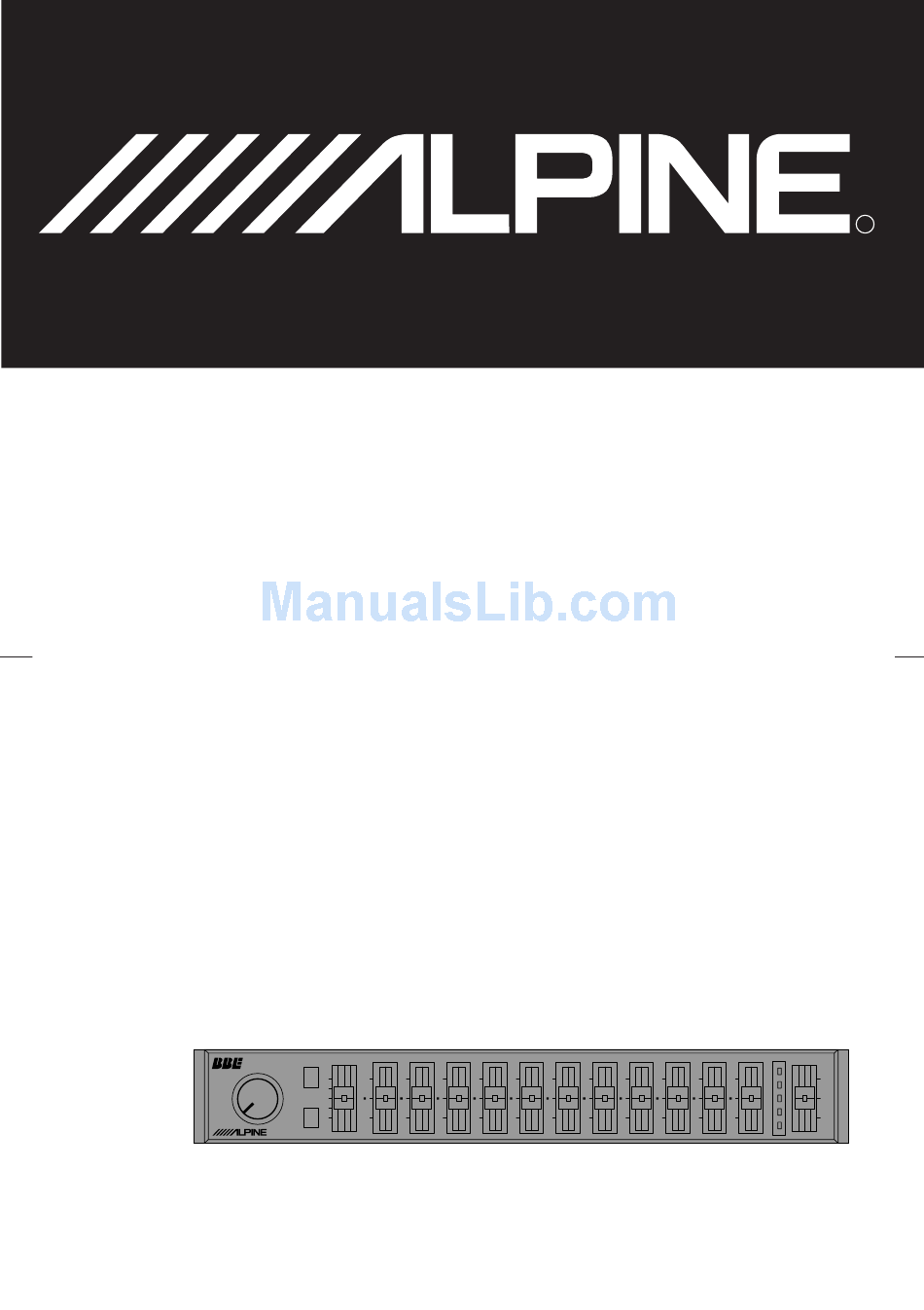

  • Page 1 Français Español ERE-G180 11-Band Graphic Equalizer OWNER'S MANUAL Please read before using this equipment. MODE D'EMPLOI Veuillez lire ce mode d'emploi avant la mise en service de l'appareil. MANUAL DE OPERACION Lea antes de utilizar este equipo. BEDIENUNGSANLEITUNG Lesen Sie diese Anleitung bitte vor der Inbetriebnahme.
  • Page 2 Contents PRECAUTIONS ............4 OPERATION ............6 SPECIFICATIONS ..........12 English/Français/Español English Contenu PRECAUTIONS ............5 FONCTIONNEMENT ..........7 SPECIFICATIONS ..........13 Indice PRECAUCIONES ............ 5 OPERACION ............7 ESPECIFICACIONES ..........13...
  • Page 3 Inhalt VORSICHTSMASSNAHMEN ........ 14 BEDIENUNG ............16 TECHNISCHE DATEN .......... 22 Français Español Indice PRECAUZIONI ............15 FUNZIONAMENTO ..........17 SPECIFICAZIONI ..........23 Innehåll FÖRSIKTIGHETSÅTGÄRDER ......15 MANÖVRERING ............ 17 SPECIFIKATIONER ..........23...

  • Page 4: Precautions

    Depending on the head unit connected to the ERE-G180, some features may not work. The display on the head unit may also vary. Installation Location Make sure the ERE-G180 will not be installed in a location subjected to: • Direct sun and heat •...
  • Page 5 El visualizador de la unidad principal peut varier aussi. puede variar también. Emplacement de montage Ubicación de instalación Ne pas installer l'ERE-G180 dans un endroit Cerciórese de que el ERE-G180 no sea exposé: instalado en un lugar expuesto a: •...

  • Page 6: Operation

    Operation English/Français/Español English Turning Power On and Off The ERE-G180 is turned on and off automati- cally when your head unit is switched on and off. Adjusting the Subwoofer Level The ERE-G180 provides full user control of the subwoofer output. Not only can the output...
  • Page 7 Ajuste de nivel del altavoz woofer de frecuencias ultrabajas L'ERE-G180 assure à l'utilisateur un contrôle El ERE-G180 ofrece al usuario control total complet de la sortie du sub-woofer. Non de la salida del altavoz de frecuencias seulement le niveau de sortie peut être réglé...
  • Page 8 Operation English/Français/Español English Adjusting the Equalizer and Defeat Controls The EQUALIZER DEFEAT switch will be DEFEAT illuminated green when it is in the "OFF" position. In this mode, all the equalizer settings are in effect. The LED indicators on the EQUALIZER controls will be on. Note: The EQUALIZER DEFEAT switch will be illuminated amber when it is in the "ON"...
  • Page 9 Fonctionnement Operación Français Español Réglage des commandes Ajuste de los controles de d'égaliseur et d'annulation ecualizador y cancelación de efecto Quand le commutateur EQUALIZER DEFEAT El interruptor EQUALIZER DEFEAT se ilumina est sur la position désactivée (OFF), il de color verde cuando está en la posición s'allumera en vert.

  • Page 10: Selecting The Bbe Mode

    The red LED should only light intermittently for optimum sound quality. Selecting the BBE Mode Press the BBE switch to set the ERE-G180 to the BBE mode. With each press, the BBE is toggled On or Off. Notes: •...
  • Page 11 Ajuste los controles de volumen y tono de su tonalité de l'unité principale et la commande unidad principal, y el control FADER del ERE- FADER sur l'ERE-G180 selon les préférences G180, según su gusto personal. d'écoute. Independientemente de la posición del Indépendamment de la position du commuta-...

  • Page 12: Specifications

    Specifications English/Français/Español English Number of Bands/Nombre de bandes/Número de bandas ........................... 11 Boost/Cut Range/ Gamme d’accentuation/atténuation/ Margen de incremento/corte ..................12 dB Equalizer Center Frequencies/Fréquences centrales d’égaliseur/Frecuencias centrales del ecualizador ............31.5 Hz, 63 Hz, 125 Hz, 190 Hz, 250 Hz, 500 Hz, 1 kHz, 2.2 kHz, 4.5 kHz, 9 kHz, 18 kHz Frequency Response/Réponse en fréquence/ Respuesta de frecuencia ........
  • Page 13 B.P. 50016 F-95945, Roissy, Tel.: (905) 475-7280 Charles de Gaulle Cedex, France Tel.: 01-48 63 89 89 ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. ALPINE ELECTRONICS OF U. K., LTD. Redwood Gardens Estate, 3 Plane-tree 13 Tanners Drive, Blakelands, Avenue, Dingley, Victoria 3172, Australia Milton Keynes GB-MK14 5BU, U.K.
  • Page 14 Warranty. We suggest that you read it thoroughly. Should you have any questrons, please contact your Dealer or contact Alpine at one of the telephone numbers listed below. product was shopped to an Authorized Alpine Ser-...

  • Page 15: Fonctionnement

    NUMEROS D’APPEL DU SERVICE A LA CLIENTELE SI vow aver besoln de nos services. veulllez appeler le cen- WZOMMENT SE PRCVALOIR DE LA GARANTIE tre de serwce autorIse Alpine le plus proche. @I II vous faut remettre le product necessltant...
  • Page 16 CONNECTIONS and the OWNER’S MANUAL thor- 1 IMPORTANT oughly to familiarize yourself with each control and function. We at ALPINE hope that your new ERE- Please record the serial number of your unit G180 will give you many years of listening enjoyment.
  • Page 17 Under-Dash lnstallationllnstallation sous le tableau de botinstalaci6n debajo del tablero de instrumentos Dashboard Tableau de bord Mounting Bracket Support de montage Soporte de montaje Hex Bolts (M4 x 8) Boulons a six pans (M4 x 8) Pernos hexagonales (M4 x 8) Tornillos autorroscantes (M5 x 20) I n Dash or In Console Installation/Installation...
  • Page 18 NOTE: +I 2V is required on this line to turn on the ERE-G180. If your head unit does not have a remote-on or power-antenna turn-on wire, a SPST switch must be connected between an ignition source and this terminal. Then, the ERE-G180 can be turned on.
  • Page 19 ‘P. Subwoofers Front Rear Sub-woofers Avant Arrihre Altavoces de frecuencias Delantero Trasero ultrabajas SpeakersMaut-parleurs/Altavoces...
  • Page 20 Connect this lead to the remote turn-on lead of your head unit. Applying (+)12V to this lead turns on the ERE-G180. If your head unit has a power antenna output that provides (+)12V when the unit power is turned on, you may use that lead to turn the ERE-G180 on.
  • Page 21 Do not attempt to repair the unit yourself: return it to sur le Porte-fusible. Si le(s) fusible(s) saute (sautent) plus dune your Alpine dealer or nearest Alpine Service Station for servic- fois, verifier correctement toutes les connexions electriques pour ing.
  • Page 22 NOTE: Subwoofer phase and stereo/mono switches are located on the back of the ERE-G180. Make sure they are set correctly before the unit is permanently mounted. Under-Dash Installation 1. Hold the bracket under the dash and mark screw holes.
  • Page 23 MAIL PERMIT N. 320 TORRANCE, CA.90509 POSTAGE WILL BE PAID BY ADDRESSEE ALPINE ELECTRONICS OF AMERICA, INC. Attention : MARKETING SERVICES P.O. Box 2859 Torrance, CA 90509-9939 1‘ FOR USE IN USA, PLEASE FOLD HERE AND ENSURE THAT AMERICAN ADDRESS FACES UP...
  • Page 24 No Postage Stamp Necessary If Mailed In Canada Postage will be paid by ALPINE ELECTRONICS OF CANADA, INC. Suite 203, 7300 Warden Ave. Markham, Ontario L3R 9Z6 ? FOR USE IN CANADA, PLEASE FOLD HERE AND ENSURE THAT CANADIAN ADDRESS FACES Up.
  • Page 25 WHave you purchased Alpine products before? 1, J Flrsl time 2 A Two or More times n When you purchased this Alpine unit, did you compare it with other brands? n lf navigation system, which monitor? 1. J Yes --f (Brand Name) 1.
  • Page 26 2. 3 $30,000 - $50,000 6. d Over $110,000 3. :-I $50,000 - $70,000 Thank you for your cooperation. This information will remain confidential with Alpine and its affiliates and will not be sold to anyone. PART NO. 68PO1151 KOl-0 3354142801-o...
