Thank you for purchasing this fan from SHURflo. Please take a few minutes to read this entire manual before attempting
Installation. If you have any questions, please contact your nearest dealer or SHURflo. This fan will work from super low
to refreshingly high speeds. Manual dome height adjustment allows it to work with most vent covers. Thermal overload
protection and easily removable screen for cleaning are just a couple of the exciting features of this fan.
Standard Features
Variable Speed Fan
Easy-Remove Screen
Fits Standard 14" x 14" Roof Openings
Thermally Protected Motor
Optional Features
Remote-Control
Intake & Exhaust Operation
Motorized Dome
High-Amp Dome Safety Control
Automatic Rain Sensor
Auto-Temp Control from 55°F – 105°F
Contents
1 Comfort Air Fan Unit, including
-1 upper unit

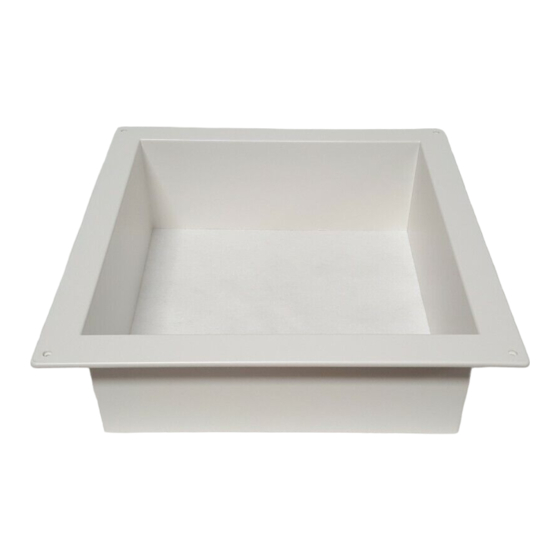

-1 internal flange & 4 screws
o
See specifications on page 6 for
trim model # and sizes
1 Installation and Operation Manual
!
Location
Fan must be installed with the hinge facing
the direction of travel.
Locate bi-directional fan at least 3 feet from
any exhaust vent to prevent fumes from
entering RV.

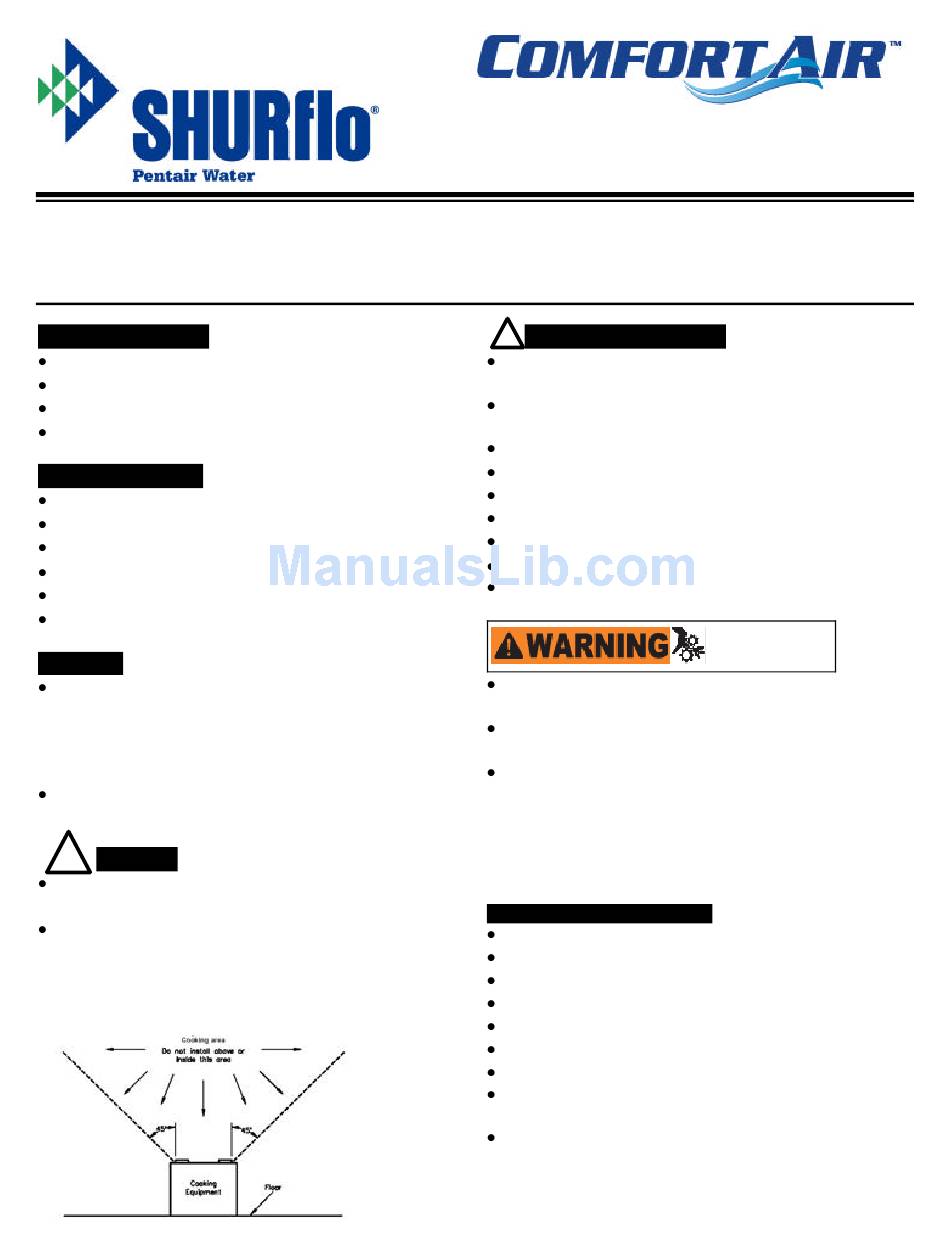

Do not install fan in cooking area shown.
l
911-725-D
03/09
ECN 16260
Comfort Air™ Fan with Ceiling Control
Installation and Operation Manual
!
Important Information
SHURflo recommends professional
installation.
Please read the entire manual before
attempting installation.
This unit requires 12 VDC Power only.
This fan draws 4 Amps max.
5 Amp fuse recommended.
Follow all local building / electrical codes.
Black wire is negative ground [ - ].
Red wire is positive power [ + ].
Never reverse polarity. Reverse polarity can
damage the circuit board.
Never turn the fan on with the screen
removed.
Always turn off power before removing
screen.
Never place any objects in moving blade path.
l
This unit is not intended for operation during wet
conditions, such as rainy weather or washing the RV exterior.
Operation in wet conditions may damage the product.
Unless equipped with rain sensor option, the warranty will be
void if operated in rainy or wet conditions.
Tools and Materials Required
#2 Philips screwdriver
Scraper
Wire stripper/crimp tool
Butyl sealing tape (1/8" x 1" x 6')
18 Gauge or larger copper stranded wire
Insulated wire connectors
5-Amp Power
All weather Silicone sealant
---Rubber roofs require Rubber Roof sealant
3/4" or 1" x #8 self-tapping screws [ 28 ] for
roof mounting. Screws removed from old
unit can be used.
Moving blades
can cut or crush
page 1 of 6
Advertisement
Table of Contents
Related Manuals for SHURflo Comfort Air 21-1316-00
Summary of Contents for SHURflo Comfort Air 21-1316-00
- Page 1 Installation and Operation Manual Thank you for purchasing this fan from SHURflo. Please take a few minutes to read this entire manual before attempting installation. If you have any questions, please contact your nearest dealer or SHURflo. This fan will work from super low to refreshingly high speeds.
- Page 2 COMFORT AIR CEILING CONTROLS INTAKE / EXHAUST (if equipped) DOME MOTOR (if equipped) Press this switch to open or close the dome. Press this switch to change fan direction to blow air out of the RV (Exhaust) or to bring The dome can be stopped in any position.
- Page 3 Use this switch to turn the fan power on and off. --Check inside ceiling flange clearance. This switch must be turned on to operate ---To cut trim, see page 4 or call SHURflo. --Holes in roof exterior can be filled with motorized dome and intake / exhaust direction, wood putty or sealant to ensure a better if equipped.
- Page 4 Trim Ring Modification SHURflo provides 3 different sized trim rings to fit a multitude of RV roof thicknesses. The three styles and the roof thicknesses for each size are: Model # Roof Size 21-1316-00 2” to 3-1/2” 21-1316-01 3-1/2” to 5-1/4”...
- Page 5 Motorized Dome Switch, Ceiling Control 94-073-26 Questions? Please contact your local dealer, go on- line at www.shurflo.com or call SHURflo Customer Service directly at (800) 854-3218 or (800) 762-8094. When calling, please have the following information from the labels located under the dome:...
- Page 6 SHURflo will not accept the return of parts or units, will not send out parts or units or allow for the repair or replacement of parts or units under this warranty without giving their prior expressed authorization and without proof of date of purchase.
