- Page 1 STEREO SPEAKER SELECTORS OSD-SSVC6D SSVC6D ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 USER MANUAL...
- Page 2 TABLE OF CONTENTS Important Safety Precautions....................What’s Included........................Introduction.......................... Front Panel.......................... Rear Panel........................... Typical Hook up........................Installation Tips........................Installation..........................Operation..........................Trouble Shooting........................Technical Specifications....................... Limited Warranty........................IMPORTANT SAFTY PRECAUTIONS When using this product, basic safety precautions should always be followed to reduce the risk of fire and electric shock, including the following: - Read and understand all instructions.

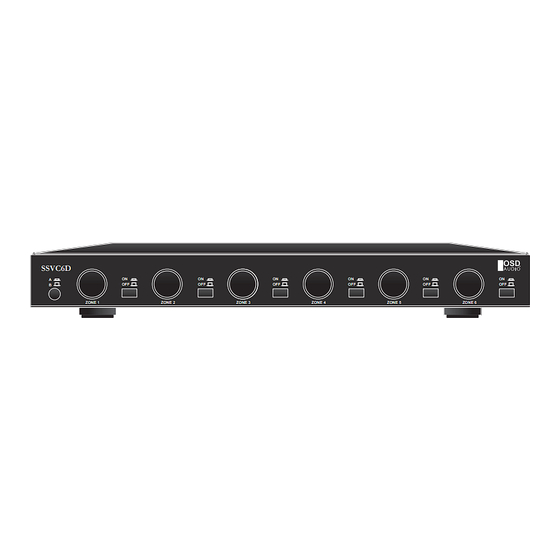

- Page 3 The speaker selector series has been designed to let you add speakers around your home or office while maintaining a central control. Turn them on and off and adjust the volume without requiring additional amplifiers. SSVC6D 6-Zone Speaker Selector with Dual Source (A or B) Operation, Internal Volume Controls and Adjustable Impedance Matching •...
-
Page 4: Rear Panel
REAR PANEL: 3. One Source A and B Input, Removable Connector 4. Three Output Removable Connectors, Zones 1 & 2, Zones 3 &4 and Zones 5 & 6 TYPICAL HOOKUP: • Dual Source; choice of A or B Input, Master A or B Switch on front panel •... -
Page 5: Installation Tips
INSTALLATION TIPS • OSD Audio recommends using 16 AWG gauge stranded wire. For runs longer than 50’, 14 gauge is recommended. • You can mix 4, 6, 8 and 16 ohm speakers. • Since speakers have different efficiencies, more efficient speakers will sound louder than less efficient speakers. Select speakers with the same efficiencies (I.e., sensitivity: a typical measurement is 90 dB/watt) - Page 6 It does not add or increase the gain. Its main function is to provide impedance matching of your speakers to the amplifier or receiver to which the SSVC6D is connected. This is especially important when playing more than two pair of speakers at once.
