Panasonic AW-F575 Specification Sheet

AW-F575
1/2" HS FIT-3CCD 10 Bit Digital Signal Processing Colour Video Camera

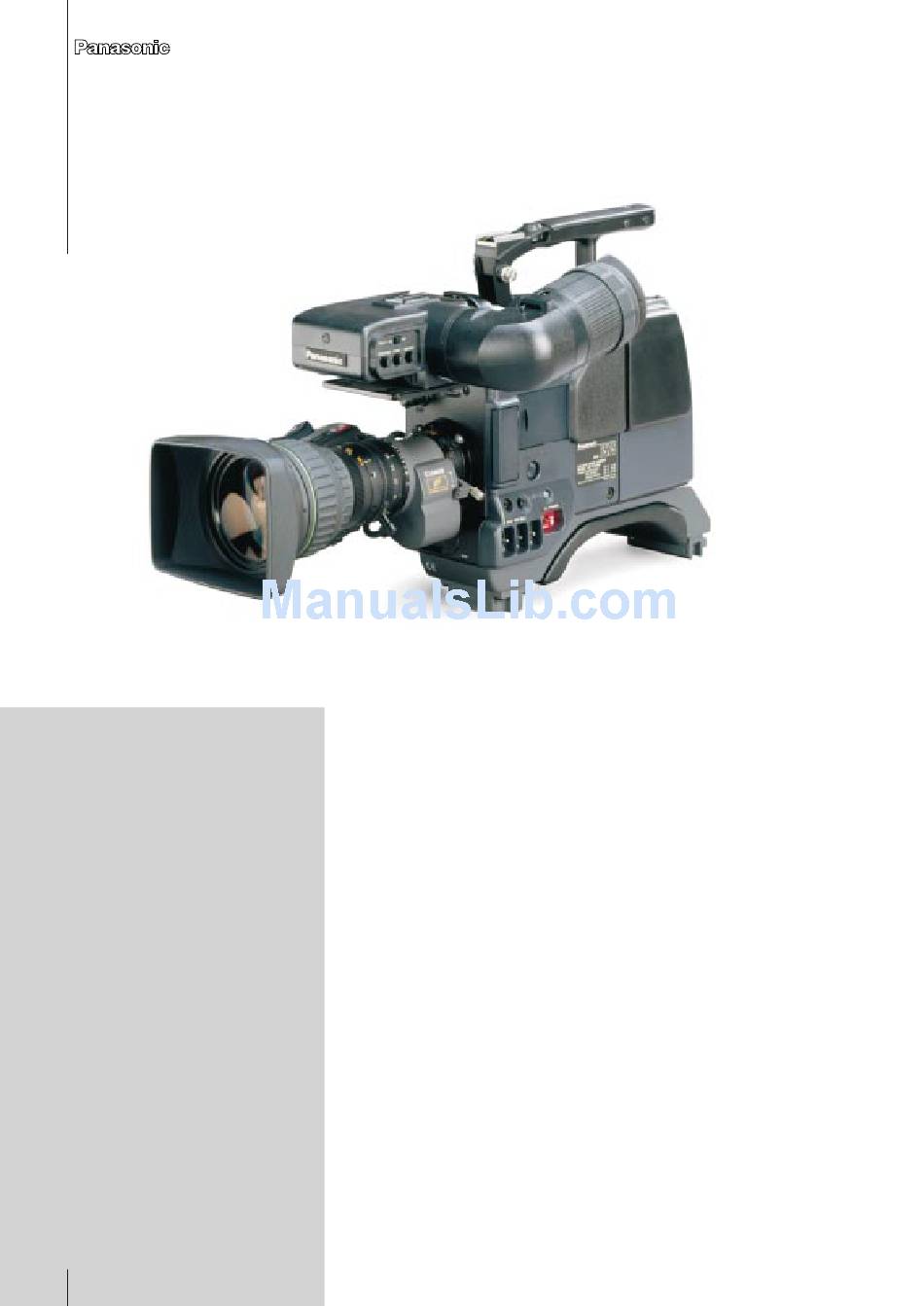

The DSP Colour Video Camera AW-F575 is an ideal unit
for both field acquisition and studio production.
STANDARD ACCESSORIES
User's manual
OPTIONAL ACCESSORIES
AW-AD500A Camera adaptor
AW-AD700BS Camera adaptor with
MPX output
WM-L30 RAMSA condenser mic.
WV-CB700A Camera remote control box
WV-PS700 Power separator
WV-Q70 19" rack mounting brackets
for 1 or 2 WV-RC700 RCUs
WV-Q71 Mounting adaptor for
WV-VF65B
WV-RC700A Camera remote control unit
WV-S550 Accessory kit (kit units also
available individually)
WV-CC500A Carrying case for VTR and
camera
WV-MH500 Microphone mount
WV-QT700 Tripod mounting adaptor
WV-VF42 1.5" electronic viewfinder
(high resolution)
WV-VF65B 5" studio viewfinder
For lenses, tripods, batteries, battery chargers,
AC adaptors and floodlights, see pages 72 - 75.
GENERAL SPECIFICATIONS
Power Requirements 12 V
Power Consumption 11.4 W (camera head, camera
adaptor, viewfinder)
Dimensions (WxHxL) 134 x 262 x 285 mm
Weight 2.2 kg (camera head)
66
www.panasonic-broadcast.com
Three 1/2" HS FIT CCD image sensors
On chip lens technology for drastically reduced vertical smear and high sensitivity
Horizontal resolution of 850 lines
>63 dB S/N ratio (DNR on)
2,000 lux sensitivity at f8.0
10 bit digital signal processing for high signal stability and simple adjustment of
camera parameters including the colour matrix
2 memories for automatic white balance
Auto tracing white balance (can be switched off)
Night eye function with 36 dB gain and minimum illumination of 0.5 lux at f1.4.
Digital noise reduction
Highlight chroma function to increase the chroma in bright picture areas
Chroma noise reduction
I-vector noise reduction for optimal reproduction of skin tones
Precision detail for exact reproduction of hard black and white transition
7 step electronic shutter (1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.)
Synchro-scan for flicker-free recording from data monitors
Automatic knee point correction
EBU colour bars with time and date insertion
Switchable output for RGB, YUV, Y/C, composite
Built-in microphone
Two dimensional low pass filter for reduction of cross colour effects
5 scene file memory mode
Dark detail switching for improving the sharpness of dark picture sections
DVCPRO50, DVCPRO, MII and S-VHS recorder directly dockable
Extensive system accessories for ENG, EFP and studio applications
