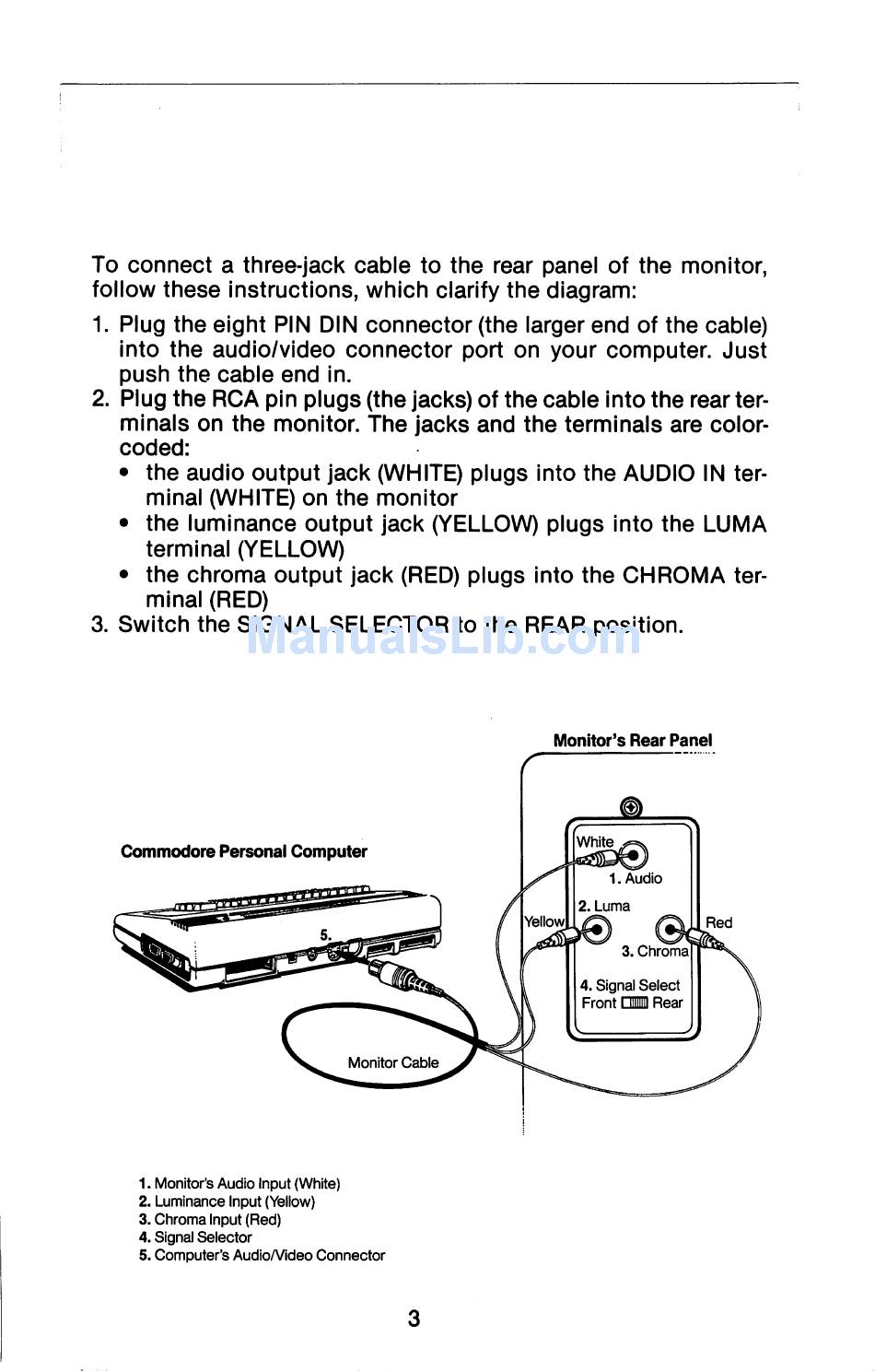

To connect a three-jack cable to the rear panel of the monitor,
follow these instructions, which clarify the diagram:
1. Plug the eight PIN DIN connector (the larger end of the cable)
into the audio/video connector port on your computer. Just
push the cable end in.
2. Plug the RCA pin plugs (the jacks) of the cable into the rear ter-
minals on the monitor. The jacks and the terminals are color-
coded:
• the audio output jack (WHITE) plugs into the AUDIO IN ter-
minal (WHITE) on the monitor
• the luminance output jack (YELLOW) plugs into the LUMA
terminal (yELLOW)
• the chroma output jack (RED) plugs into the CHROMA ter-
minal (RED)
3. Switch the SIGNAL SELECTOR to the REAR position.
Monitor's Rear Panel
Commodore Personal Computer
1. Monitor's Audio Input (WhHe)
2. Luminance Input (Yellow)
3. Chroma Input (Red)
4. Signal Selector
5. Computer's Audio/Video Connector
3
