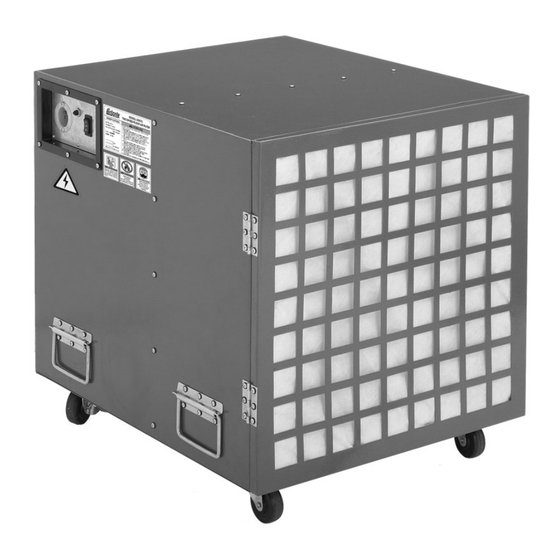

- Page 1 FLOOR AIR FILTER MODEL G0573 INSTRUCTION MANUAL COPYRIGHT © DECEMBER, 2004 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #BL6811 PRINTED IN CHINA...
- Page 2 Some dust created by power sanding, sawing, grind- ing, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. •...
-
Page 3: Table Of Contents
Items Needed For Set Up ... 7 Unpacking .. SECTION 4: OPERATIONS ... 10 Operation Safety ... 10 Operations Available Accessories ... 10 SECTION 5: MAINTENANCE ... 11 G0573 Wire Diagram ... 12 G0573 Parts Breakdown ... 13 WARRANTY AND RETURNS ... 16... -
Page 4: Introduction
INTRODUCTION Foreword We are proud to offer the Model G0573 Two Speed Floor Air Filter. This machine is part of a growing Grizzly family of fine woodworking machinery. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s com-... -
Page 5: Section 1: Safety
3. ALWAYS WEAR AN ANSI APPROVED RESPIRATOR WHEN MACHINERY THAT PRODUCES DUST. Wood dust is a carcinogen and can cause cancer and severe respiratory illnesses. G0573 Two Speed Floor Air Filter 4. ALWAYS USE HEARING PROTECTION WHEN MACHINERY. Machinery noise can cause permanent hearing damage. - Page 6 23. MANY WORKPIECE TOWARD OPERATOR. SERVICING Know and avoid conditions that cause the workpiece to "kickback." 24. ALWAYS BEFORE OPERATING MACHINERY. ADJUSTING KEYS DAMAGED PARTS MACHINES WILL EJECT LOCK MOBILE BASES G0573 Two Speed Floor Air Filter...
-
Page 7: Additional Safety For Air Filters
Like all machines there is danger associ- ated with the Model G0573. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to lessen the pos- sibility of operator injury. -
Page 8: Section 2: Circuit Requirements
DO NOT connect the machine to the power source until instructed to do so. Amperage Draw The 1 ⁄ HP motor on the Model G0573 will draw the following amps: Motor Load ... 12-14 Amps Circuit Breaker Requirements Install your machine on a dedicated circuit to reduce the possibility of tripping the circuit break- er. -
Page 9: Section 3: Set Up
12" diameter metal ducting to the exhaust vent. Because of the high volume of air coming out of the Model G0573, you may want to attach a short length of ducting to control the direction of this airflow in your shop. -
Page 10: Shop Preparation
Figure 1 shows an example of good air circula- tion where the user vents exhaust horizontally from the 12" exterior vent. Figure 1. Good air circulation. The air filter placement promotes circular air motion. Site Planning G0573 Two Speed Floor Air Filter... - Page 11 Figure 2. Poor air circulation, filter is placed too close to the wall. G0573 Two Speed Floor Air Filter...
-
Page 12: Section 4: Operations
If the air filter continues to have problems, please call our customer support lines at (570) 546-9663 for troubleshooting information. Available Accessories Grizzly carries a complete selection of fine accessories for all of its equipment. Below is a list of accessories we are sure you will find useful. -
Page 13: Section 5: Maintenance
Remove the pre-filter, place it inside a trash bag, and gently shake the dust from the fil- ter. G0573 Two Speed Floor Air Filter Note—The pre-filter can be washed with water to remove the last of the dust and help maximize its filtering effect. -
Page 14: G0573 Wire Diagram
G0573 Wire Diagram �������� ���� ���� � � � -12- G0573 Two Speed Floor Air Filter... -
Page 15: G0573 Parts Breakdown
G0573 Parts Breakdown -13- G0573 Two Speed Floor Air Filter... - Page 16 CASTER SKID CASTER FLAT WASHER 6MM HEX BOLT M6-1 X 16 LOCK WASHER 8MM FLAT WASHER #10 LOCK WASHER #10 HEX NUT M4-.7 LOCK WASHER 6MM CAPACITOR 35 MFD 400 VAC HEX NUT M8-1.25 G0573 Two Speed Floor Air Filter...
-
Page 17: Troubleshooting
Symptom The air cleaner does not operate at all. The air cleaner CFM output is reduced. The air filter unit is noisy or vibrates. G0573 Two Speed Floor Air Filter Troubleshooting Possible Cause 1. The power supply circuit breaker is tripped. -
Page 18: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. -
Page 19: Warranty Card
Do you think your machine represents a good value? Would you recommend Grizzly Industrial to a friend? Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. - Page 20 FOLD ALONG DOTTED LINE FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 Name_______________________________ Street_______________________________ City______________State______Zip______ TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
