Summary of Contents for Hasselblad ImageBank - ll

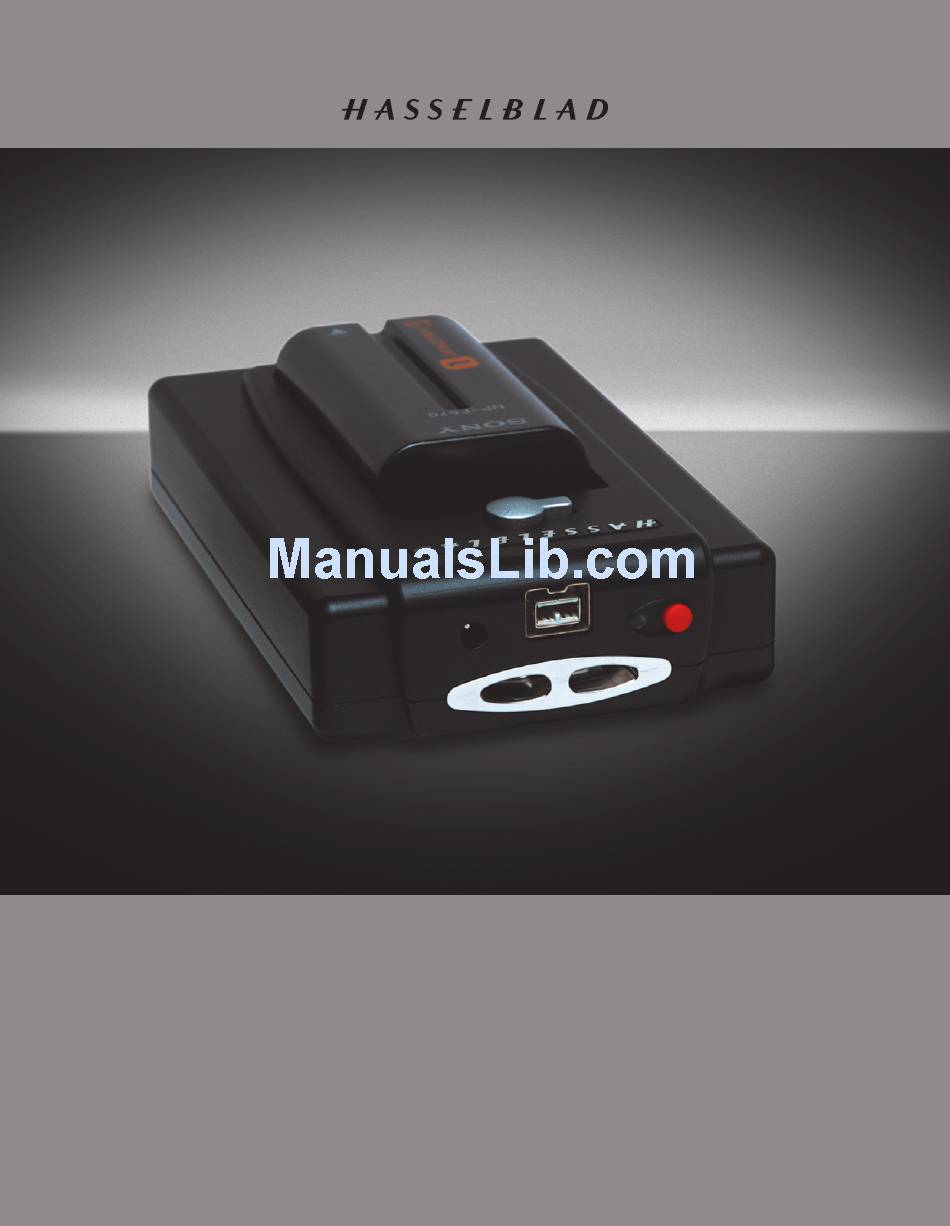

- Page 1 User Manual ImageBank - ll...
-
Page 2: Table Of Contents
Warnings and restric tions The ImageBank-II is simply and rapidly connected System requirements to a Hasselblad digital back using a FireWire cable allowing hours of unrestricted shooting without the Parts & Components need to change CF cards. In addition to providing large... -
Page 3: General Information
External Power Supply: · If you choose to power your system using an external power supply use only a type approved by Hasselblad for use with the ImageBank-II. See “Technical Specifications” later in this manual. System requirements... -
Page 4: Parts & Components
Please check to see that the items illustrated here are included with delivery. If anything is missing or seems faulty in any way then you should contact your Hasselblad dealer immediately. Please keep purchase details and the warranty in a safe place. Carrying strap FireWire cable Parts &... -
Page 5: Setting Up
The ImageBank-II is a compact hard disk capable of holding a great number of large files. It is configured to optimise the rapid storage of Hasselblad 3FR files via a FireWire connection to increase the shooting capacity of the camera. -
Page 6: File Storage
File storage The ImageBank-II in operation – general ON/OFF button Battery powered: Pressing the button once will turn the unit on. However, to turn the unit off, hold the button down for 4 seconds until the indicator light turns orange and then release the button. -
Page 7: Battery Operation
Battery operation Hasselblad recommends using the Sony NP-F550 L-series battery. This size of battery fits conveniently into the ImageBank-II II providing a package that fits conveniently into a pocket, for example. The larger L-series batteries provide longer battery life but make the ImageBank-II II/battery assembly more bulky. - Page 8 The ImageBank-II is powered by either a battery or an external power supply (battery elimi- nator) when used to store new captures. The ImageBank-II can also supply power to a digital back. ImageBank-II ImageBank-II without battery with battery External power supply Connecting the ImageBank-II Storage selection: Once connected and active, the camera/digital back will automatically select the...
-
Page 9: Transferring Files
Transferring files MAC or MAC / PC MAC / PC compatible PC ImageBank-II ImageBank-II ImageBank-II without battery with battery without battery External power supply Files can be transferred from the ImageBank-II to a computer at any time. To optimize performance it is advisable to transfer fairly often. See the above charts for connection possibilities. -
Page 10: Technical Information
Formatting of the ImageBank-II disk has to be initiated from the digital back to ensure correct formatting. See camera/digital back manual for details. Technical specifications Image Capturing Software Hasselblad FlexColor for either Macintosh or Windows Capacity 100 GB (GB = 10 Bytes) Environmental requirements Operating: 5 –... -
Page 11: Equipment Care, Service And Guarantee
• Do not use the batteries except as specified. • Use only the batteries specified for use. The text, images and illustrations in this manual cannot be reprinted • Remove the batteries when cleaning the equipment or if you intend to leave or reused without the express permission of Victor Hasselblad AB & it unused for a long period. Hasselblad A/S. • If you use spare (standard or rechargeable) battery packs be particularly careful when storing. - Page 12 Hasselblad A/S Hejrevej 30, DK - 2400 Copenhagen, Denmark Victor Hasselblad AB Box 220, SE - 401 23 Göteborg, Sweden ImageBank-ll - English v.1...
