  • Page 1 Bluetooth GPS Recorder User Manual GPS-4043...

  • Page 2: Table Of Contents

    Step 1 Charging Your Battery �����������������������������������������������������������������������������������������������������������������������8 Step 2 Turning on the power switch (NAV / LOG) ����������������������������������������������������������9 Step 3 Connecting your PDA device with GPS-4043 ������������������������������������������������9 Step 4 Loading your GPS mapping or routing software �������������������������������������� 12 Step 5 Starting the application ���������������������������������������������������������������������������������������������������������������� 12 2.3 Helpful Tips������������������������������������������������������������������������������������������������������������������������������������������������������������������������������13...

  • Page 3: Before You Begin

    • Blumax Bluetooth GPS-4043 Recorder uses Lithium battery. If Blumax Bluetooth GPS-4043 Recorder is used in temperature lower than -10°C or higher than 60°C, its battery charging capability will decrease. Please leave the Blumax Bluetooth GPS-4043 Recorder far from heat or high temperature environment. In addition, do not expose your Blumax Bluetooth GPS-4043 Recorder in temperature higher than 140°F/60°C.

  • Page 4: Introduction

    1.2 Introduction This Blumax Bluetooth GPS-4043 Recorder features an all-in-one, cost-effective portable GPS logging solution. With its on-board memory, it allows you to log your routes by ways of time/ distance/ speed. Points of interest can also be recorded by a push button.

  • Page 5: Applications

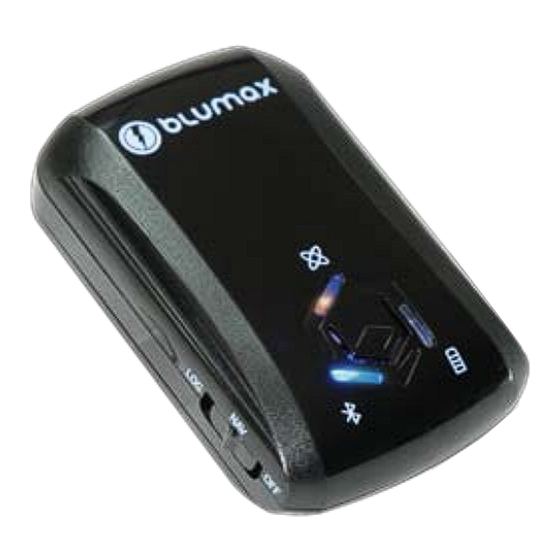

    1.4 Applications • Route recording • Business trip expense management • Fleet management • Driving behavior monitoring • Saving of Point of Interest 1.5 Appearance 1. DC jack (mini USB type) 2. Mode switch (Power off/ Navigation/ Navigation&log) 3. Bluetooth status LED (blue) 4.

  • Page 6: Power Switch And Push Button

    Push to log points of interest, LED blinks 3 times. Difference between NAV and LOG: You can use the GPS-4043 Recorder as a Bluetooth GPS receiver to navigate when you have a Bluetooth enabled PDA/ Smartphone in your car. The logging is off.

  • Page 7: Led Display

    1.7 LED Display The Blumax Bluetooth GPS-4043 Recorder has three LED lights, one is Blue- tooth Status LED, the 2nd one is Battery Status LED, the 3rd one is GPS Status LED/ Push to log LED. The status table of LED shows as follows:...

  • Page 8: Getting Started

    Congratulations on your purchase of the GPS-4043 Recorder with built-in Lithium rechargeable battery. Before you start using GPS-4043 Recorder, please make sure if your package includes the following items. If any item is damaged or missing, please contact your dealer at once.

  • Page 9: Getting Started

    Charging time is about 3~4 hours and you can charge from PC/ Notebook’s USB HOST or from cigarette-lighter in car. For the 1st time you use the GPS-4043 Recorder, please charge battery until it is full (the green LED blinks). The LED that represents the battery is the right-most battery icon (shown in below).

  • Page 10: Step 2 Turning On The Power Switch (Nav / Log)

    Step 3 Connecting your PDA device with GPS-4043 Please refer to the user manual of PDA to enable the Bluetooth connectivity. If the connection between your device and GPS-4043 Recorder is successful, the blue LED of GPS-4043 Recorder will be blinking.
  • Page 11 1. Open “Bluetooth Manager” on pocket pc, and establish new connection. Start > Bluetooth Manager 2. explore a Bluetooth device, and find the “Blumax Bt-GPS” Explore A Bluetooth Tap Blumax BT-GPS device >Next - 10 -...
  • Page 12 3. (Optional) Passkey 0000 (if your PDA ask for the passkey) 4. Connect to Serial Port Profile (SPP) Slave Select SPP slave->Next Finish - 11 -...

  • Page 13: Step 4 Loading Your Gps Mapping Or Routing Software

    Step 4 Loading your GPS mapping or routing software You should have mapping software on your PDA/ Smartphone/ laptop or you need to install it before using the GPS-4043 Recorder for navigation. Step 5 Starting the application Select the correct COM port & baud rate within the application Note: The Bluetooth device in most of the applications has an “auto-detect”...

  • Page 14: Helpful Tips

    - Note that GPS-4043 Recorder may not work indoors where it can not see the sky. - For the 1st time you use the GPS-4043 Recorder, it will take 1 to 3 minutes to obtain the satellite constellation information and fix your position, this is called “Cold Start”.

  • Page 15: Using Photo Tagger Software

    Photo tagger software > Help > User Manual to use a mini-USB cable to connect the GPS-4043 recorder to your PC, you have to power on the GPS-4043 unit. Please keep in mind to switch to LOG mode while using Photo tagger software.

  • Page 16: Appendix A. Specifications

    Appendix A. Specifications General Frequency L1,1575.42MHZ C/A Code 1.023MHZ Datum WGS84 Performance Characteristics Position Accuracy Without aid: 3.0m 2D-RMS < 3m CEP (50%) without SA (horizontal) DGPS (WAAS,EGNOS,MSAS): 2.5m Velocity Accuracy Without aid: 0.1m/s DGPS (WAAS,EGNOS,MSAS): 0.05m/s Acceleration Without aid: < 4g DGPS (WAAS,EGNOS,MSAS): <...

  • Page 17: Data Log

    Power Consumption 40mA Battery Rechargeable 1000mAH Lithium battery Available Baud Rates 115200 bps Protocols NMEA 0183 v3.01 environment Operating Temperature -10°C ~ 60°C Storage Temperature -20°C ~ 60°C Charging Temperature 0°C ~ 45C°C Bluetooth Standard Fully compliant with Bluetooth V1.2 Output Power 0dBm (Typical), ClassII Range...

  • Page 18: Appendix B. Locr Gps Photo

    Appendix B. locr GPS Photo With GPS-4043 data logger and locr GPS Photo software, users are allowed to import geotagging adds information to photos. The position (latitude/ longitude) then be written into the EXIF header for the further application. Also, locr GPS Photo can integrated travel log and digital photos by date/ time to show photos on the map directly.

  • Page 19: Appendix C. How To Change Battery

    Step 2 Open the cover Step 1 Press the button of battery to right side Step 3 Take out the battery Step 4 Fit new battery into GPS-4043 Step 5 From R to L close Step 6 Done the cover - 18 -...

  • Page 20: Appendix D. Certification

    Appendix D. Certification FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interface, and 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 21 Ce Notices Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to electromagnetic Compatibility (89/336/eeC), Low-voltage Direc- tive (73/23/eeC) and the Amendment Directive (93/68/eeC), the procedures given in european Council Directive 99/5/eC and 89/3360eeC.

  • Page 22: Appendix E. Warranty Information

    Appendix E. Warranty Information thank you for your purchase of GPS product from the company. The company warrants this product to be free from defects in materials and work- manship for one year from the date of purchase. The warranty for accessories is six months.
  • Page 23 www.blu-max.eu - 2 -...
