Summary of Contents for Diverse GENIUS-II
- Page 1 GENIUS-II POWER SUPPLY Owner's Manual Please read the Installation section of this manual before installing the product.
- Page 2 Copyright © Diverse Power Systems 2013 Disclaimer Diverse Power Systems makes no claim as to the accuracy or suitability of the information contained in this manual. Diverse Power Systems accepts no liability for any loss or damage, which may occur as a result of improper or unsafe use of its products.
-
Page 3: Table Of Contents
Contents Introduction......................4 Safety Precautions.................... 4 Accessories....................... 5 About the Genius-II Power Supply..............5 Names and Functions of Parts................6 Installing The Genius-II Power Supply..............7 Personnel......................7 Ventilation, Orientation, and Thermal Considerations........7 Mounting......................7 Mains Cable...................... 7 Load, Battery and External DC Input Connections..........8 Wire Size...................... -
Page 4: Introduction
Introduction Safety Precautions Please read the Safety Precautions carefully before installing the power supply. Be sure to observe all precautions without fail. After completing installation, conduct a trial operation to check for faults. Failure to follow these instructions properly may result in WARNING personal injury or loss of life. -
Page 5: Accessories
1. Owner's Manual About the Genius-II Power Supply The Genius-II has been designed for use in caravans and similar recreational vehicles, providing a DC power system with optional battery back up. The units operate from 240 Vac and provide an isolated 13.65 Vdc output at 35 A for powering the load and charging the caravan battery. -
Page 6: Names And Functions Of Parts
Names and Functions of Parts 12 13 Mains Cable (permanently Indicator Multi-colour Status indicator connected) 240 V input power for charging the Battery Fuse caravan battery and powering loads Fuse for caravan battery connection Mounting Bracket Battery Negative Terminal Illuminated Power Switch Connection point for battery negative terminal and external DC input 240 V input power switch... -
Page 7: Installing The Genius-Ii Power Supply
WARNING: Do not install unit in same compartment where flammable material such as petrol is stored. Mounting The Genius-II should be securely mounted to a suitably strong surface, using the two pre-drilled mounting brackets. Dimensional details are provided in Figure 1 below. -
Page 8: Load, Battery And External Dc Input Connections
Load, Battery and External DC Input Connections All DC connections should be wired according to Figure 3 on page 11. A block diagram of the basic internal wiring of the Genius-II can be found in Figure 4 on page 14. -
Page 9: Load Connections
This input is to be powered from a suitable +12 V system. (e.g. your Car). The voltage of this external DC power source should not exceed 14.8 volts. This input is diode isolated, so it is strictly an input; the Genius-II will never supply current to anything connected to this terminal. -
Page 10: Remote Load-Isolator Switch Connection
Remote Load-isolator Switch Connection The Genius-II allows for remote control of the load connections. A pair of contacts are provided for connection to the external switch. When this switch is closed, all loads are disconnected from all power. - Page 11 Load 1 Load 10 – – – – – Car Battery Caravan Solar or other DC Battery Regulator source The solar regulator may be connected at the Genius-II or at the caravan battery as shown above. Figure 3: DC Wiring Diagram...
-
Page 12: Battery Connection/Disconnection Procedure
Ensure the battery has been charged for several days before a major camping trip (Leave the Genius-II power supply on for at least 2 days, preferably 5 days, with battery connected.) -
Page 13: Storage
In normal use a battery connected to the Genius-II should never become deeply discharged, so recharging it should never be a problem. If a battery has become deeply discharged and the Genius-II will not charge it, remove the battery (see Battery Connection/Disconnection Procedure on page 12) and charge it with a stand-alone charger. -
Page 14: Functional Description
Fusing Each load circuit and the caravan battery connection have been fused to provide fault protection and discrimination. Refer to the servicing section for fuse ratings. Battery Charging Features The power supply (Genius-II) provides full battery management as per the... -
Page 15: Battery Charging Management
20 A, the maximum battery charging current will be reduced accordingly. Note that for the Genius-II to operate in the manner described above, all loads must be connected to its load terminals, not directly to the caravan battery. -
Page 16: Battery Charging Store Mode
Charging Algorithm When mains is interrupted during Vfloat mode Vboost Vstore Vfloat (14.05V) (13.25V) (13.65V) Vstore (13.25V) 24 Hours 24 Hours 15 min 24 Hours When mains is interrupted during Store or Periodic Boost mode Float Mode Store Mode Periodic Boost Mode During Float mode the battery is charged at Store mode is activated when the battery has 15 A until the float voltage is reached. -
Page 17: Led Indicator
LED Indicator A multi-colour LED indicator is provided to indicate the following operating conditions: Colour Condition Green (Solid) Mains present AND battery fully charged (battery charging current less than 1 A) Green (Flash) Mains present AND Battery Charging AND loads connected Green (Blink) No Mains and Battery voltage above disconnect... -
Page 18: Specifications
Safety: AS/NZS 60335.1, AS/NZS 60335.2.29 EMC: AS/NZS CISPR 22 Class A Compliance: ERAC After-sales Service WARNING: Do not disassemble, modify, or repair the unit. Doing so may result in electric shocks or fire. Repairs and After-sales Service Consult your Diverse dealer. -
Page 19: Warranty Terms And Conditions
The Genius-II Power Supply warranty is valid for a period of one year from the original date of purchase. Please retain your proof of purchase, as this will need to be provided should you wish to claim under this warranty. - Page 20 DESIGNED AND MANUFACTURED IN AUSTRALIA 023484 Rev A...
Need help?
Do you have a question about the GENIUS-II and is the answer not in the manual?
Questions and answers

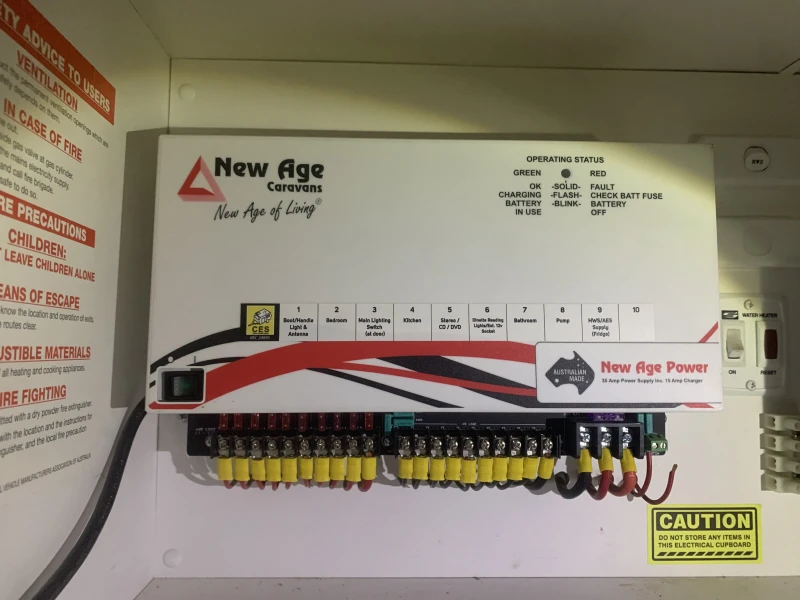

Why would this switch keep tripping
The Diverse GENIUS-II switch may keep tripping due to one or more of the following reasons:
1. Output overload or unspecified fault – Indicated by red and/or green LED flashes.
2. Over-temperature shutdown – Indicated by a solid red LED; occurs when the power supply overheats.
3. Battery fuse blown – Indicated by a flashing red LED.
4. Loads disconnected via remote switch – Indicated by a blinking red LED.
5. Incorrect installation or poor ventilation – May cause overheating or malfunction.
Check LED indications and ensure proper installation, ventilation, and load limits.
