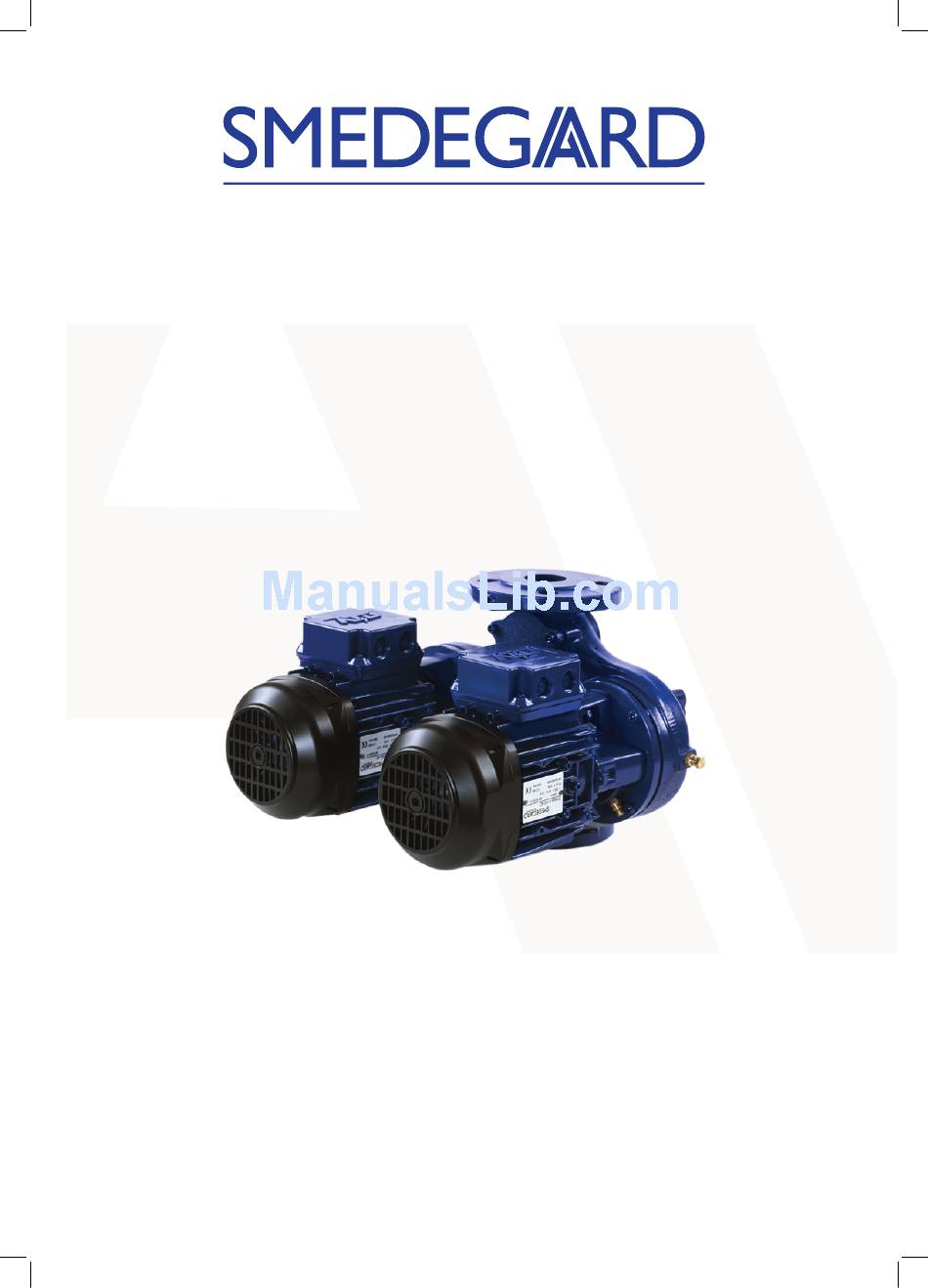

Pumping Technology

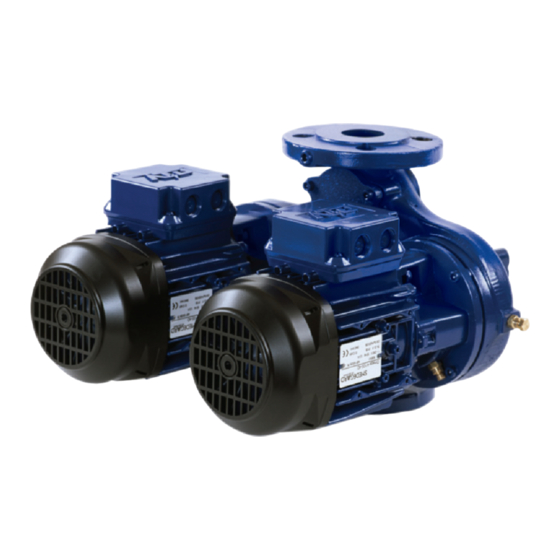

OMEGA GLANDED PUMPS
Installation AND OPERATION MANUAL
IMPORTANT INFORMATION
These instructions must be read and understood before installing,
commissioning, operating or maintaining the equipment.
Advertisement
Table of Contents
Summary of Contents for SmedeGard power pumps
- Page 1 Pumping Technology OMEGA GLANDED PUMPS INSTALLATION AND OPERATION MANUAL IMPORTANT INFORMATION These instructions must be read and understood before installing, commissioning, operating or maintaining the equipment.
- Page 2 This installation guide gives basic instructions which are to be observed during installation, operation and maintenance of the pump. It is therefore imperative that this document be read by the responsible person/operator prior to the installation and always be kept available at the site. It is not only the general safety instructions under the main heading “Safety”...
- Page 3 INSTALLATION Fig. 1 Where provided, the threaded tappings in the base of the pump are for the attachment of a foot plate for floor mounting and are not designed for the purpose of wall mounting. Where the pump is to be mounted with the head in a horizontal position, the weight of the pump must be taken into consideration so as to avoid the risk of the failure of the fixings and the consequential danger of damage or injury.
- Page 4 Air Venting Closed Circuits Open valves on suction and discharge, allowing water to enter the pump casing. Open the air vent screw on the pump seal chamber (see Fig. 2) and allow all the air to escape. Close the air vent screw. Open Circuits - Flooded suction Proceed as for closed circuits above but with discharge valve closed.
-
Page 5: Fault Finding
FAULT FINDING Fault Cause Action Motor does not start Electrical supply isolated Check motor terminals for correct voltage Blown Fuses Replace fuses and check current Loose electrical connections Tighten all electrical connections Motor runs and then cuts out Undersized wiring Rewire with larger cable Starter overload tripped Check overload sizing with motor F.L.C... - Page 6 Pumping Technology EC-DECLARATION OF CONFORMITY Representative and manufacture: Smedegaard Pumps Limited 10 Beech Business Park Bristol Road Bridgwater Somerset TA6 4FF Machine: Circulation Pump Type: Omega From 1301-0001 to 1452-9999 Consist of: Pump, Motor Manufactured in accordance with the Machinery Directive 2006/42/EC on the approximation of the laws of machines.
