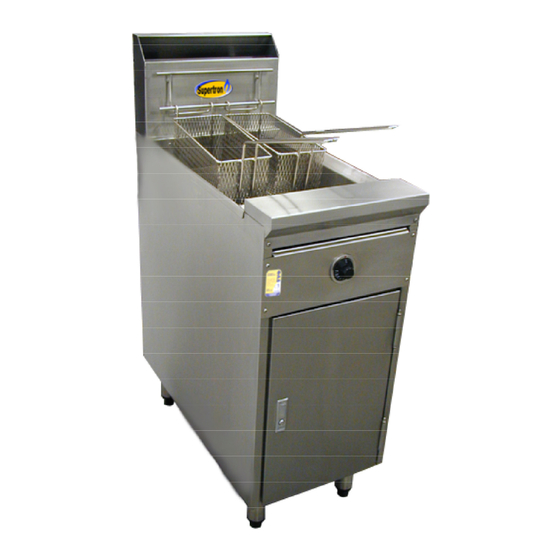

Summary of Contents for Supertron DF-400
- Page 1 USER’S GUIDE FOR DEEP FRYER...
-
Page 2: Specification
Highest sloping point of pan from top of cast manifold 300mm Fluing 2x70x70 holes from combustion chamber into a rectangular vertical rising flue 50mmx300mm Overall Dimensions Height over splashback 1130mm Width 400mm (DF-400), 800mm (DF-800), 1200mm (DF-1200) Depth (front to back) 790mm Working Height 900mm Leg Height 150mm Gas Inlet A ¾"... -
Page 3: Installation Instructions
Burner Location 400mm above floor Fry Pan Dimensions Front to Back 534mm Depth 510mm Width 405mm (DF-400), 805mm (DF-800), 1205mm (DF-1200) Nominal Hourly Gas LPG: Consumption 90MJ per Pan 85MJ per Pan Test Point Pressure LPG: 1 KPa 2.75 KPa... - Page 4 If unit fails to operate, please contact local distributor or call manufacturer on Phone: (613) 9543 9577 Fax: (613) 9544 1487. OPERATING AND MAINTENANCE INSTRUCTIONS, SERVICE Deep fryer pan features a centre cool zone and crumb trap. A drain-off valve is provided. Heating of the fryer is by means of duck bill burners of high quality material with ports drawing in secondary air through the centre.
- Page 5 SERVICE (Must only be carried out by Authorised Personnel) Thermostat Re-Calibration – for NG & LPG Set temperature to 149 Remove thermostat dial from control by simply pulling forward. Remove lock-nut and bush locating washer. Remove bush. By watching carefully the temperature rise of the oil with the thermostat, turn the control off by means of gripping the splined spindle when the temperature is approximately 10 C under149 Note:...
