Summary of Contents for Vax Everyday V-092
-

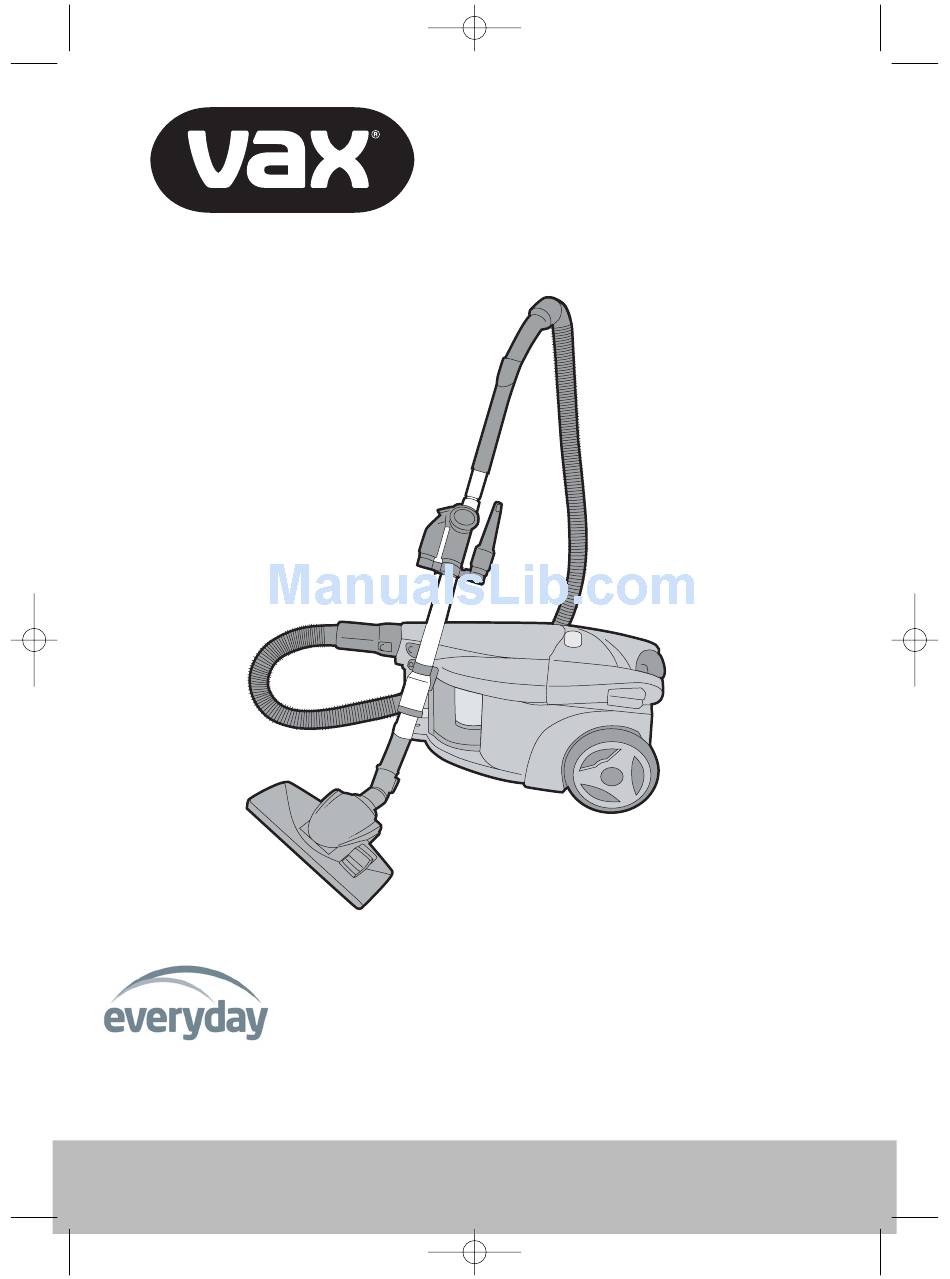

Page 1: Instruction Manual
Vax V-092 D7 mm.QXD 8/19/05 11:53 AM Page 1 Vax Careline: 0870 6061248 www.vax.co.uk Please read carefully before using BAGLESS VACUUM CLEANER this cleaner. Always fully extend Vax Model Number: V-092/V-092TT/V-092TB the mains cable before use. Instruction Manual... - Page 2 Vax V-092 D7 mm.QXD 8/19/05 11:54 AM Page 2 Parts Overview 1. Diagram Fig.1/1 1 Handle 14 Floor tool parking 2 Suction regulator 15 Post-motor filter cover 3 Telescopic extension tube 16 Upholstery tool 4 On-board tool holder 17 Plug...
-
Page 3: Safety Information
Do not use the vacuum cleaner with a before re-starting the vacuum cleaner. damaged cord or plug. If the supply cord or plug is damaged, return the vacuum cleaner to a Vax IMPORTANT: Cleaning filters improves vacuum Authorised Service Agent or suitably qualified performance. -
Page 4: How To Assemble
Vax V-092 D7 mm.QXD 8/19/05 11:54 AM Page 4 How to Assemble//How to Operate 3. How to Assemble Attach the tools into the on-board tool holder by pushing into position (Fig.3/5). IMPORTANT: Always remove the power plug from the electrical outlet before assembling or before removing accessories. -
Page 5: Hard Floor Cleaning
Vax V-092 D7 mm.QXD 8/19/05 11:54 AM Page 5 How to Operate/Accessories 5. Accessories Hard Floor Cleaning For hard floor cleaning, press the rocker switch on the The on-board tool storage means accessories are combination floor tool to lower the brushes (Fig.4/3). -
Page 6: Dirt Container & Filter: Removal & Replacement
NOTE: The filter may also be washed by running it under the tap in lukewarm (Max 40ºC) water. Vax recommend washing the filter once a month or when suction appears reduced. Always allow the filter to air dry for 24 hours before replacing into the cleaner. -
Page 7: Clearing Blockages
LOCKING RING Fig.7/2 Lift the top cover off and remove any blockage Fig.6/7 (Fig.7/3). Remove the post-motor filter (Fig.6/8). Vax recommend replacing the filter every 6-12 months. Fig.7/3 To re-assemble, ensure that the tabs are engaged. Pivot the lower housing closed and rotate the locking ring 180 (Fig.7/4). -
Page 8: Troubleshooting
Vax V-092 D7 mm.QXD 8/19/05 11:54 AM Page 8 Troubleshooting 8. Troubleshooting WARNING: TO REDUCE RISK OF PERSONAL INJURY, UNPLUG VACUUM CLEANER BEFORE SERVICING PROBLEM: Cleaner won’t run Cause: Not properly plugged into electrical outlet. Solution: Plug in firmly. Cause: No electricity in electrical outlet. -
Page 9: Technical Specification
An answerphone is available out of these hours. model) Any queries or concerns about using the Vax, call Capacity: 1.8 litres max the Vax Careline. Calls are charged at the UK national Filters: Mesh pre-motor filter rate. Foam & pleated paper cartridge... - Page 10 Vax V-092 D7 mm.QXD 8/19/05 11:54 AM Page 10 This page has been left intentionally blank.
- Page 11 Vax V-092 D7 mm.QXD 8/19/05 11:54 AM Page 11 This page has been left intentionally blank.
- Page 12 11:54 AM Page 12 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility declare that the products V-092/V-092TT/V-092TB is manufactured in compliance with the following: Safety: 73/23/EEC Low Voltage Directive, as modified by 93/68/EEC EMC: 89/336/EEC Electromagnetic Compatibility Directive, as modified by 93/68/EEC Waste electrical products should not be disposed of with household waste.
