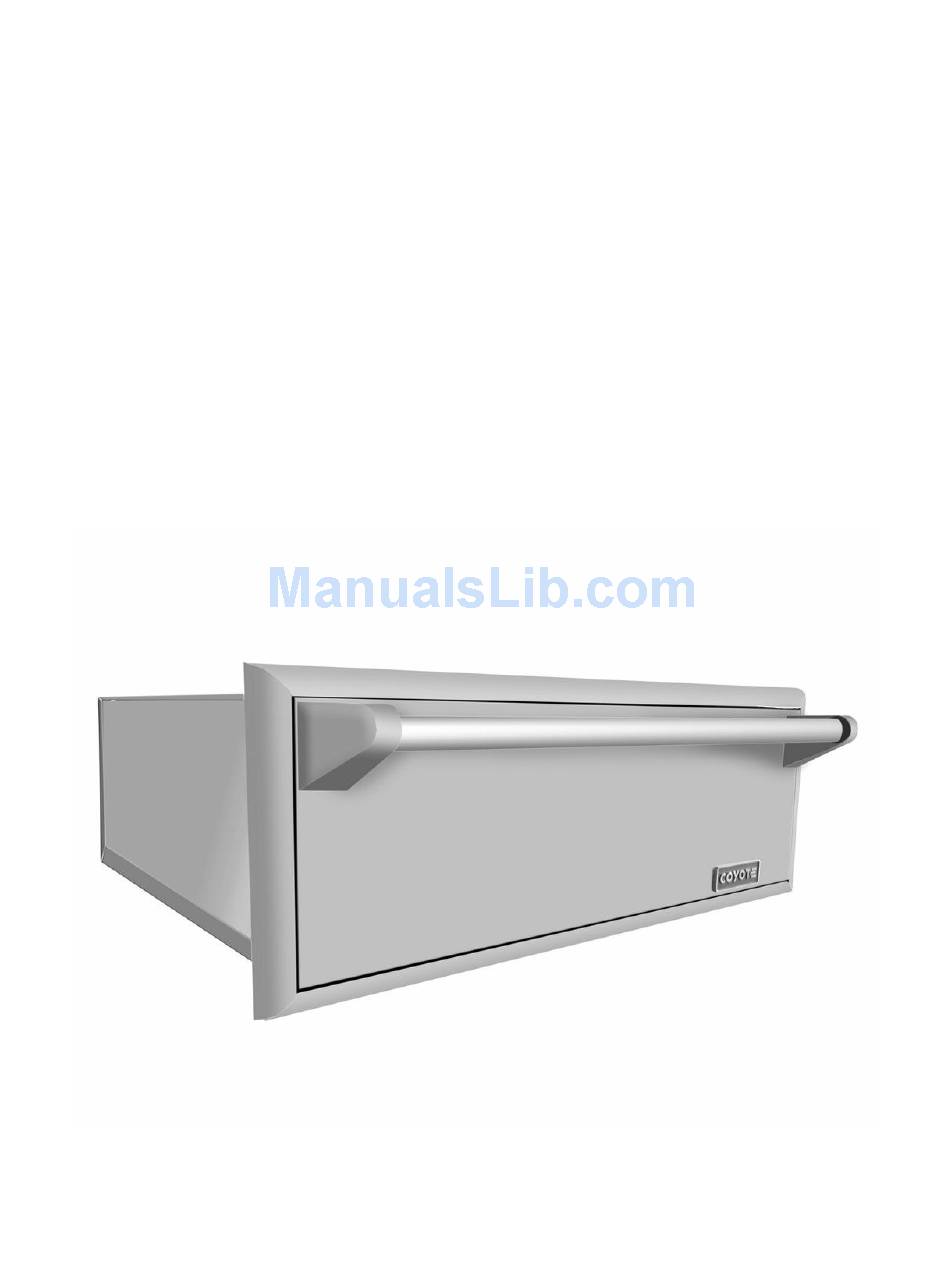

- Page 1 Coyote Warming Drawer Owners Manual...
-
Page 2: Important Instructions
Important Instructions 1. Proper Installation – be sure your appliance is properly installed and grounded by a qualified technician. 2. Never Use Your Appliance for Warming or Heating the Room. 3. Do Not Leave Children Alone – Children should not be left alone or unattended in area where the appliance is in use. - Page 3 DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool.
-
Page 4: Cutout Dimensions
Cutout Dimensions Cutout Measurements for CWD Cutout Width - A 28-1/4" (71.8 cm) Cutout Depth - B 23-1/2" (59.7 cm) Cutout Height - C 9-1/2" (24.1 cm) General Information: • When installing this unit directly below other units, we highly recommend that Coyote built-in products are used. -
Page 5: Electrical Connection
Electrical Connection: • Grounding Instructions: o This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance. •... - Page 6 Apply silicone caulk around the back of the warming drawer trim. Feed supply cord up through hole in rear of warming drawer. Remove strain relief bracket and mounting screws on the terminals. Attach the white (neutral) and black (line) lead to terminals. Attach ground wire to the center terminal.
- Page 7 Push supply cord toward terminal block to relieve strain, reattach supply cord strain relief bracket over supply cord. Slide entire warming drawer cabinet assembly into the cabinet opening. Secure the warming drawer using four #8 mounting screws (four screws provided). Replace drawer assembly.
-
Page 8: Important Safety Information
IMPORTANT SAFETY INFORMATION PLEASE READ AND FOLLOW • Before beginning, please read these instructions completely and carefully. • DO NOT remove permanently affixed labels, warnings, or plates from the product. This may void the warranty. Please observe all local and national codes and ordinances. •... - Page 9 CAUTION CAUTION Hazards or unsafe practices COULD result in minor personal injury or property damage WARNING FIRE AND ELECTRICAL SHOCK HAZARD To reduce the risk of electric shock and fire, DO NOT use a flexible power-supply cord with this appliance. WARNING For outdoor installation, installer must install a ground fault interrupt.
-
Page 10: Limited Warranty
Limited Warranty Coyote Outdoor warrants to the original purchaser at the original site of delivery with proof of purchase of each Outdoor Warming Drawer that when subject to normal residential use, it is free from defects in workmanship and materials for the periods specified below. This warranty excludes grills used in rental and commercial applications.
