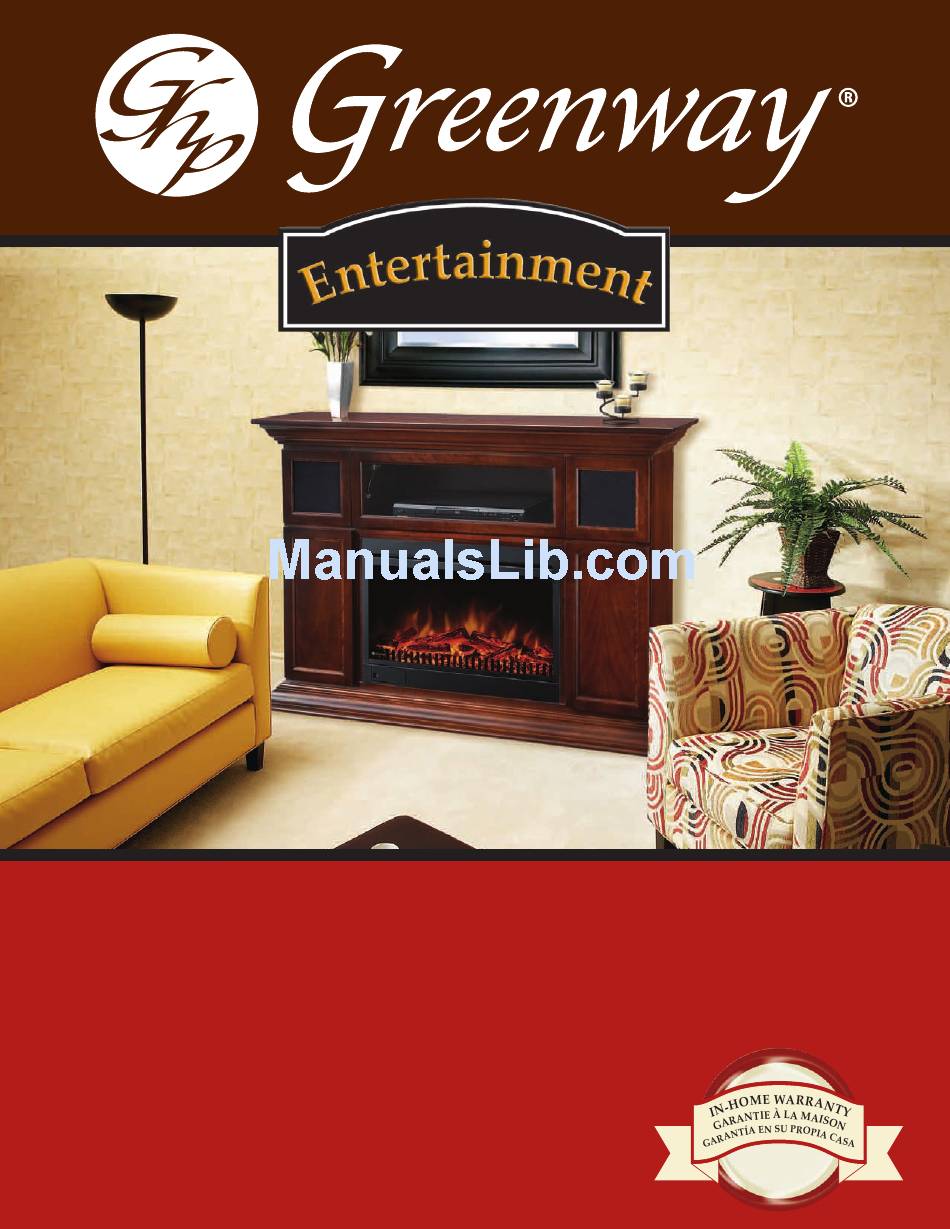

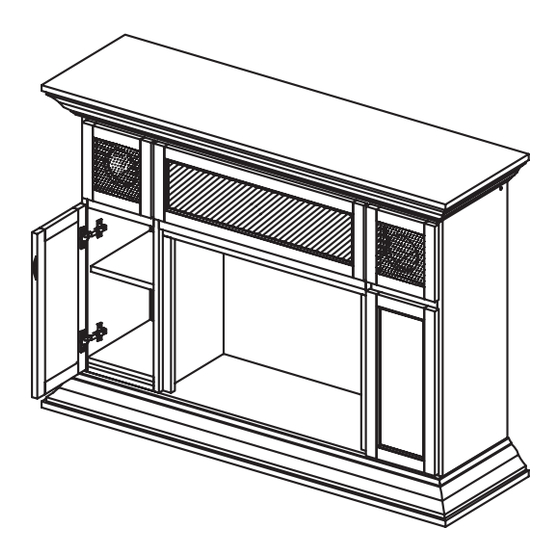

Elegant Fireplace Mantel
Manteau de cheminée élégant
Elegante repisa de chimenea
Assembly Instructions
Instructions d'assemblage
Instrucciones de montaje
GEF252AEE
with integrated sound system
avec système sonore intégré
con sistema de sonido integrado
1
YEAR
ANNÉE
AÑO
REV00
Advertisement
Summary of Contents for Greenway Home Products Entertainment GEF252AEE
- Page 1 Elegant Fireplace Mantel Manteau de cheminée élégant Elegante repisa de chimenea Assembly Instructions Instructions d'assemblage Instrucciones de montaje GEF252AEE with integrated sound system avec système sonore intégré con sistema de sonido integrado YEAR ANNÉE AÑO REV00...
- Page 2 TIPS FOR THE ASSEMBLY OF YOUR NEW MANTEL • Before you begin assembly, locate the instructions and hardware. Take out all the parts and compare them to the diagrams below. Be sure you have all the parts and can identify them. •...
- Page 3 GET READY TO START Before assembly, use scissors to unwrap the parts from the packaging. DO NOT use a box cutter or exacto-knife as you may cut into the mantel pieces inside the box and damage the finish. Check for the hardware bag which is RED and located inside the packaging, taped to the top box.
- Page 4 Step 5 Rear View Locate the left top shelf. Position it on the 4 supports on the left side panels – 2 on the exterior and 2 on the interior panels. From below line up the holes in the supports with those of the top shelf, insert and tighten the 4 wing nuts and lock washers.
- Page 5 Step 9 Locate the support panel for the top of the mantel. Insert the dowels on the side of the support panel into the dowels holes in the left side panel (exterior). Line up the support in the middle of the support panel with the hole in the central top shelf.
- Page 6 Step 14 Locate the left speaker frame. Position the frame inside the opening beneath the top of the mantel. From the back, line up the holes, insert and tighten the 2 wing nut and lock washers. Repeat step 14 for the right speaker frame. Step 15 Locate the central door for the central top shelf.
-
Page 7: Anti-Tipping Device
Step 19 Take your electric firebox out of its packaging and position it between the 2 legs of the mantel. Once you are close to the wall, plug the firebox into the nearest outlet. The firebox comes with 3 metal brackets and 20 black screws. These metal brackets must be attached to both the sides of the firebox and the mantel to ensure that your firebox does not move around as you use it. -
Page 8: Warranty
WARRANTY Greenway Home Products is pleased to offer in-home warranty repairs. Please refer to your Firebox Use and Care Guide for warranty information on your Firebox. DO NOT RETURN THIS PRODUCT TO THE STORE: Please contact Customer Service at: 1-866-253-0447 Monday to Thursday from 8:30 Web: www.greenwayhp.com... - Page 9 Due to the properties of natural wood, Greenway Home Products makes no warranty against mineraling of wood components. Greenway Limited Warranty is void unless the following conditions are adhered to: 1. Warranty registration must be completed and returned to a Greenway Home Products.
