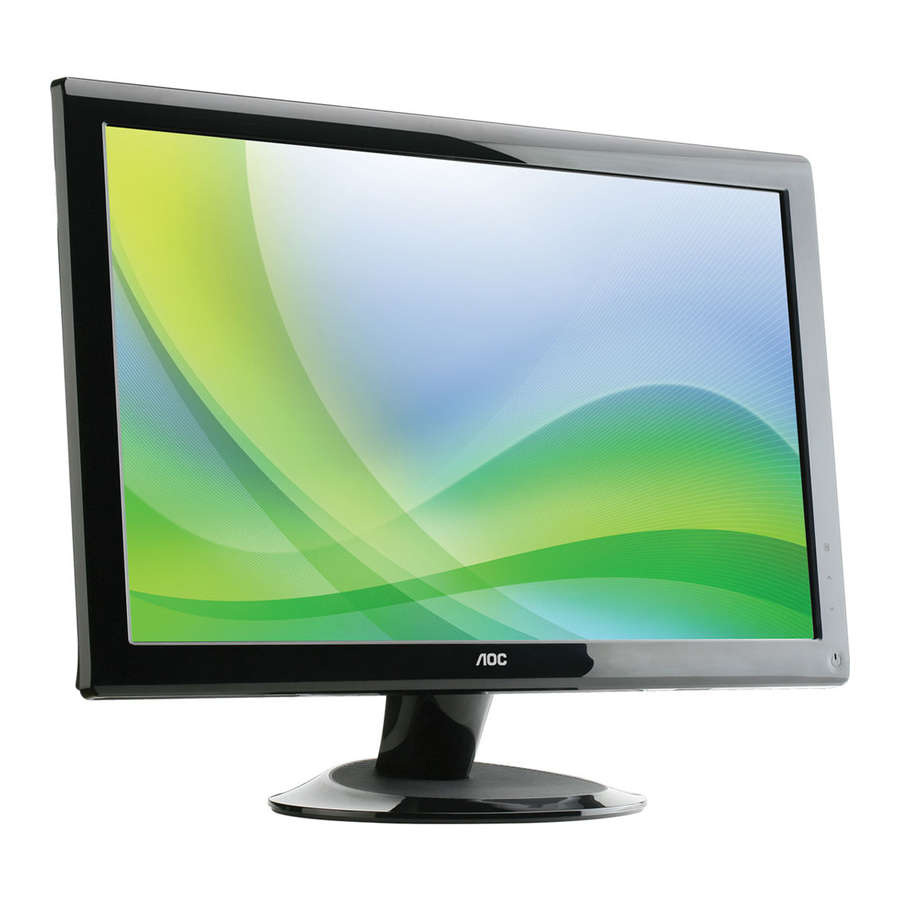

AOC MONITOR
USER`S GUIDE
2436Vwa
SAFETY INTRODUCTION......................................................................2
SETUP.................................................................................................3
ADJUSTING......................................................................................... 6
DRIVER INSTALLATION GUIDE...........................................................16
PRODUCT INFORMATION...................................................................23
TROUBLESHOOT.................................................................................26
|
P a g e
١
Advertisement
Related Manuals for AOC 2436Vwa
Summary of Contents for AOC 2436Vwa
-
Page 1: Table Of Contents
AOC MONITOR USER`S GUIDE 2436Vwa SAFETY INTRODUCTION…………………………………………………………….2 SETUP…………………………………………………………………………………….3 ADJUSTING…………….…………………………………………………...…………. 6 DRIVER INSTALLATION GUIDE…………………….….…………………………16 PRODUCT INFORMATION………………………………………………………….23 TROUBLESHOOT……...………………………………………………………….…..26 P a g e ١... -
Page 2: Safety Introduction
SAFETY INTRODUCTION The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. - Page 3 Clean the cabinet regularly with the cloth provided. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface Please disconnect the power cord before cleaning the product.
-
Page 4: Setup
SETUP Not all signal cables (Analog, DVI, USB, Audio, and HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. Please setup or remove the base following the steps as below. P a g e ۴... - Page 5 Setup: Remove: For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. ...
- Page 6 Cable Connections On Back of Monitor and Computer 1. Power 2. Analog (DB-15 VGA cable) 3.Audio 4.DVI To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
-
Page 7: Adjusting
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps: Remove the base. Follow the manufacturer's instructions to assemble the wall mounting arm. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor. - Page 8 4 Click Personalization 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to 1920 by 1080. P a g e ٨...
- Page 9 For Windows XP: 1 Click START. 2 Click SETTINGS.3 Click CONTROL PANEL. 4 Click Appearance and Themes. 5 Double click DISPLAY. P a g e ٩...
- Page 10 6 Click SETTINGS. 7 Set the resolution SLIDE-BAR to 1920 by 1080. For Windows ME/2000: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to 1920 by 1080. P a g e ١٠...
-
Page 11: Osd Setting
HOTKEYS Power Press to turn on or turn off the monitor. 4:3 or wide / Up Press key to change the screen aspect ratio between standard 4：3format or Wide format. When the input resolution the main menu or sub-menu is active, the key functions as to select up or increase value. - Page 12 Eco mode ---DCR, Standard, Text, Internet, Game, Movie, Sports Standard P a g e ١٢...
- Page 13 TEXT INTERNET Game P a g e ١٣...
- Page 14 Movie Sports Notes : When Eco mode is not set as “Standard”, Contrast and Brightness can not be adjusted; When DCR is set as “On”, Contrast, Brightness, Eco mode and Gamma can not be adjusted. P a g e ١۴...
- Page 15 LED INDICATOR Status LED Color Full Power Mode Blue Active-off Mode Orange P a g e ١۵...
-
Page 16: Driver Installation Guide
DRIVER INSTALLATION GUIDE Windows 2000 1. Start Windows® 2000 2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. 3. Double click on the 'Display' Icon. 4. Select the 'Settings' tab then click on 'Advanced...'. 5. - Page 17 3. Select and click on the category ‘Appearance and Themes’ 4. Click on the 'Display' Item. 5. Select the 'Settings' tab then click on the 'Advanced' button. P a g e ١٧...
- Page 18 6. Select 'Monitor' tab - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below. 7. Click on the 'Driver' tab and then click on 'Update Driver...' button. 8.
- Page 19 9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. 10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive). 11.
-
Page 20: Windows Vista
Windows Vista 1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization". 2. Click "Personalization" and then "Display Settings". 3. Click "Advanced Settings...". P a g e ٢٠... - Page 21 4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". 5.
- Page 22 Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive). 8. Select your monitor model and click on the 'Next' button. 9. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence. I_MENU Welcome to “i-Menu”...
-
Page 23: Product Information
PRODUCT INFORMATION model name 2436Vwa Driving system TFT Color LCD Viewable Image Size 598.09mm diagonal Pixel pitch 0.2715mm(H) x 0.2715mm(V) LCD Panel Video R, G, B Analog lnterface & Digital Interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 148.5 MHz... - Page 24 Preset Display Modes HORIZONTAL VERTICAL STAND RESOLUTION FREQUENCY(kHZ) FREQUENCY(Hz) 640×480 @60Hz 31.469 59.940 640×480 @67Hz 35.000 66.667 640×480 @72Hz 37.861 72.809 640×480 @75Hz 37.500 75.000 Dos-mode 720×400 @70Hz 31.469 70.087 SVGA 800×600 @56Hz 35.156 56.250 SVGA 800×600 @60Hz 37.879 60.317 SVGA 800×600 @72Hz 48.077...
- Page 25 Pin Assignments Pin Number 15-Pin Side of the Signal Cable Video-Red Video-Green Video-Blue N.C. Detect Cable GND-R GND-G GND-B Ground N.C. DDC-Serial data H-sync V-sync DDC-Serial clock PLUG & PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
-
Page 26: Troubleshoot
TROUBLESHOOT Problem & Possible Solutions Question Make sure the power button is ON and the Power Cord is properly connected to a Power LED Is grounded power outlet and to the monitor. Not ON Is the power cord connected properly? Check the power cord connection and power supply. - Page 27 look white) Horizontal or Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS. vertical Press to auto-adjust. disturbances on the screen P a g e ٢٧...
