Connect Battery
c
CAUTION: Avoid injury! Prevent Battery Explosions:
• Keep sparks, lighted matches, and open flame away
from the top of battery. Battery gas can explode.
• Never check battery charge by placing a metal object
across the posts. Use a volt-meter or hydrometer.
• Do not charge a frozen battery; it may explode. Warm
battery to 16 degrees C (60 degrees F).
c

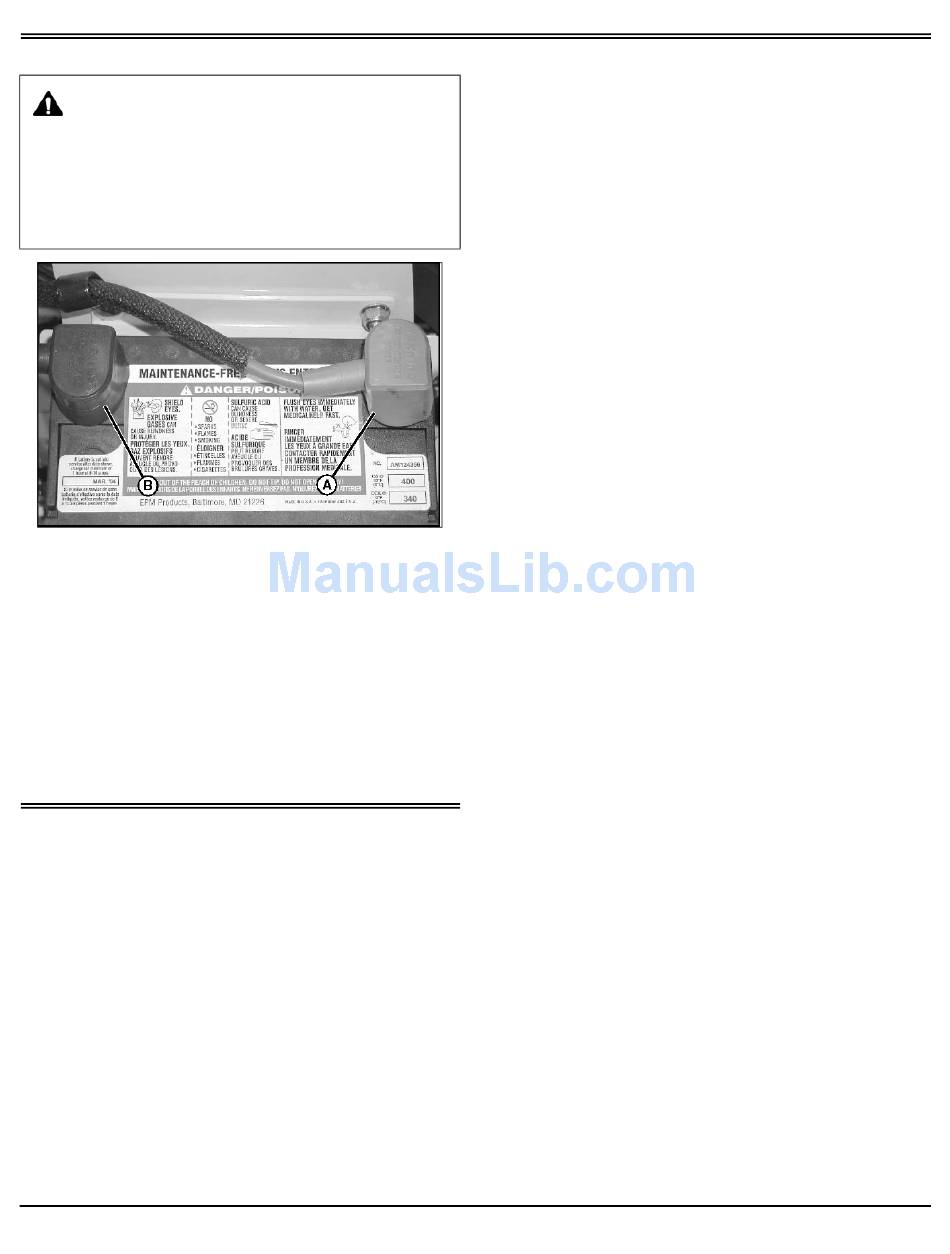

1. Connect positive (red) cable to battery positive (+) terminal. Install red
terminal cover (A).
2. Connect negative (black) cable to battery negative (-) terminal. Install
black terminal cover (B).
Check Mower Deck Level
The mower deck is assembled and adjusted at the factory. After machine
is completely assembled, check the mower front-to-rear and side-to-side
deck level.
Check Machine Safety Systems
Perform safety system check to make sure the electronic safety interlock
circuit is functioning properly.

Specifications

Engine
Note: See engine manufacturer's owner's manual provided with your
machine for engine specifications.
Drivetrain
Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Dual Hydrostatic
Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydro-Gear BDP-10A
Wheel Motors . . . . . . . . . . . . . . . . . . . . . . . . . . Hydro-Gear HGD-12-1792
Number of Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Infinitely Variable
Electrical System
Charging System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Amp
Ignition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flywheel
SPECIFICATIONS
Starter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Solenoid Shift
Fuel System
Fuel Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gasoline, Regular Unleaded
Fuel Tank Location. . . . . . . . . . . . . . . . . . . . . . . On Right Side of Operator
Fuel Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.7 L (6.0 gal)
Steering and Brakes
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Dual Control Levers
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic
Park Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tire Contact
Tires
Rear (Model 647). . . . . . . . . . . . . . . . . . . . . . . . 20 x 8-8 (with 48 in. deck)
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 x 5-6
Rear (Models 657, 667) . . . . . . . . . .20 x 10-8 (with 54 in. and 60 in. deck)
Inflation Rear (Maximum)
Inflation Front (Maximum) . . . . . . . . . . . . . . . . . .110–138 kPa (16–20 psi)
Battery
Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-volt
CCA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340-amp
Reserve Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 minutes
BCI Group Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . U1L
Capacities
Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.7 L (6 gal)
Hydraulic Oil (With Filter). . . . . . . . . . . . . . . . . . . . . . . . . . . 3.1 L (3.3 qt)
Engine Oil (With Filter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9 L (2.0 qt)
Travel Speeds at Full Engine RPM
Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0–14.8 km/h (0–9.2 mph)
Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0–6.4 km/h (0–4 mph)
Dimensions
Wheel Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.32 m (52 in.)
Overall Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.14 m (45 in.)
Overall Length (Model 647) . . . . . . . . . . . . . . . . . . . . . . . . 1.6 m (65.5 in.)
Overall Length (Model 657 and Model 667) . . . . . . . . . . . 1.7 m (68.5 in.)
Overall Width (48 inch deck with chute up) . . . . . . . . . . 1.36 m (53.5 in.)
Overall Width (48 inch deck with chute down) . . . . . . . . . . 1.57 m (62 in.)
Overall Width (54 inch deck with chute up) . . . . . . . . . . 1.46 m (57.5 in.)
Overall Width (54 inch deck with chute down) . . . . . . . . . . 1.73 m (68 in.)
Overall Width (60 inch deck with chute up) . . . . . . . . . . 1.61 m (63.5 in.)
Overall Width (60 inch deck with chute down) . . . . . . . . . . 1.88 m (74 in.)
Recommended Lubricants
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . See Applicable Engine Manual
Hydraulic Oil . . . . . . . . . . . . . . . . . . . . 5W-50 or 15W-50 All Synthetic Oil
Grease: (This may change for high-speed applications such as
cutting units)
. . . . . . . . . . . . . . . . All-Purpose Grease with an NLGI Grade No. 2 Rating
(Specifications and design subject to change without notice.)
