Dell Precision
T3500 Workstation Technical Guide
Dell Precision™ T3500
Technical Guide
Dell Precision T3500
# 910006958
P L E A S E S E E I M P O R T A N T I N F O R M A T I O N O N P A G E 8
P
1
2 5
A G E
O F

Advertisement

Table of Contents
loading

Related Manuals for Dell Precision T3500

Summary of Contents for Dell Precision T3500

  • Page 1 Dell Precision™ T3500 Technical Guide Dell Precision T3500 # 910006958 P L E A S E S E E I M P O R T A N T I N F O R M A T I O N O N P A G E 8...
  • Page 2 Experience the power, scalability, and reliability you’ve been dreaming about with a system that’s specifically designed for professionals as demanding as their complex applications. To provide you with exceptional flexibility and scalability, the Dell Precision T3500 comes with your choice of dual- or quad-core Intel® Xeon® processors. The T3500 builds upon the revolutionary Intel Xeon Processor X5500 Series micro-architecture to bring you a workstation with an excellent blend of relevant technologies.
  • Page 3 Dell Precision T3500 provides a highly scalable architecture that delivers outstanding speed and reliability to the cost-conscious professional. Imagine having the freedom to work the way you’ve always wanted. With Dell Precision, you can. Plus with ISV application certifications, you know your system is performance-tuned to help ensure that your applications will run smoothly.
  • Page 4 T3500 Workstation Technical Guide Users of T3500 The Dell Precision T3500 is targeted at the entry-level personal & traditional workstation markets. This market is typically comprised of the following segments: software engineering, DCC (graphic design, pre-press, digital video editing, etc), 2D & entry 3D graphics, entry CAD, AEC, SCI (Medical), expert office and GIS class of applications.
  • Page 5 T3500 Workstation Technical Guide Applications and ISV Certifications To meet the needs of demanding workstation users, Dell demands that professional workstation applications are rigorously tested and certified by the ISV (Independent Software Vendor) so that customers can be assured the maximum level of performance, functionality, and reliability of their solution.
  • Page 6 ™ Dell Precision T3500 Workstation Technical Guide P L E A S E S E E I M P O R T A N T I N F O R M A T I O N O N P A G E 8...
  • Page 7 EnergyStar What is Energy Star? Energy Star 5.0 is a configurable option on the new Dell Precision T3500 workstation. ENERGY STAR® qualified products and practices help you save money and can reduce greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S.
  • Page 8 5. The T3500 uses a very efficient Active Power Factor Correction (APFC) power supply. Dell recommends only Universal Power Supplies (UPS) based on Sine Wave output for APFC PSUs, not an approximation of a Sine Wave, Square Wave or quasi-Square Wave (see UPS Technical Specifications).
  • Page 9 ™ Dell Precision T3500 Workstation Technical Guide Detailed Technical Overview Configuration Specifications P L E A S E S E E I M P O R T A N T I N F O R M A T I O N O N P A G E 8...

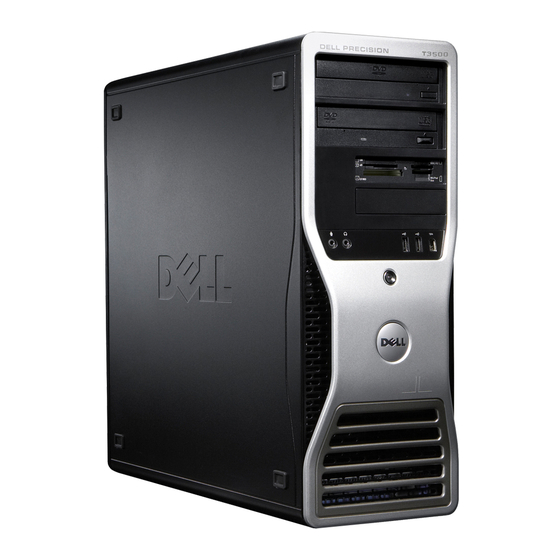

  • Page 10 T3500 Workstation Technical Guide T3500 Front View optical drive eject button Flexbay drive activity light USB 2.0 connectors Dell rotatable badge power button, power light headphone connector microphone connector network link light 10 diagnostic lights (4) 11 optical drives (2)
  • Page 11 ™ Dell Precision T3500 Workstation Technical Guide T3500 Rear View P L E A S E S E E I M P O R T A N T I N F O R M A T I O N O N P A G E 8...

  • Page 12: Operating System

    ™ Dell Precision T3500 Workstation Technical Guide System Configurations NOTE: Offerings may vary by region. Operating System NOTE: One of the following Operating Systems will be preinstalled. Windows Vista® operating system Windows Vista® Ultimate (32 and 64-bit), Windows Vista® Business (32 and 64-bit) Windows XP®...
  • Page 13 ™ Dell Precision T3500 Workstation Technical Guide Memory Your computer supports a maximum of 24GB of memory; however, 32-bit operating systems, such as the 32-bit version of Microsoft® Windows® Vista, can only use a maximum of 4GB of address space. Moreover, certain components within the computer require address space in the 4GB range.

  • Page 14: Graphics Cards

    ™ Dell Precision T3500 Workstation Technical Guide (4x1GB DIMM) (2x2GB DIMM) (6x1GB DIMM) (3x2GB DIMM) 12GB (6x2GB DIMM) 12GB (3x4GB DIMM) 1333MHz DDR3 ECC Memory Configurations (4x1GB DIMM) (2x2GB DIMM) (6x1GB DIMM) (3x2GB DIMM) 12GB (6x2GB DIMM) 12GB (3x4GB DIMM)
  • Page 15 ™ Dell Precision T3500 Workstation Technical Guide NVIDIA Quadro FX 4800 64-bit Frame buffer bus width 150W Maximum Power Consumption Overlay Planes 32-bit Maximum Color Depth 85 Hz Maximum Vertical Refresh Rate Multiple Display Support OpenGL® 2.1 & DirectX® 10...
  • Page 16 ™ Dell Precision T3500 Workstation Technical Guide Nvidia Quadro FX 1800 64-bit Frame buffer bus width Maximum Power Consumption Overlay Planes 32-bit Maximum Color Depth 85 Hz Maximum Vertical Refresh Rate Multiple Display Support OpenGL® 3.0 & DirectX® 10 Operating Systems Graphics/ Video API Support...
  • Page 17 ™ Dell Precision T3500 Workstation Technical Guide Nvidia NVS 295 256MB DDR3 with memory bandwidth up to 11.2 Frame Buffer Memory (onboard and shared) Size and Speed GB/sec 64-bit Frame buffer bus width Maximum Power Consumption Overlay Planes 32-bit Maximum Color Depth...
  • Page 18 ™ Dell Precision T3500 Workstation Technical Guide ATI FirePro V5700 GPU Core Clock 512MB GDDR3 with memory bandwidth up to 28.8 Frame Buffer Memory (onboard and shared) Size and Speed GB/sec 64-bit Frame buffer bus width Maximum Power Consumption Overlay Planes...
  • Page 19 Media Card Reader: Dell 19 in 1 Media Card Reader P L E A S E S E E I M P O R T A N T I N F O R M A T I O N O N P A G E 8...
  • Page 20 Kensington Lock, Loop Lock, Internal front panel chassis lock Hardware Communications Network Adapter Integrated BroadCom® 5761 Gigabit Ethernet controller with Remote Wake UP and PXE support Dell 56K v.92 Data/Fax PCI Modem Modem Broadcom® 5761 Gigabit Ethernet Controller External Connector Type RJ45...
  • Page 21 ™ Dell Precision T3500 Workstation Technical Guide Broadcom® 5761 Gigabit Ethernet Controller 802.3, 802.3ab, 802.3u IEEE standards compliance (example 802.1P) Hardware Certifications (example FCC, B, GS mark…) Boot ROM Support PXE, RPL Network Transfer Mode Network Transfer Rate Full duplex at 10, 100, or 1000 Mbps and half duplex at 10 or 100 Mbps.

  • Page 22: Keyboard And Mouse

    Dell ProSupport Optional Data Protection Optional Asset Protection Optional For copy of Ltd Hardware Warranty, write Dell USA LP, Attn: Warranties, One Dell Way, Round Rock, TX 78682 or see www.dell.com/warranty. Software Dell Control Point Standard Wave EMBASSY® Trust Suite...
  • Page 23 ™ Dell Precision T3500 Workstation Technical Guide P L E A S E S E E I M P O R T A N T I N F O R M A T I O N O N P A G E 8...

  • Page 24: Detailed Engineering Specifications

    ™ Dell Precision T3500 Workstation Technical Guide Detailed Engineering Specifications System Dimensions (Physical) NOTE: System Weight* is based on a typical configuration and may vary based on PC configuration. Chassis Dimensions Height 17.64”/44.8cm Width 6.73”/17.1cm Depth 18.54”/47.1cm Weight 39lbs./17.7kg System Level Environmental and Operating Conditions...
  • Page 25 ™ Dell Precision T3500 Workstation Technical Guide Minimum Efficiency ( Energy Star Compliant) Energy Star 5.0 Compliant Power Supply EPEAT Gold P L E A S E S E E I M P O R T A N T I N F O R M A T I O N O N P A G E 8...
