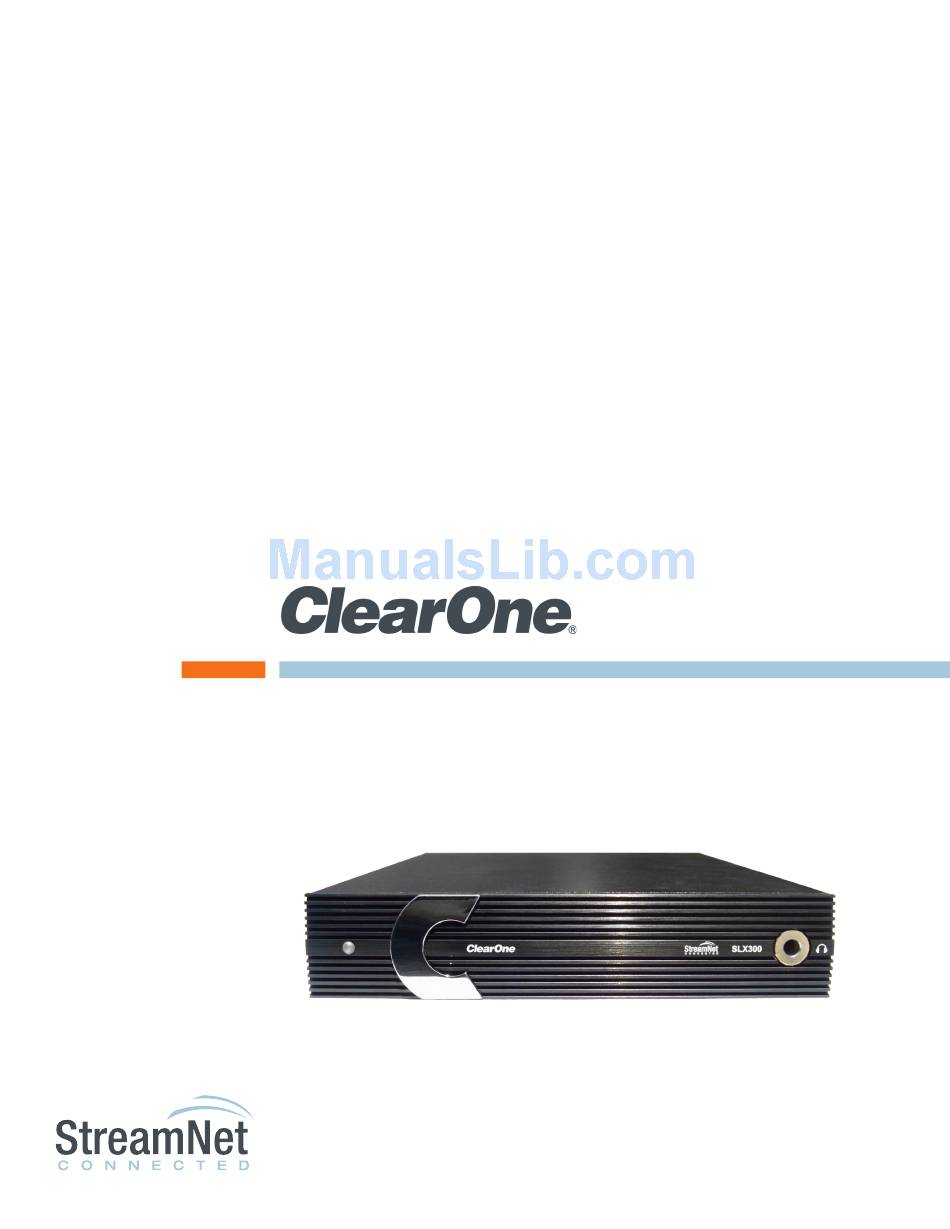

- Page 1 VIEW™ SLX300 S X™ ip Z peaker mpLifier nStaLLation and etup uide AVoIP™...
- Page 2 Lear oCument 800-000-000-08 Rev 1.1 - June 13, 2012 © 2012 ClearOne and NetStreams - All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne and NetStreams.
-
Page 3: Table Of Contents
Table of Contents Important Safety Notices Chapter 1: Installing the SLX300 ....................1 Connections and Indicators ..............................1 Ethernet Connection ...............................2 EIM Connection (Expansion Interface Module) ......................2 Speaker Connections ..............................2 Balanced Audio Connections ............................2 LED Indicators ................................2 Monitoring Jack ................................2 Power Connection ................................2 Chapter 2: SLX300 Setup ......................3 SLX300 Screens in the Dealer Setup Program .........................3 Adding an SLX300 to a Project ............................3... -
Page 4: Important Safety Notices
Important Safety Notices Read these warnings, heed all warnings, and keep for future reference. • Clean only with a dry cloth. • Do not use this apparatus near water. » CAUTION: To reduce the risk of electrical shock, do not expose this appliance to rain or moisture. -
Page 5: Chapter 1: Installing The Slx300
Chapter 1: Installing the SLX300 The SLX300 SpeakerLinX is a high power, networked audio amplifier. This amplifier may be mounted any distance from the speaker location; however, longer speaker wires may result in some distortion of the audio waveform. In addition to being a very capable amplifier, the SLX300 can also function as the zone or room controller and has a built-in web server which can provide a user interface. -
Page 6: Ethernet Connection
thernet onneCtion The 10/100 Ethernet connector allow connection to a TCP/IP network that is setup to run StreamNet. Using a standard (straight through) Category-5 or Category-6 Ethernet cable, connect the Ethernet port on the SLX300 to an available port on your network router or switch. eim C onneCtion XpanSion... -
Page 7: Chapter 2: Slx300 Setup
Chapter 2: SLX300 Setup The SLX300 is setup for use in a commercial or residential network using the StreamNet Dealer Setup program and the StreamNet Dealer Setup manual. StreamNet Dealer Setup is a PC-based program that allows you to configure devices so that they can communicate across a StreamNet network. -
Page 8: Configuring The Slx300
IR/KeyLinX - This drop-down menu lets you select from two models of KeyLinX (KL10X and KL20X), one model of IRLinX (IRL1), and two combination models (for chaining an IRLinX off a KeyLinX) (IRL1 & KL10X, and IRL1 & KL20X). The KL20X offer a microphone and a TALK button for the IP intercom feature. - Page 9 SLX300 Dealer Setup - Audio Tab SLX300 Dealer Setup - Audio Port Tab Chapter 2: SLX300 Setup...
- Page 10 SLX300 Dealer Setup - Stream Tab SLX300 Dealer Setup - IR/KeyLinX Tab TechSales StreamNet Design Help: 1.800.705.2103...
- Page 11 SLX300 Dealer Setup - IR/Tab Chapter 2: SLX300 Setup...
-
Page 12: Chapter 3: Mounting Options
Chapter 3: Mounting the SLX300 By varying the use of the included mounting brackets, screws and the joiner plate, one or two SLX300 units can be mounted in different ways: • Under surface mount • Wall mount or top surface mount • Rack mount (dual with joiner plate) The following illustrations show how each of these is accomplished using the mounting brackets, screws, filler plate and the joiner plate:... - Page 13 Underside of Two SLX300s Prepared for Front Attachment Rack Mount with Joiner Plate Two SLX300s Prepared for Front Attachment Rack Mount with Joiner Plate Two SLX300s Prepared for Rear Attachment Rack Mount with Joiner Plate Chapter 3: Mounting the SLX300...
-
Page 14: Chapter 4: Compliance
Any modifications to the device without express authorization from ClearOne is prohibited as per 47CFR15.21 and could void the users authority to operate the device. European Compliance Details on European equipment compliance can be found on the ClearOne website at the following location: www.ClearOne.com/resources/EuroDOC.php. TechSales StreamNet Design Help: 1.800.705.2103... -
Page 15: Chapter 5: Service And Support
All product returns require a Return Material Authorization (RMA) number. Contact ClearOne Technical Support before returning your product. Make sure you return all the items and packing materials that originally shipped with your product. The Power of AV over IP™...
