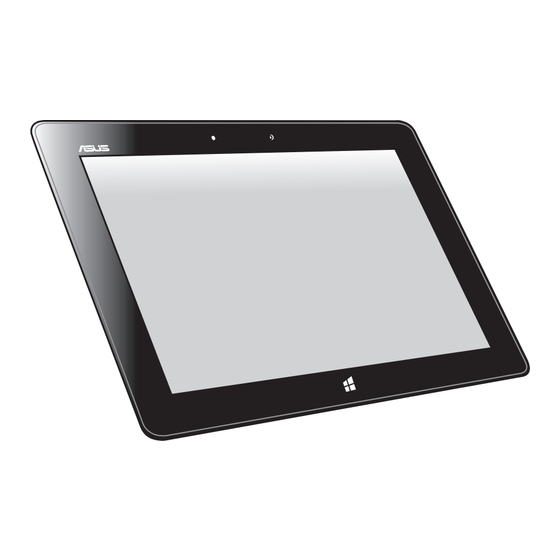

Asus VivoTab User Manual

Hide thumbs

Advertisement

Quick Links

E7895
VivoTab User Manual
ASUS is devoted to creating environment-friendly products
and packaging to safeguard consumers' health while
minimizing the impact on the environment. The reduction
of the number of the manual pages complies with the
reduction of carbon emission.
For the detailed user manual and related information, refer
to the user manual included in the VivoTab or visit the ASUS
Support Site at http://support.asus.com/.
E7895_ME400C_Series_User_Manual_1 1
11/30/12 10:40:23 AM

Advertisement

loading

  Also See for Asus VivoTab

  Related Manuals for Asus VivoTab

  Summary of Contents for Asus VivoTab

  • Page 1 For the detailed user manual and related information, refer to the user manual included in the VivoTab or visit the ASUS Support Site at http://support.asus.com/. E7895_ME400C_Series_User_Manual_1 1...
  • Page 2: Charging Your Batteries

    VivoTab is in use. IMPORTANT! Do not leave the VivoTab connected to the power supply once it is fully charged. VivoTab is not designed to be left connected to the power supply for extended periods of time.
  • Page 3: Package Contents

    Power adapter Technical documentations Cleaning cloth and warranty card NOTES: • If any of the items is damaged or missing, contact your retailer. • The bundled power adapter varies with country or region. ASUS VivoTab E7895_ME400C_Series_User_Manual_3 3 11/30/12 10:40:24 AM...
  • Page 4: Front View

    Your VivoTab Front view Front camera This built-in 2-megapixel camera allows you to take pictures or record videos using your VivoTab. Camera indicator The camera indicator lights up when either of the built-in cameras is in use. Ambient light sensor The ambient light sensor detects the amount of light in your environment.
  • Page 5 Touch screen panel The touch screen panel allows you to operate your VivoTab using touch gestures or a stylus pen. Windows® 8 touch button Touch this button to go back to the Start screen. If you are already in the Start screen, touch this button to go back to the last app you opened.
  • Page 6: Rear View

    This port allows you to connect the VivoTab’s audio- out signal to amplified speakers or headphones. You can also use this port to connect your VivoTab to an external microphone. IMPORTANT! For microphone input function, the jack only supports headset microphone.
  • Page 7 Manual reset hole If the system becomes unresponsive, insert a straightened paper clip into the hole to force-restart your VivoTab. IMPORTANT! Forcing the system to restart may result to data loss. We strongly recommend that you back up your data regularly.
  • Page 8 VivoTab. Power button Press the power button to turn your VivoTab on, put it to sleep or hibernate and wake it up from sleep or hibernate mode. Press and hold the power button for about five (5) seconds to force shut down your VivoTab when it becomes unresponsive.
  • Page 9 Built-in NFC (Near Field Communication) tag The built-in NFC tag allows you to conveniently share contacts, pictures, business cards, and other files. To use the NFC tag, put your VivoTab’s NFC tag near another NFC-enabled device. Audio speaker Your VivoTab is equipped with a built-in high quality stereo speaker.
  • Page 10 Charging your VivoTab To charge your VivoTab: Connect the micro USB cable to the power adapter. Plug the micro USB connector into your VivoTab. Plug the power adapter into a grounded socket outlet. ASUS VivoTab E7895_ME400C_Series_User_Manual_10 10 11/30/12 10:40:29 AM...
  • Page 11 DC5V, 2A. • Do not leave the VivoTab connected to the power supply once it is fully charged. VivoTab is not designed to be left connected to the power supply for extended periods of time. • When using your VivoTab on power adapter mode, the grounded socket outlet must be near to the unit and easily accessible.
  • Page 12 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ASUS VivoTab E7895_ME400C_Series_User_Manual_12 12 11/30/12 10:40:30 AM...
  • Page 13: Rf Exposure Information (Sar)

    SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: MSQK0X. ASUS VivoTab E7895_ME400C_Series_User_Manual_13 13 11/30/12 10:40:30 AM...
  • Page 14: Canada, Industry Canada (Ic) Notices

    Canada’s REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/app/sitt.reltel/srch/nwRdSrch.do?lang=eng Additional Canadian information on RF exposure also can be found at the following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html ASUS VivoTab E7895_ME400C_Series_User_Manual_14 14 11/30/12 10:40:30 AM...
  • Page 15: Canada, Avis D'industrie Canada (Ic)

    à des appareils portables. Ce périphérique est homologué pour l’utilisation au Canada. Pour consulter l’entrée correspondant à l’appareil dans la liste d’équipement radio (REL - Radio Equipment List) d’Industrie Canada rendez-vous sur: http://www.ic.gc.ca/app/sitt.reltel/srch/nwRdSrch.do?lang=eng ASUS VivoTab E7895_ME400C_Series_User_Manual_15 15 11/30/12 10:40:30 AM...
  • Page 16: Ec Declaration Of Conformity

    ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
  • Page 17: Prevention Of Hearing Loss

    UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
  • Page 18: Ce Mark Warning

    Council’s recommended limit for mobile devices is the “Specific Absorption Rate” (SAR), and the SAR limit is 2.0 W/Kg averaged over 10 gram of body tissue. It meets the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP). ASUS VivoTab E7895_ME400C_Series_User_Manual_18 18 11/30/12 10:40:31 AM...
  • Page 19: Power Safety Requirement

    H05VV-F, 3G, 0.75mm or H05VV-F, 2G, 0.75mm ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials.
  • Page 20: Coating Notice

    I/O ports are located. IDA Singapore Standard The Infocomm Development Authority of Singapore (IDA) certifies that this product passed the standards and regulations. ASUS VivoTab E7895_ME400C_Series_User_Manual_20 20 11/30/12 10:40:31 AM...
  • Page 21: Proper Disposal

    (electrical, electronic equipment and mercury- containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products. DO NOT throw the VivoTab in fire. DO NOT short circuit the contacts. DO NOT disassemble the VivoTab. ASUS VivoTab...
  • Page 22: Copyright Information

    ASUSTeK COMPUTER INC. (“ASUS”). ASUS and VivoTab logo are trademarks of ASUSTek Computer Inc. Information in this document is subject to change without notice.
