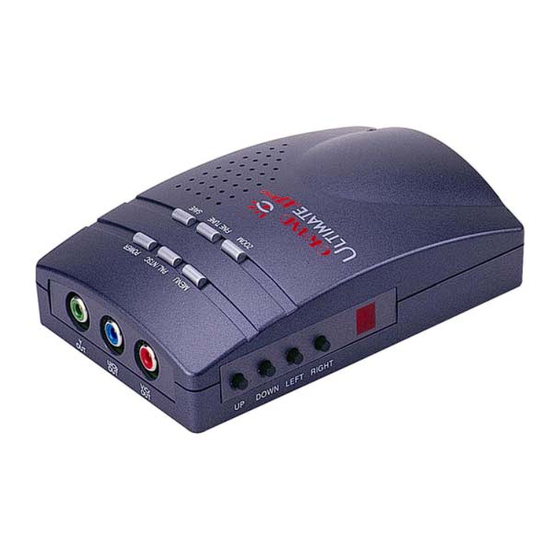

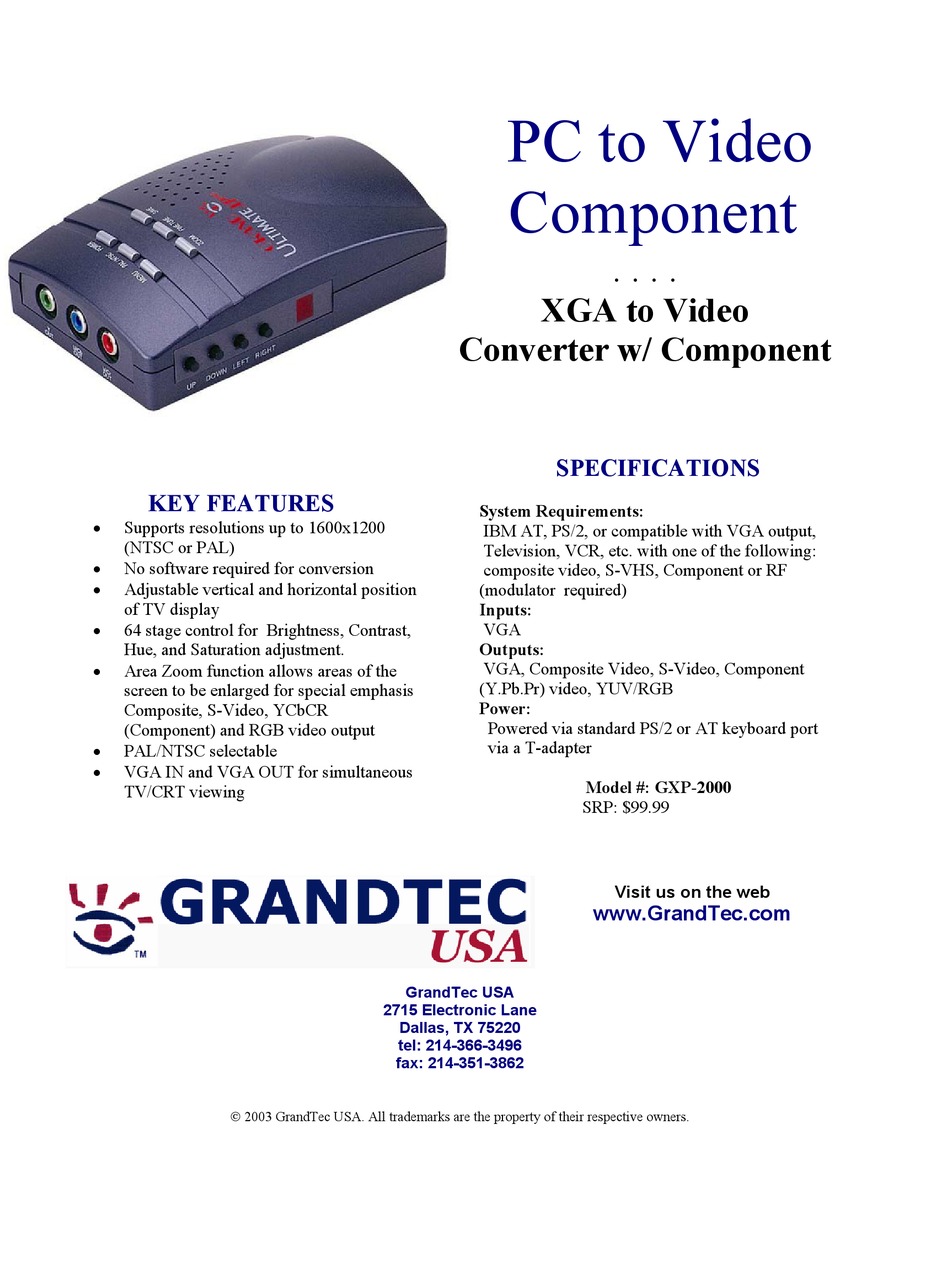

GrandTec PC to Video Component GXP-2000 Specifications

KEY FEATURES

•
Supports resolutions up to 1600x1200
(NTSC or PAL)
•
No software required for conversion
•
Adjustable vertical and horizontal position
of TV display
•
64 stage control for Brightness, Contrast,
Hue, and Saturation adjustment.
•
Area Zoom function allows areas of the
screen to be enlarged for special emphasis
Composite, S-Video, YCbCR
(Component) and RGB video output
•
PAL/NTSC selectable
•
VGA IN and VGA OUT for simultaneous
TV/CRT viewing
 2003 GrandTec USA. All trademarks are the property of their respective owners.
PC to Video
Component
XGA to Video
Converter w/ Component

SPECIFICATIONS

System Requirements:
IBM AT, PS/2, or compatible with VGA output,
Television, VCR, etc. with one of the following:
composite video, S-VHS, Component or RF
(modulator required)
Inputs:
VGA
Outputs:
VGA, Composite Video, S-Video, Component
(Y.Pb.Pr) video, YUV/RGB
Power:
Powered via standard PS/2 or AT keyboard port
via a T-adapter
GrandTec USA
2715 Electronic Lane
Dallas, TX 75220
tel: 214-366-3496
fax: 214-351-3862
. . . .
Model #: GXP-2000
SRP: $99.99
Visit us on the web
www.GrandTec.com
