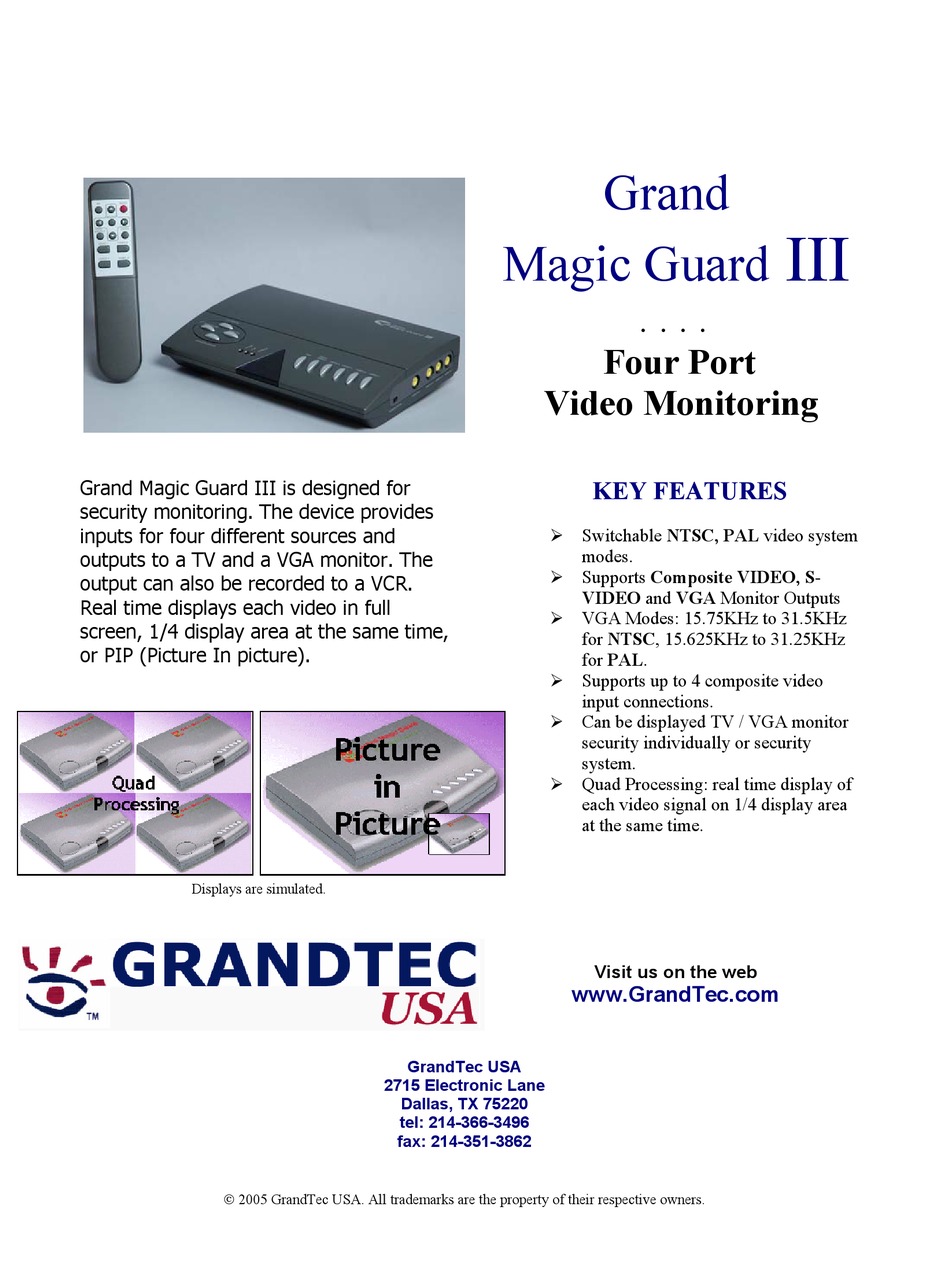

GrandTec Grand Magic Guard III Datasheet

Grand Magic Guard III is designed for
security monitoring. The device provides
inputs for four different sources and
outputs to a TV and a VGA monitor. The
output can also be recorded to a VCR.
Real time displays each video in full
screen, 1/4 display area at the same time,
or PIP (Picture In picture).
Displays are simulated.
 2005 GrandTec USA. All trademarks are the property of their respective owners.
Magic Guard
Video Monitoring
GrandTec USA
2715 Electronic Lane
Dallas, TX 75220
tel: 214-366-3496
fax: 214-351-3862
Grand
. . . .
Four Port

KEY FEATURES

Switchable NTSC, PAL video system
modes.
Supports Composite VIDEO, S-
VIDEO and VGA Monitor Outputs
VGA Modes: 15.75KHz to 31.5KHz
for NTSC, 15.625KHz to 31.25KHz
for PAL.
Supports up to 4 composite video
input connections.
Can be displayed TV / VGA monitor
security individually or security
system.
Quad Processing: real time display of
each video signal on 1/4 display area
at the same time.
Visit us on the web
www.GrandTec.com
III
