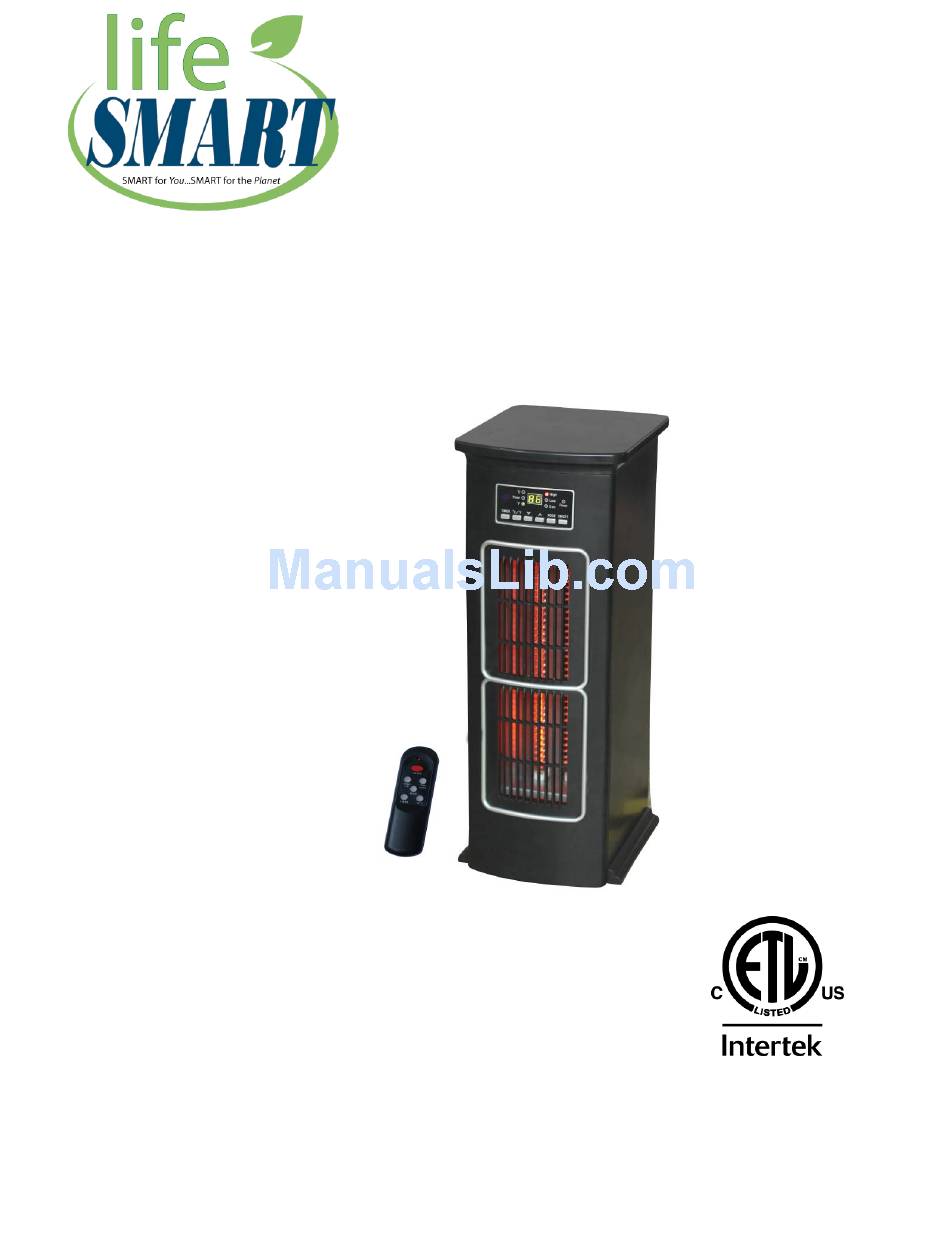

- Page 1 INFRARED ZONE HEATING SYSTEM OWNER’S MANUAL Model No. LS1003HH13 WARNING: READ THIS ENTIRE OWNER’S MANUAL CAREFULLY BEFORE USE.
- Page 2 Thank you for choosing a LIFESMART Infrared Zone Heating System. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater.
- Page 3 72 hours with an answer or resolution. If after speaking with LIFESMART Technical Support, it is determined by one of our agents that your unit may need to be sent in to us to be evaluated/repaired, our representative will provide you with a reference number and provide you with details on how to send in your unit for repair.
-
Page 4: Important Safety Instructions
IMPORTANT S AFETY I NSTRUCTIONS READ A ND U NDERSTAND A LL I NSTRUCTIONS, S AFETY W ARNINGS, AND F AQ’s B EFORE U SING T HE H EATER ... - Page 5 10. Never place heater where it may fall into a bathtub or other water receptacles. 11. Do not run cord under carpet. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over. 12.
-
Page 6: Frequently Asked Questions (Faqs)
Heating elements may be replaced by obtaining them from the Manufacturer. All parts may be purchased through LIFESMART PRODUCTS if your product is out of warranty. Note: If you feel that the elements are definitely faulty right out of the box, contact the LIFESMART PRODUCTS Technical Support department first (for troubleshooting and verification).A representative can then... - Page 7 I don’t have a grounded outlet; can I use adapters, a 2-prong power strip, or remove the ground prong from the cord? Definitely NOT! If you don’t have a grounded outlet, contact a certified electrician for advice. Removing or altering any part of the heater’s original design or intent (including the power cord) will not only void the warranty, but will make you liable for any unexpected or hazardous results.
- Page 8 A warm power cord is normal. All LIFESMART power cords are rated safe for up to 105° C/ 221° F by the UL, CSA, or ETL. The exception is, if you detect heat, smoke, or signs of melting at the contact point of the wall outlet, it may be due to loose or worn wall contacts (or arcing).
-
Page 9: Specifications
SPECIFICATIONS Voltage Rating 120 V (60Hz) Power Consumption 1500W Unit Size 9.8in. (W) x12.1 in. (D) x 25.4 in. (H) Unit Weight 19.8 lbs SAFETY FEATURES Tip-Over Safety Feature This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off. -
Page 10: Product Diagram
IN THE BOX ·INFRARED ZONE HEATING SYSTEM ·REMOTE CONTROL (2 AAA Batteries Not Included) ·INSTRUCTION BOOKLET PRODUCT DIAGRAM Remote Control Power Switch Control Panel Cord Clamp Front Panel Air Intake Air Outlet Foot pad... -
Page 11: Control Panel
Control Panel 1. Digital display：Indicates set desired room temperature or time according to the timer set. 2. High Mode indicator light: Will be lit when High Heat mode is engaged 3. Low Mode indicator light: Will be lit when Low Heat mode is engaged 4. -
Page 12: Remote Control
Remote Control Temp up button: To increase desired temperature ON/OFF button: Powers the display on and off Temp down button: to make set temperature decline Mode button: Used for mode selection ℃/℉ button: Button for alternating between Fahrenheit and Celsius Timer button: Used to engage timer mode and to set hour value for the timer Battery compartment (rear of remote) Battery compartment cover... -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS 1、Start and select working mode Turn the heater on by pressing the ON/OFF button on the control panel or by pressing the Power button on the supplied remote control. Turn the heater off by pressing the ON/OFF button on the control panel or by pressing the Power button on the supplied remote control. - Page 14 3、 POWER-OFF TIMER Setting the Function Note: The Power-Off-Timer Function will allow for the heater to power OFF after a certain set time, and can only be set while the heater’s display is in the “On” position. Turn the heater to the “On” position. Press the Timer button on the heater’s control panel or the remote.
-
Page 15: Maintenance
MAINTENANCE 1. Turn off the power switch in the rear of the unit. 2. Unplug the unit and let it cool completely 3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. -
Page 16: Basic Troubleshooting
STORAGE Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit. BASIC TROUBLESHOOTING If the heater will not operate, please check the following before seeking repair advice: 1. -
Page 17: Limited Manufacturer Warranty
LIFESMART warranty department. The purchaser may also opt to ship the product to LIFESMART to have it repaired, with prior written authorization from a LIFESMART warranty department. The purchaser will be responsible to prepay any shipping charges (both ways), export taxes, custom duties and taxes, or any other charges associated with the transportation of the unit. -
Page 18: Warranty Limitations
Disclaimers LIFESMART shall not be liable for any loss due to use (or misuse) of the heater or other LIFESMART products or other incidental or consequential costs, expense or damages without irrefutable foundations. Under no circumstances shall LIFESMART or any of its representatives be held liable for injury to any person or damage to any property, however arising.
