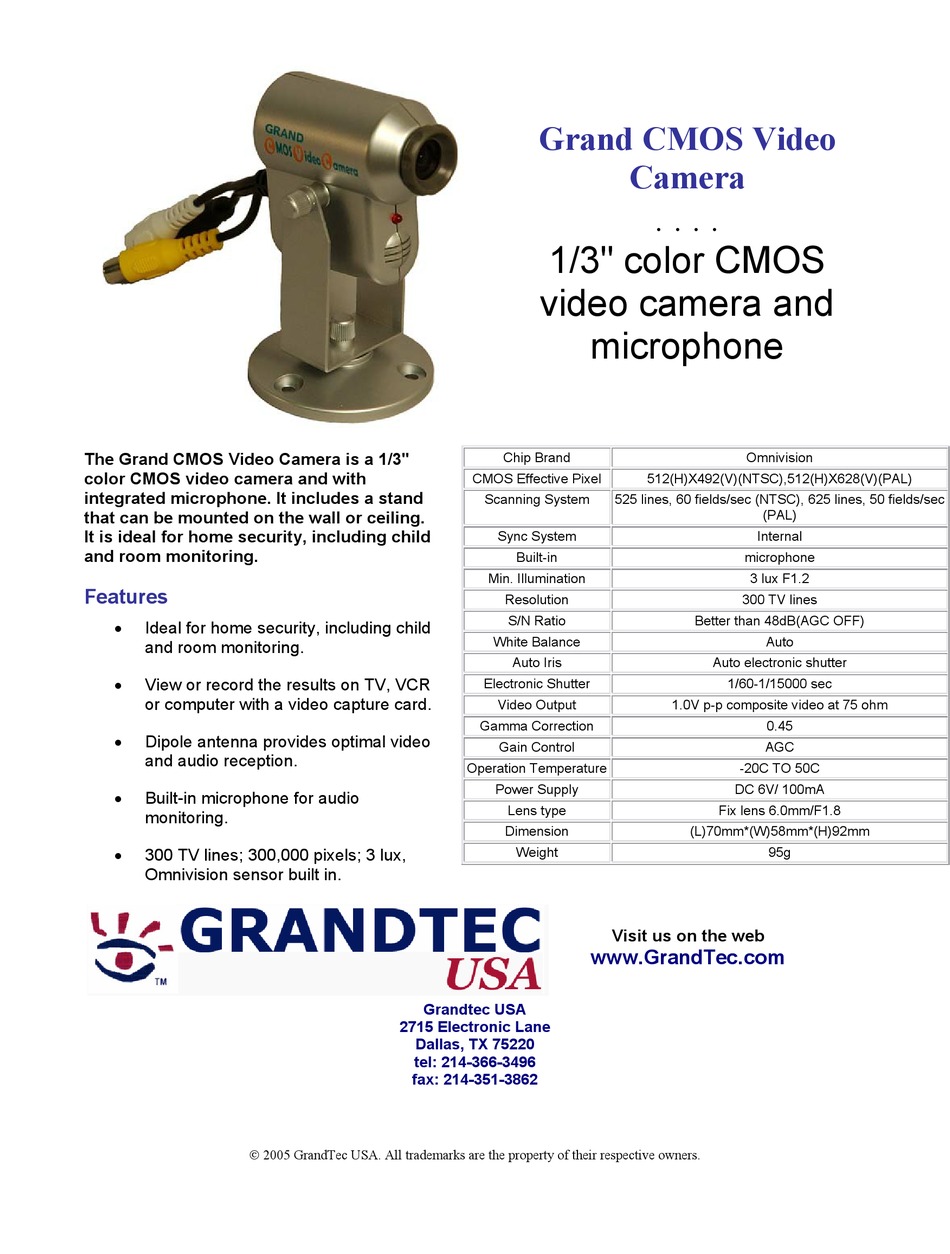

GrandTec CMS-1000 Specification Sheet

The Grand CMOS Video Camera is a 1/3"
color CMOS video camera and with
integrated microphone. It includes a stand
that can be mounted on the wall or ceiling.
It is ideal for home security, including child
and room monitoring.
Features
•
Ideal for home security, including child
and room monitoring.
•
View or record the results on TV, VCR
or computer with a video capture card.
•
Dipole antenna provides optimal video
and audio reception.
•
Built-in microphone for audio
monitoring.
•
300 TV lines; 300,000 pixels; 3 lux,
Omnivision sensor built in.
•
Low Power Consumption: 0.5 W
(MAX)
 2005 GrandTec USA. All trademarks are the property of their respective owners.
Grand CMOS Video
1/3" color CMOS
video camera and
Chip Brand
CMOS Effective Pixel
Scanning System
Sync System
Built-in
Min. Illumination
Resolution
S/N Ratio
White Balance
Auto Iris
Electronic Shutter
Video Output
Gamma Correction
Gain Control
Operation Temperature
Power Supply
Lens type
Dimension
Weight
Grandtec USA
2715 Electronic Lane
Dallas, TX 75220
tel: 214-366-3496
fax: 214-351-3862
Camera
. . . .
microphone
Omnivision
512(H)X492(V)(NTSC),512(H)X628(V)(PAL)
525 lines, 60 fields/sec (NTSC), 625 lines, 50 fields/sec
(PAL)
Internal
microphone
3 lux F1.2
300 TV lines
Better than 48dB(AGC OFF)
Auto
Auto electronic shutter
1/60-1/15000 sec
1.0V p-p composite video at 75 ohm
0.45
AGC
-20C TO 50C
DC 6V/ 100mA
Fix lens 6.0mm/F1.8
(L)70mm*(W)58mm*(H)92mm
95g
Visit us on the web
www.GrandTec.com
