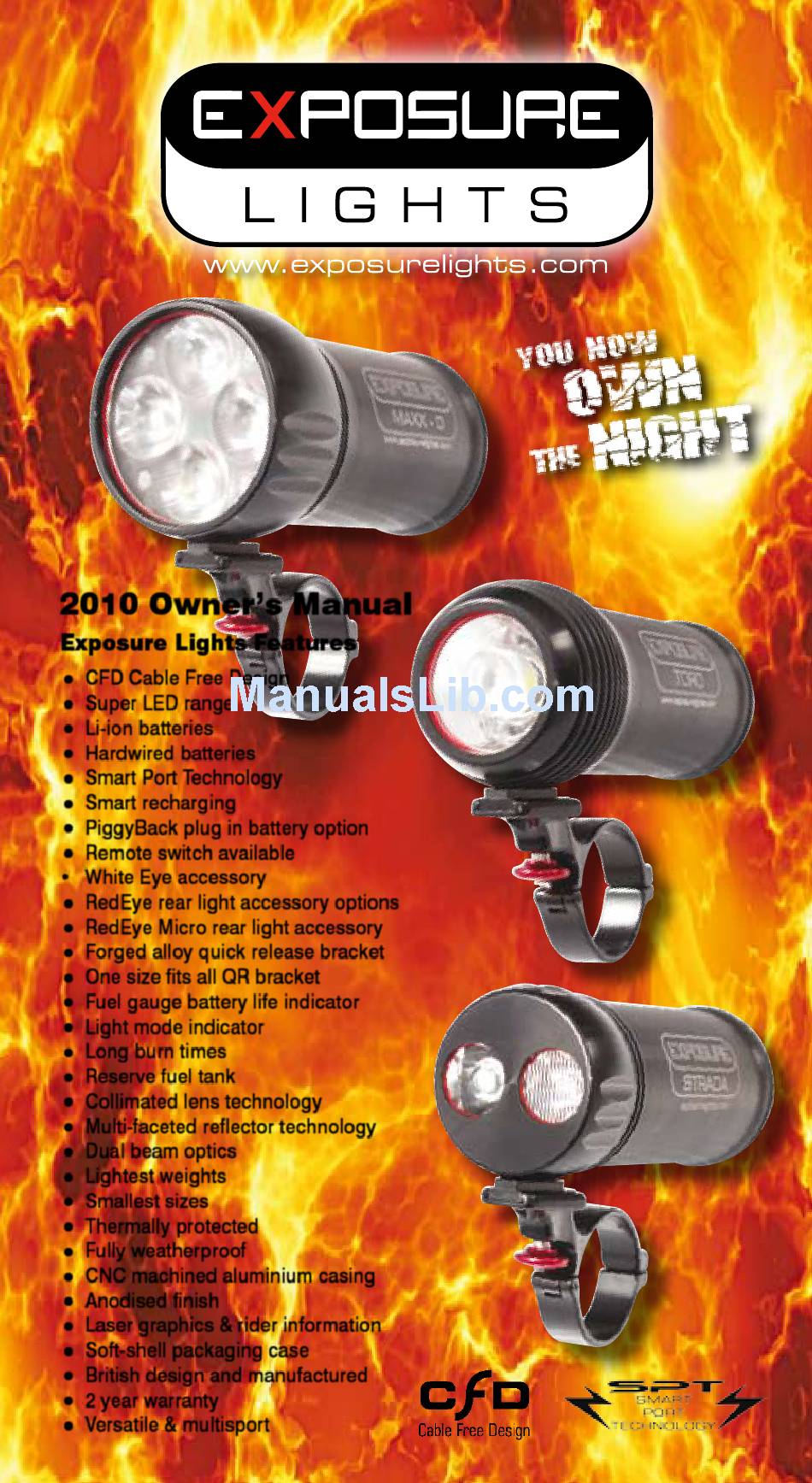

2010 Owner's Manual
Exposure Lights Features
•
CFD Cable Free Design
•
Super LED range
•
Li-ion batteries
•
Hardwired batteries
•
Smart Port Technology
•
Smart recharging
•
PiggyBack plug in battery option
•
Remote switch available
• White Eye accessory
•
RedEye rear light accessory options
•
RedEye Micro rear light accessory
•
Forged alloy quick release bracket
•
One size fits all QR bracket
•
Fuel gauge battery life indicator
•
Light mode indicator
•
Long burn times
•
Reserve fuel tank
•
Collimated lens technology
•
Multi-faceted reflector technology
•
Dual beam optics
•
Lightest weights
•
Smallest sizes
•
Thermally protected
•
Fully weatherproof
•
CNC machined aluminium casing
•
Anodised finish
•
Laser graphics & rider information
•
Soft-shell packaging case
•
British design and manufactured
•
2 year warranty
•
Versatile & multisport
MaXx-D
Toro
Strada

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaXm-D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Exposure MaXm-D

  • Page 1 MaXx-D 2010 Owner’s Manual Exposure Lights Features • CFD Cable Free Design • Super LED range • Li-ion batteries • Hardwired batteries • Smart Port Technology • Smart recharging Toro • PiggyBack plug in battery option • Remote switch available • White Eye accessory...
  • Page 2 P7 LEDs found in these models and delivers the best beam pattern and “blend” of light available from these LEDs. Test ride lights at your nearest Exposure demo dealer to see for yourself and meet us at many night events throughout the year.

  • Page 3: Warranty

    Warranty Please register your EXPOSURE. Fill in the form at the back of this manual or register online at www.exposurelights.com. IMPORTANT: keep your proof of purchase from your retailer. You will require this should you have a claim.
  • Page 4 If any of the items are missing please contact your place of purchase. MAXX-D, TORO, STRADA, RACE Smart Charger Light Unit QR Handlebar bracket Bracket bolt Lanyard Cleat Cleat bolt Rubber strips for 31.8 25.4 – 26.0 spacer Exposure Sponsored Team TORQ www.exposurelights.com...
  • Page 5 DIABLO – both bracket types included Smart Charger Light Unit QR Clip Helmet bracket upper Helmet bracket lower disc Short & long nylon blots Lanyard Bracket bolt QR Handlebar bracket Rubber strips for 31.8 25.4 – 26.0 spacer Accessories to consider: Piggyback battery; RedEye rear lights JOYSTICK with helmet bracket For 2009 models the Joystick is supplied with either the Helmet Bracket or the Quick Release handlebar bracket and QR Clip.
  • Page 6 Quick Release Bracket – MaXx-D, Toro, Strada (Diablo with clip), Race The Exposure QR bracket is a triumph in design that brings to life the full benefit of Exposure’s principle feature, Cable Free Design (CFD). The light unit is easily and quickly attached and removed. The bracket stays with the bike and the light will be in the perfect position every time it is attached.
  • Page 7 A simple cable tie handlebar bracket is also available as an accessory, as supplied with the Spark light. EXPOSURE LIGHTS/USE accepts no liability for any injuries or other damages to person or equipment arising from the use of the clamps.

  • Page 8: Light Operation

    LIGHT OPERATION Multi Function Button Located on the back of the light unit is the function button (on top of body Function for Spark light). This operates the button light unit and informs you of the mode setting and the battery power status. When the light is on and function button is pressed, the colour of the button for the first two seconds informs you which mode has been selected.
  • Page 9 Long periods of non-use will lower the voltage of the battery. If the unit is being stored for long periods, please ensure the battery is periodically charged. We suggest once per month. All the Exposure Lights from 2008 (MaXx range) and 2009 (MaXx-2 range) and 2010 use the same Smart chargers.
  • Page 10 PIGGYBACK BATTERY An outstanding feature of the Exposure range is the ability to extend burn times with Piggyback batteries. Piggyback batteries are available as single or triple cells and are supplied with Velcro attachment strap and fitting block. They can be mounted under the stem, to the helmet, on the light unit itself (walking) or carried in your pocket or backpack.

  • Page 11: Remote Switch

    Dip your lights. Just as cars dip their headlights for oncoming traffic and cyclists, we recommend that Exposure Light users respect others in the same way. On the road or on the bike path our lights are so bright in Max mode that it is recommended to “dip”...
  • Page 12 “SPT” logo etched on the bodywork of the light. They will NOT work on 2008 MaXx model lights. If you are a cyclist using the Exposure Light you will be aware of how important it is to be seen from behind as well as from the front to remain safe from other road users.
  • Page 13 RedEye rear light accessories and White Eye accessory. RedEye rear light: Encased in a tough CNC machined aluminium body and fully waterproof, the RedEye is possibly the brightest (80 Lumens) rear light on the market. It uses the same P4 LED as the Joystick but in red. Burn times will be reduced on your front light when running the RedEye.

  • Page 14: Spares And Accessories

    Spares and Accessories See your dealer for accessories to enhance your night time experience. EXPRS REMOTE SWITCH with cable EXPWE WHITEEYE front light with short cable EXPRE REDEYE rear light with long cable EXPREH REDEYE HELMET rear light with short cable EXPREMIC REDEYE MICRO red rear plug-in LED EXPQRBK-10...

  • Page 15: Maintenance

    MAINTENANCE Inspect and test your EXPOSURE light before every outing in the dark. Keep your EXPOSURE light clean, and the lenses free of dirt. The lenses are made of hi-tec plastic but can be scratched. Be careful when cleaning any mud or dirt from the lens.
  • Page 16 Exposure Lights are designed and made by: Race Diablo Joystick Spark Ultimate Sports Engineering Limited Petworth, West Sussex GU28 9NR England UK Tel:+44(0) 1798 344477 Fax:+44(0) 1798 344499 info@exposurelights.com or info@use1.co.uk Printed Nov09. All specifications correct at time of print, subject to change and improvement. Check www.exposurelights.com...
