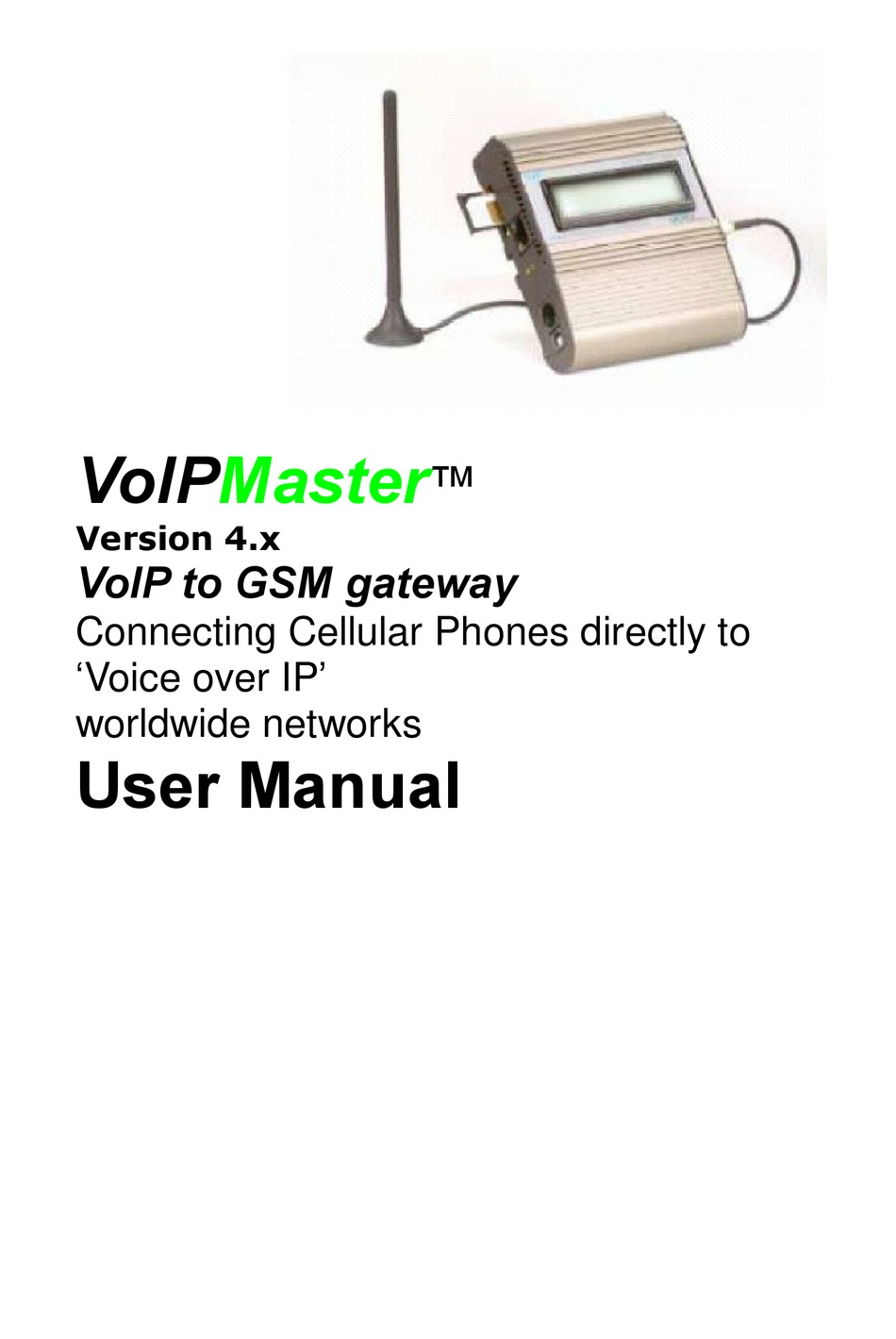

Page 1: User Manual
VoIPMaster ™ Version 4.x VoIP to GSM gateway Connecting Cellular Phones directly to ‘Voice over IP’ worldwide networks User Manual... -
Page 2: Usage Warnings
MasterVoIP VoIP to GSM Gateway Usage Warnings 1) High voltage transients, surges, and other power irregularities can cause extensive damage. It is the user's responsibility to provide a power protection system. 2) It is the user's responsibility to install, operate, and maintain the system in accordance with all applicable codes, regulations, and safety measures. - Page 3 Februaray-2006 Page 3 / 42 MasterVoIP VoIP to GSM Gateway Dear Customer, We thank you for purchasing our VoIP Master VoIP to GSM Gateway. The information in this manual does not constitute a warranty of performance, although the information has been compiled and checked for accuracy by Eurotech Communication Ltd.
-
Page 4: Table Of Contents
3.4.5 Port and SIM Settings ... 39 3.4.5.1 Dial Settings for the GSM Port... 39 3.4.5.2 SIM Settings... 40 3.4.5.3 Follow Me Settings ... 41 3.4.5.4 Call Back Settings ... 42 Februaray-2006 MasterVoIP Page 4 / 42 VoIP to GSM Gateway... -
Page 5: Getting Started
After you have completed the VoIP Client ATA you can start configuring the VoIP Master, starting with learning the VoIPMaster concept rule in the network and the way it works at “What is the VoIP Master and how it works” chapter. Februaray-2006 MasterVoIP Page 5 / 42 VoIP to GSM Gateway... - Page 6 MasterVoIP VoIP to GSM Gateway Completing this you shall start the installation procedure of the VoIPMaster following the Set-up and Installation as follows: Installing the Manager Application Define the Com port Connection – to enable a PC to VoIP master proper connection Port and SIM Settings –...
-
Page 7: Check Your Package Items
Manual file and additional auxiliary utilities. GSM Antenna – To be installed to the VoIP Master Gateway RS-232 Serial PC COMport connection cable we’ll be referred as Comport cable in this manual Februaray-2006 MasterVoIP Page 7 / 42 VoIP to GSM Gateway... -
Page 8: Voip Client Ata
Supports PSTN pass through, able to make and receive VoIP or PSTN calls using same connected analogue phone. Ultra compact (wallet size) and lightweight design, great companion for travelers. Februaray-2006 MasterVoIP Page 8 / 42 VoIP to GSM Gateway... -
Page 9: Hardware Specification
Power Adaptor Output: +5VDC, 1200mA UL certified 65mm (W Dimension 93mm (D) 27mm (H) Weight Operating 32 - 104oF Temperature 0 - 40oC 10% - 95% Humidity (non-condensing) Compliance FCC/CE/C-Tick Februaray-2006 MasterVoIP Page 9 / 42 VoIP to GSM Gateway... -
Page 10: Basic Operations
Dial ‘9’ to confirm the RESET; or Enter MAC address to restore factory default setting (For detail, see section 8) Automatically return to Main Menu MasterVoIP Page 10 / 42 User’s Options VoIP to GSM Gateway... -
Page 11: Placing Phone Calls
If the target IP address/port is 192.168.1.20:5062, then the dialing convention would be: Voice Prompt with option 47, then 192168001020*45062 followed by pressing the “#” key if it is configured as a send key or wait for 4 seconds. Februaray-2006 MasterVoIP Page 11 / 42 VoIP to GSM Gateway... -
Page 12: Blind Transfer
When intended Transfer failed, if “A” hangs up, the HandTone-496 will ring user “A” again to remind “A” that “B” is still on the call, by pressing FLASH or Hook again will restore the conversation between “A” and “B”. Februaray-2006 MasterVoIP Page 12 / 42 VoIP to GSM Gateway... -
Page 13: Call Features
T.38, pass-through mode may be used. To send or receive faxes in fax pass through mode, users will need to select all the Preferred Codecs to be PCMU/PCMA. Februaray-2006 MasterVoIP Page 13 / 42 VoIP to GSM Gateway... -
Page 14: Led Light Pattern Indication
Februaray-2006 flash every 2 seconds (if DHCP is configured) flash every 2 seconds (if SIP is configured) Button flashes every 2 seconds Button flashes at 1/10 second Button flashes every second MasterVoIP Page 14 / 42 VoIP to GSM Gateway... -
Page 15: Configuration Guide
End User is “admin”. After the correct password is entered in the login screen, the embedded Web server inside the IP phone will respond with the following Basic Settings configuration page, which is explained in details below. Februaray-2006 MasterVoIP Page 15 / 42 http://Phone-IP-Address where the Phone-IP- VoIP to GSM Gateway... - Page 16 In addition to the Basic Settings configuration page, the end user also has access to the device Status page. The following is a screen shot of the device Status page. Februaray-2006 MasterVoIP Page 16 / 42 VoIP to GSM Gateway...
- Page 17 Here are the status details shown: MasterVoIP Februaray-2006 Page 17 / 42 VoIP to GSM Gateway...
-
Page 18: Product Model
This shows what kind NAT the VoIP Client ATA is connected to via its WAN port. It is based on STUN protocol. WAN side public IP if connected to LAN of a SOHO router. External port detected by STUN. Self explainable. Please refer to the page displayed. MasterVoIP Page 18 / 42 VoIP to GSM Gateway... -
Page 19: Advanced User Configuration
Advanced User configuration page includes not only the end user configuration, but also some advanced settings such as SIP configuration, Codec selection, NAT Traversal Setting and other miscellaneous settings. Following is the screen shot of the Advanced configuration page: MasterVoIP Februaray-2006 Page 19 / 42 VoIP to GSM Gateway... - Page 20 The following window if for advanced configuration regarding IP, SIP, QoS, NAT, IP Telephony modes setting: MasterVoIP Februaray-2006 Page 20 / 42 VoIP to GSM Gateway...
- Page 21 5060) of the outbound proxy. If there is no outbound proxy, this field Outbound Proxy SHOULD be left blank. If not blank, all outgoing requests will be sent to this outbound proxy. Februaray-2006 MasterVoIP Page 21 / 42 VoIP to GSM Gateway...
- Page 22 MasterVoIP Februaray-2006 Page 22 / 42 VoIP to GSM Gateway...
-
Page 23: Silence Suppression
2 VLAN tag. Default setting is blank. And 802.1p priority value contains the value of the priority value. Use DNS SRV This parameter controls whether the IP phone supports the DNS SRV route function. Februaray-2006 MasterVoIP Page 23 / 42 VoIP to GSM Gateway... -
Page 24: Sip Registration
(with a 404 Not Found error). Please note that this feature is NOT designed to work with and should NOT be enabled for direct IP-to-IP calling. Februaray-2006 MasterVoIP Page 24 / 42 VoIP to GSM Gateway... -
Page 25: Firmware Upgrade
SIP server to keep the “hole” on the NAT open. Firmware Upgrade This radio button will enable VoIP Client ATA to download firmware or configuration file through either TFTP or HTTP. Februaray-2006 MasterVoIP Page 25 / 42 VoIP to GSM Gateway... - Page 26 DTMF is combined with the audio signal (not very reliable with low-bit-rate codec), via RTP (RFC2833), or via SIP INFO. DTMF Payload This parameter sets the payload type for DTMF using RFC2833 Type Februaray-2006 MasterVoIP Page 26 / 42 VoIP to GSM Gateway...
-
Page 27: Polarity Reversal
If this parameter is set to “Yes”, the configuration update via keypad is update disabled. The IP address or URL of the System log server. This feature is especially useful Syslog Server for ITSP (Internet Telephone Service Provider) Februaray-2006 MasterVoIP Page 27 / 42 VoIP to GSM Gateway... - Page 28 The Syslog uses USER facility. In addition to standard Syslog payload, it contains the following components: GS_LOG: [device MAC address][error code] error message Here is an example: May 19 02:40:38 192.168.1.14 GS_LOG: [00:0b:82:00:a1:be][000] Ethernet link is up Februaray-2006 MasterVoIP Page 28 / 42 VoIP to GSM Gateway...
-
Page 29: Saving The Configuration Changes
3.2.1.4 Saving the Configuration Changes Once a change is made, the user should press the “Update” button in the Configuration Menu. The IP phone will then display the following screen to confirm that the changes have been saved. Users are recommended to power cycle the VOIP Client-488 after seeing the above message. 3.2.1.5 Remotely rebooting VoIP Client ATA The administrator of the phone can remotely reboot the phone by pressing the “Reboot”... -
Page 30: Restoring The Factory Default Settings
Step 4: Key in the encoded MAC address decimal digits after hearing the IVR prompt. Once the correct encoded MAC address is entered, the device will reboot automatically and restore the factory default settings. Februaray-2006 Warning !!! : “00 0222 82 00 333 3 95” MasterVoIP Page 30 / 42 VoIP to GSM Gateway... -
Page 31: Voip Master
This following is the communication solution architecture enabled by the VoIPMaster: Location World Cellphones Cellphones VoIP Master VoIPMaster Management Februaray-2006 Another World IP Network VoIP Near 0 Cost! MasterVoIP Page 31 / 42 Location Cellphones Base Stations VoIP Master VoIP to GSM Gateway... - Page 32 • If two systems install in remote offices a call from a mobile in one location – let say N.Y can call a remote cellular user let say in Japan in the cost of a local enterprise Cellphone cost only! Februaray-2006 MasterVoIP Page 32 / 42 VoIP to GSM Gateway...
-
Page 33: Set-Up And Installation
Plug the transformer into a wall socket and insert the power cable into its socket on the left side of the gateway. After connecting the cables, install the Manager and configure the settings for the VoIP Master gateway as described in the following chapters. Februaray-2006 Page 33 / 42 To Internet MasterVoIP VoIP to GSM Gateway RJ-45... - Page 34 MasterVoIP Februaray-2006 Page 34 / 42 VoIP to GSM Gateway...
-
Page 35: Installing The Manager Application
1. Insert the VoIP Master CD into the computer drive. 2. In Windows Explorer, navigate to Icon (in the software disk). 3. Double click the Icon, wait till the installation window will open. MasterVoIP Februaray-2006 Page 35 / 42 VoIP to GSM Gateway... -
Page 36: Define The Com Port Connection
After installing the manager application, launch it and define the Comport to which the VoIP Master is connected. 1. Launch the PRI Manager by pressing on your computer desktop, or by pressing MasterVoIP Februaray-2006 Page 36 / 42 VoIP to GSM Gateway... - Page 37 After installing the Manager and defining the port connection, define port and SIM Settings as described in the following chapter. Februaray-2006 The Select Connection window opens. computer which MasterVoIP Page 37 / 42 VoIP Master connected. VoIP to GSM Gateway...
- Page 38 MasterVoIP Februaray-2006 Page 38 / 42 VoIP to GSM Gateway...
-
Page 39: Port And Sim Settings
2. Upon completion of a call, if you want to remain connected to the GSM Network, set Repeat Access to VoIP to On. 3. Set Receiving (Rx) and transmitting volumes in the Rx (receiving) and Transmitting (Tx) volume settings. 4. Press Write Settings. Februaray-2006 MasterVoIP Page 39 / 42 VoIP to GSM Gateway... -
Page 40: Sim Settings
2. In the Network box, enter the GSM network number of the SIM. 3. In boxes 1 through 8, set enter telephone number prefixes to which this SIM can dial. 4. Press Write Settings. MasterVoIP Februaray-2006 Page 40 / 42 VoIP to GSM Gateway... -
Page 41: Follow Me Settings
2. In the Rings Number box, enter the number of times the local phone will ring before being diverted to the "Follow me" function. 3. In the Called Number box, enter the telephone number that you want dialed when the "follow me" function is activated. 4. Press Write Settings. Februaray-2006 MasterVoIP Page 41 / 42 VoIP to GSM Gateway... -
Page 42: Call Back Settings
2. Enter desired telephone numbers in the center of the window. 3. Next to each telephone number, set the box to ON. 4. Press Write Settings. VoIP Master After making these settings, your VoIP gateway is ready for operation. Februaray-2006 MasterVoIP Page 42 / 42 VoIP to GSM Gateway...
