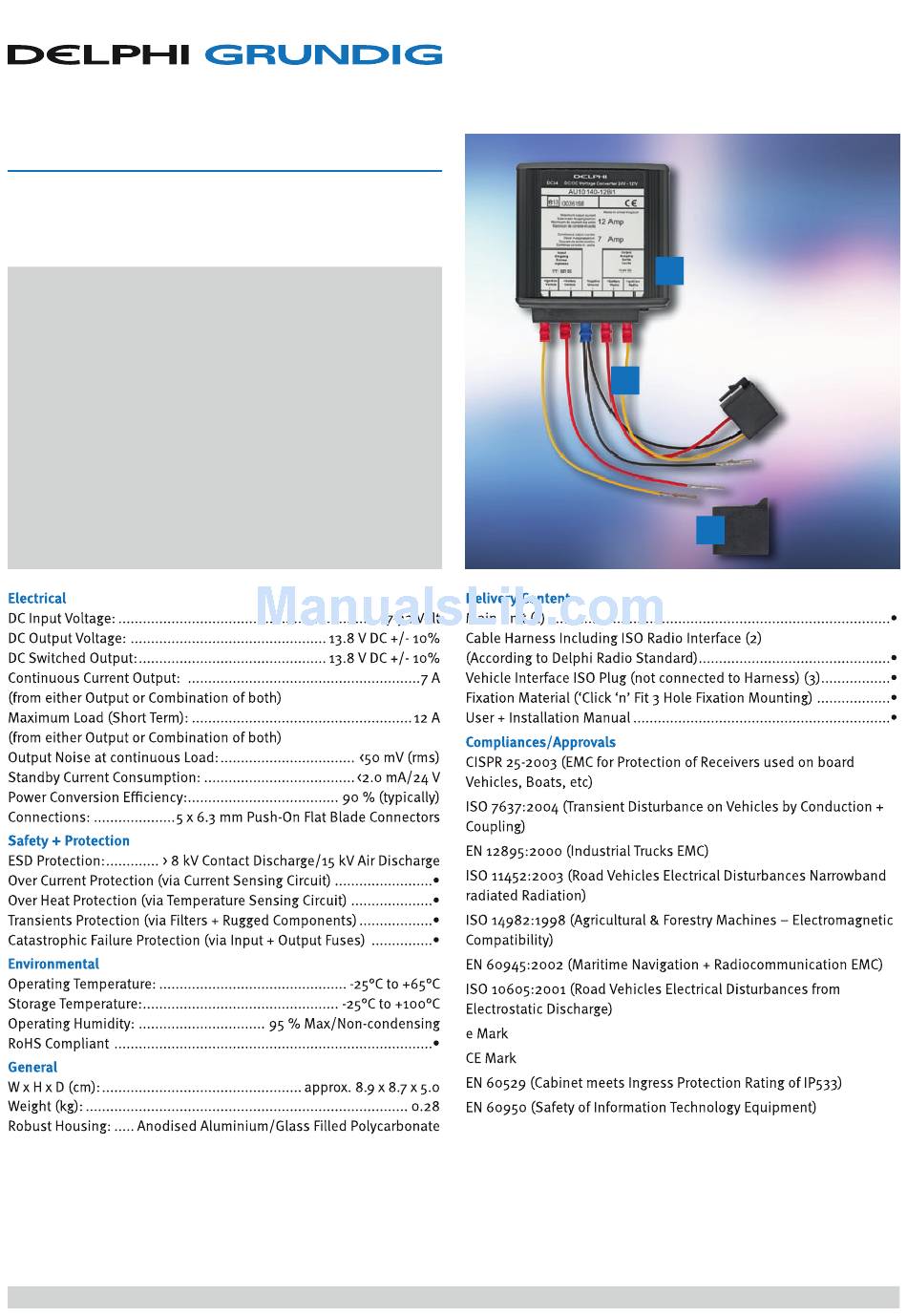

CAR AuDIO
DC24
Model Name:
DC24
Order Number:
AU10140-12B1
EAN Number:
5012759408759
Features
24 V DC to 12 V DC Voltage Converter
7 A Continuous Output Current (12 A Max)
Low Standby Current Consumption: < 2.0 mA
Dual Output: Constant and Switched Output
(Controlled by additional Ignition Input)
Extreme Robust + Safe
For Commercial Vehicles Infotainment Applications
Copyright by Delphi Grundig · Technical information, delivery options and modifications are subject to change without notice
Delphi Deutschland GmbH · Delphiplatz 1 · D-42119 Wuppertal · www.delphigrundig.com
1
2
3
Advertisement
Table of Contents
Summary of Contents for DELPHI GRUNDIG DC24
- Page 1 (Controlled by additional Ignition Input) Extreme Robust + Safe For Commercial Vehicles Infotainment Applications Delphi Deutschland GmbH · Delphiplatz 1 · D-42119 Wuppertal · www.delphigrundig.com Copyright by Delphi Grundig · Technical information, delivery options and modifications are subject to change without notice...
- Page 2 PIN A7 ..........+12 V Ignition Voltage (Switched Plus) PIN A8 ..................Ground Fixation Delphi Deutschland GmbH · Delphiplatz 1 · D-42119 Wuppertal · www.delphigrundig.com Copyright by Delphi Grundig · Technical information, delivery options and modifications are subject to change without notice...
