Summary of Contents for Diezel Einstein

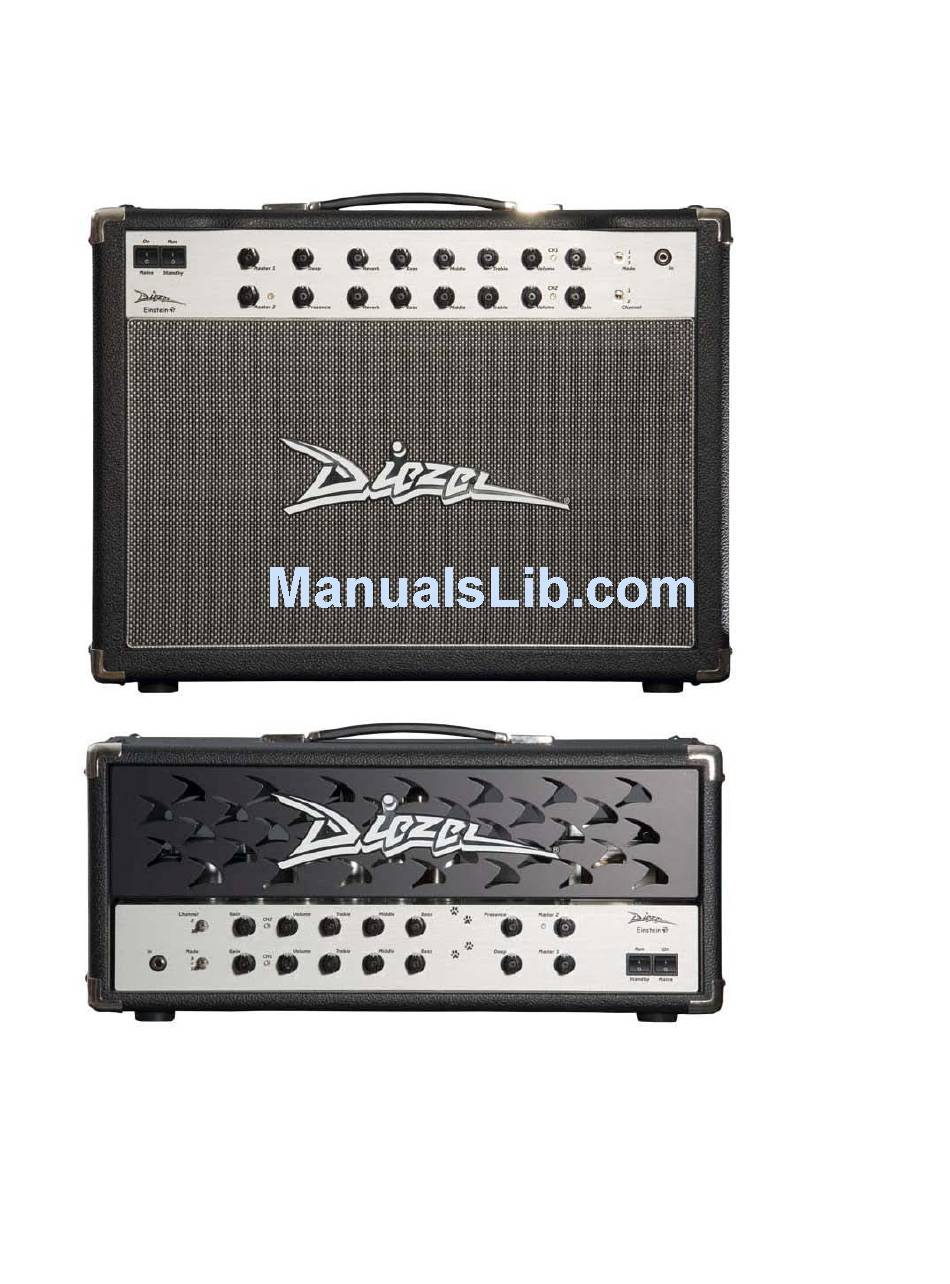

- Page 1 User Manual Diezel Einstein Amplifier...
-
Page 2: Table Of Contents
Table of Contents Chapter One: Safety and Warranty 1.1 Safety Warnings 1.2 Warranty information Chapter Two: Using your Einstein 2.1 Mains Connections, power and Standby 2.1.1 Mains/connect to power outlet 2.1.2 Power up, Warm up, Standby off 2.1.3 Power tube caution 2.1.4 Operating Temperature... - Page 3 Chapter Seven: Maintenance and Cleaning 7.1 Cleaning 7.2 Care 7.3 Tube Change...
-
Page 4: Chapter One: Safety And Warranty
Do not open the panels of the amplifier. No user serviceable parts inside. Your Einstein operates on very high internal voltages, which may still be present after the Amplifier has been turned off and disconnected for awhile. -
Page 5: Chapter Two: Using Your Einstein
After about 40 seconds, the tubes should be sufficiently heated for normal operation. Your Einstein is then ready for operation and the standby switch can be turned to “run” (also facing up). Premature activation of the standby switch will lead to unnecessary tube stress and subsequent reduction of the power tube’s life span. -
Page 6: Chapter Three: Peripheral Connections
The loops of your Einstein send signals at higher levels and impedances, which makes this section of wiring less sensitive. You should still use reliable and good quality wiring for... -
Page 7: Rear Panel Connections
Which is better for you? Read on. There are 2 ways to handle effects signals. The serial loop interrupts the signal path of the Einstein and the signal is sent to the processor, becomes processed, then sent back to the serial return into the power amp. -
Page 8: Compensated Out
Hot Plate). 3.2.5 Speaker Connections Einstein has 5 speaker jacks. 1 for a 16Ohm load, 2 for 2 16Ohm loads or 1 8Ohm load, and 2 for 2 8 Ohm loads or 1 4 Ohm load. Confusing? Oh yes! Just... -
Page 9: Chapter Four: The Two Pre-Amplifiers
From hard and percussive sounds to soft, warm, and blossoming tone. Einstein was designed to offer as many of the clean varieties as possible. Your choice of guitars and pickups will have a large part in this equation. -
Page 10: Chapter Five: Power Amplifier
Einstein utilizes 4 power tubes, organized in 2 pairs with dual bias possibility. This allows use of 2 different pairs of power tubes, either the same or the... -
Page 11: Life Span
Chapter Six: Layout of Controls 6.1 Manual Channel Selection The 2 channels of the Einstein can be selected manually by activating the select switch for either channel. Alternatively, a foot switch can be connected to remotely control the channel selection. - Page 12 It is quick and easy to accomplish biasing but were commend that you refer to trained professionals to attempt this procedure. The Diezel Company wishes to express their gratitude and congratulate you on your decision to purchase the Diezel...
