Summary of Contents for InFocus DisplayLink 2101

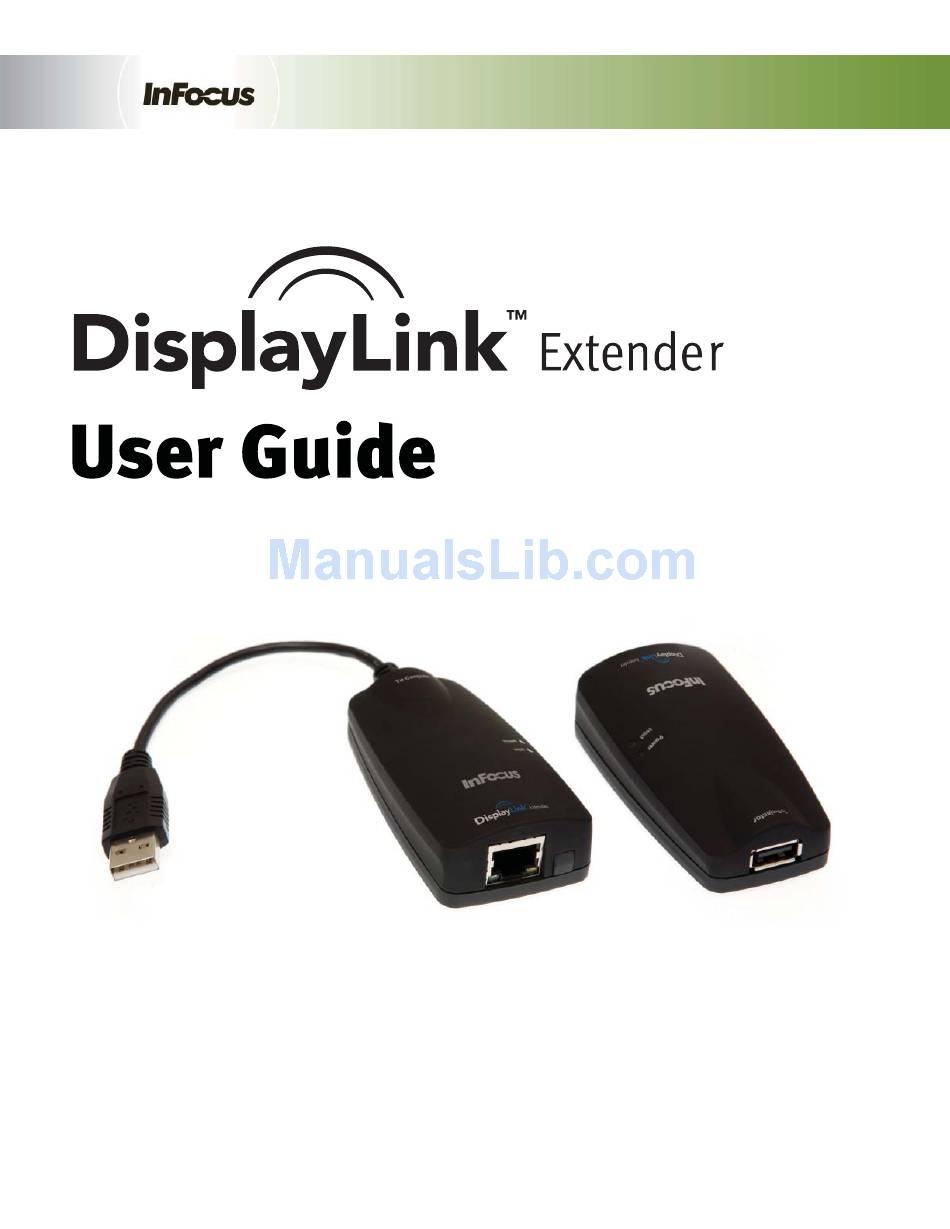

- Page 1 Model: 2101...
- Page 2 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by InFocus Corporation may void authority to operate the equipment. Canada This Class A digital apparatus complies with Canadian ICES-003.
-
Page 3: Table Of Contents
Contents Introduction ..........................................DisplayLink Extender Product Contents ..........................Requirements ....................About the DisplayLink Extender Installation guide ..................................Connecting the Computer module to the Projector module ....................Installing the Projector module ....................Installing the Computer module Troubleshooting ........................Specifi cations ........................... Limited Warranty ........................ -
Page 4: Introduction
USB 2.0 compatible computer (Windows or Mac) with a USB compliant operating system • An InFocus or ASK Proxima projector with a DisplayLink connector • The USB cable included with your projector (or a high-quality USB 2.0-compliant USB type-A to mini-B cable, no more than 2m in length). - Page 5 The Computer module The Computer module connects to the computer using the attached USB cable. Power for this module is provided by the computer’s USB port. Back View Top View ITEM TYPE DESCRIPTION LED turns on when power is supplied. Off when no power is Power LED (Blue) supplied.
- Page 6 The Projector Module The Projector module provides a USB Type A port for projectors. The Projector module allows you to connect one projector directly. Additional devices may be connected by attaching USB hubs to the projector module. The Projector module is powered by the projector via the included power cord. Top View Front View Rear View...
-
Page 7: Installation Guide
Installation guide DisplayLink Projector Computer +5V DC USB 2.0 (CAT 5) Extension Max Length 100m Before you can install the DisplayLink Extender, you need to prepare your site. Determine where the computer is to be located and set up the computer. Determine where you want to locate the Projector(s). -
Page 8: Installing The Projector Module
Installing the Projector module Place the Projector module near the Projector. Plug the Projector module power cord between the projector module and the projector’s +5VDC connector. Connect the Projector module to the projector’s DisplayLink connector using the USB cable that was included with your projector (or a high-quality USB 2.0-compliant USB type-A to mini-B cable, no more than 2m in length). -
Page 9: Troubleshooting
Compatibility The DisplayLink Extender complies with USB 2.0 specifi cations governing the design of USB devices. InFocus Corporation does not, however, guarantee that all USB devices are compatible with the DisplayLink Extender as there are a number of diff erent confi gurations that may impact the operation of USB devices over extended distances. - Page 10 Connect the DisplayLink Extender to the computer. 6. If the other USB device does not operate, the DisplayLink Extender may be malfunctioning. Contact InFocus support for assistance. 7. If the other USB device operates properly, the projector may be malfunctioning. Contact InFocus support.
- Page 11 NOTES...
-
Page 12: Specifi Cations
Frequently Asked Questions Please visit InFocus’s website for answers to FAQs: www.infocus.com/support/sp_dousb_extender Specifi cations Range 100 metres over Cat 5 (or better) cable Any single chain can include up to 4 Certifi ed High Speed USB 2.o USB hub support hubs plus one DisplayLink Extender. -
Page 13: Limited Warranty
Limited Warranty InFocus Corporation warrants the DisplayLink Extender shall be free from signifi cant defects in material and workmanship for a period of one year from the date of purchase. Limitation of Liability IT IS UNDERSTOOD AND AGREED THAT INFOCUS’ LIABILITY SHALL NOT EXCEED THE RETURN OF THE... -
Page 14: Obtaining Warranty Service
During the Limited Warranty period, to exercise the Limited Warranty, the purchaser must fi rst contact 1) InFocus, 2) a service facility authorized by InFocus or 3) the place of original purchase. InFocus Customer Service in the Americas 1-800-799-9911 or 503-685-8888 or www.infocus.com/support, In Europe, Middle East, and Africa +31 (0) 36 539 2820, and in Asia Pacifi c +65 6513 9620. -
Page 15: Technical Glossary
Technical Glossary Category 5 (CAT 5) Network Cabling Category 5 cable is commonly also referred to as CAT 5. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI). - Page 16 InFocus Corporation 27500 SW Parkway Ave Wilsonville, Oregon 97070 Tel: 1-503-685-8888 Fax: 1-503-685-8887 www.infocus.com...
