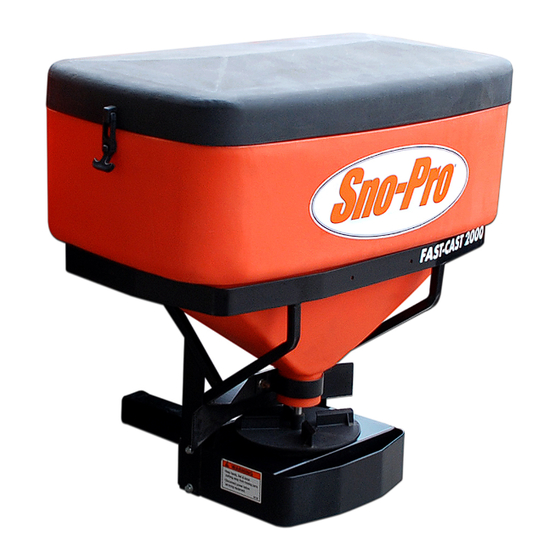

Sno-Pro Fast-Cast 2000 (1CS1) Assembly And Owner's Manual

Fast-cast series spreaders
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
™
FAST-CAST SERIES SPREADERS
Assembly and Owner's Manual - September 2010
Fast-Cast 2000 (1CS1), Fast-Cast 300 (1CS9), Fast-Cast 400 (1CS10)
Curtis Industries Inc. LLC, 111 Higgins St., Worcester, MA 01606 TEL: (800) 343-7676 FAX: (508) 854-3377 For Parts and information visit us at www.Curtisindustries.net
Curtis Industries Inc. LLC, reserves the right to change product design or specifications without notice or liability.
1 of 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fast-Cast 2000 (1CS1) and is the answer not in the manual?

Questions and answers

Related Manuals for Sno-Pro Fast-Cast 2000 (1CS1)

Summary of Contents for Sno-Pro Fast-Cast 2000 (1CS1)

  • Page 1 ® ™ FAST-CAST SERIES SPREADERS Assembly and Owner's Manual - September 2010 Fast-Cast 2000 (1CS1), Fast-Cast 300 (1CS9), Fast-Cast 400 (1CS10) Curtis Industries Inc. LLC, 111 Higgins St., Worcester, MA 01606 TEL: (800) 343-7676 FAX: (508) 854-3377 For Parts and information visit us at www.Curtisindustries.net Curtis Industries Inc.
  • Page 2 IMPORTANT: Before you Start... ► Before attempting any procedure in this manual, these safety instructions must be read and under- stood by all workers who have any part in the preparation or use of this equipment. ► For your safety, warning and information decals have been affixed to this product to remind all operators of safety precautions. If decals are marked, damaged or destroyed, replace with new decals ordered from Curtis Industries, LLC. WARNING 1. Most accidents are preventable and caused by human error. Exercise care and precautions to prevent the possibility of injury to operator or to others. 2. Never operate equipment when under the influence of alcohol, drugs or medication that might alter your judgement and / or reaction time.
  • Page 3 CAUTION ■ Never exceed 45 m.p.h. when loaded spreader is attached to vehicle. Braking distances may be affected and handling characteristics may be impaired at speeds above 45 m.p.h. ■ Never use wet materials, or materials with foreign debris in the Fast-Cast Spreaders. These units are designed to handle dry, clean, free-flowing material.

  • Page 4: Section 1. Spreader Wiring Steps

    Sno-Pro Fast-Cast Series Spreaders SECTION 1. SPREADER WIRING STEPS (Refer to Page 17) Harness Assembly will be routed from the rear of 1g. Install ignition wire to an auxiliary circuit that is hot The the vehicle to the front. Route Harness along frame when the ignition key is turned to ON position.This and attach to frame holes and frame supports. wire is 60" long and has a female terminal attached to it. This wire will plug into back of Controller. It is not recommended to This wire must be installed in order for Controller to attach to fuel or brake lines operate. WARNING for obvious reasons. 1h. Push the ON/OFF button on the Controller to check for Do not route close to exhaust system or engine, power, when that has been confirmed turn power OFF.

  • Page 5: Section 3. Fast-Cast 400 Assembly

    Sno-Pro Fast-Cast Series Spreaders 2c. SPREADER LOADING TIPS 3g. Turn over Gate Deck and lower the assembly over the Spinner Shaft. The Spinner Shaft must be inserted ► Never exceed 10 m.p.h. when spreading. through the 5/8" hole on Gate Deck. ► For a wider pass, increase Spinner speed. 3h. Fasten Gate Deck to Hopper Tube using four 5/16" Hex Bolts (11) and four 5/16" Lock Nuts (3). ► For a heavier pass, drive slower. First tighten bottom bolts, NOTE ►...

  • Page 6: Section 4. Fast-Cast 300 Assembly Steps

    Sno-Pro Fast-Cast Series Spreaders SECTION 4. FAST-CAST 300 ASSEMBLY STEPS SECTION 5. FAST-CAST 300 / 400 WIRING (Refer to Page 10 & 11) STEPS (Refer to Page 17) 4a. Attach Hopper Tube Support (6) to Complete Drive 5a. Install Switch/Control at desired location. Assembly using four 5/16"-18 x 1-3/4" Hex Bolts (3) and four 5/16" Lock Nuts (2). Use the four bottom 5b. Run Spreader Vehicle Harness from the rear of mounting holes at ends of Hopper Tube Support. vehicle to Switch/Control area. Attach the female spade/red wire to the switch or 4b.

  • Page 7: Section 7. Spreader Maintenance

    Sno-Pro Fast-Cast Series Spreaders Use Dielectric Grease on all Always shut off vehicle and power source before attempting electrical connections to IMPORTANT to attach or detach or service prevent corrosion at the CAUTION Spreader unit. Be sure vehicle / beginning and end of the...
  • Page 8 Sno-Pro Fast-Cast Series Spreaders 1CS1 Fast-Cast 2000 - Illustrated Parts List Item Part Description Qty. 1CS1P1 Lid With Latches 1CS1P2 Flexible Draw Latch 1CS1P3 Hopper 1CS1P4 Main Frame 1CS1P5 Throat Clamp 1CS1P42 Stainless Throat Liner 1CS1P48 Latch Keeper 1CS1P12 Deflector 20"...
  • Page 9 Sno-Pro Fast-Cast Series Spreaders 1CS1 Fast-Cast 2000 Complete Drive Assembly - Illustrated Parts List Item Part Item Part Description Qty. Description Qty. 1CS1P16 Motor 12 Volt DC 1CS1P25 1/4"-20 x 3/4" Hex Bolt 1CS1P53 Transmission 1CS1P24 5/16"-18 x 1/2" Hex Bolt...
  • Page 10 Sno-Pro Fast-Cast Series Spreaders 1CS9 Fast-Cast 300 - Illustrated Parts List Item Part Description Qty. 1CS2P15 3/8" Fender Washer 1SM5P1 5/16"-18 Lock Nut D6462 5/16"-18 x 1-3/4" HHCS 1CS9P1 Fast-Cast 300 Salt Hopper 1CS9P2 Salter Throat Deck 1CS9P3 Hopper Tube Support...
  • Page 11 Sno-Pro Fast-Cast Series Spreaders 1CS9 Fast-Cast 300 Complete Drive Assembly - Illustrated Parts List Item Part Description Qty. 1SM1P3 2-5/16" Hair Pin Clip 1SM1P2 5/8" x 5-1/2" Hitch Pin 1CS1P25 1/4"-20 x 1/2" Hex Bolt S.S. 1CS1P24 5/16"-18 x 1/2" Hex Bolt 1CS1P27 #10-32 x 5/8"...
  • Page 12 Sno-Pro Fast-Cast Series Spreaders 1CS10 Fast-Cast 400 Spreader - Illustrated Parts List Gate Deck Underside View Item Part Item Part Description Qty. Description Qty. 1CS2P15 3/8" Fender Washer D6462 5/16"-18 x 1-3/4" HHCS 1CS1P24 5/16"-18 x 1/2" Hex Bolt 1CS10P5...
  • Page 13 Sno-Pro Fast-Cast Series Spreaders 1CS10 Fast-Cast 400 Complete Drive Assembly - Illustrated Parts List Item Part Description Qty. 1SM1P3 2-5/16" Hair Pin Clip 1SM1P2 5/8" x 5-1/2" Hitch Pin 1CS1P25 1/4"-20 x 1/2" Hex Bolt S.S. 1CS1P24 5/16"-18 x 1/2" Hex Bolt 1CS1P27 #10-32 x 5/8"...
  • Page 14 Sno-Pro Fast-Cast Series Spreaders 1SM4 Drop Utility Hitch for Fast-Cast 300 and 400 - Illustrated Parts List Maximum Load Weight Not to Exceed 240 lbs. Gross (including the weight of the Spreader) Item Part Item Part Description Qty. Description Qty.
  • Page 15 Sno-Pro Fast-Cast Series Spreaders 1SM3 3-Point Tractor Mount - Illustrated Parts List Item Part Description Qty. 1SM1P7 5/16" Linch Pin 1SM1P3 2-5/16" Hairpin Clip 1SM1P2 5/8" x 5-1/2" Hitch Pin 1SM1P6 7/8" x 5-1/2" Lift Arm Pin 1SM1P1 3-Point Frame...
  • Page 16 Sno-Pro Fast-Cast Series Spreaders Fast-Cast Spreader Optional Accessories 1AD1 - Adjustable Deflector (Controls Spread Pattern) 1GC1 - Gate Flow Control Kit for Fast-Cast 2000 1SC3 - Variable Speed Control for Fast-Cast 300 or 400 1WC3 - Weather Cover for Fast-Cast 300 or 400 1SM2 - 2"...
  • Page 17 Sno-Pro Fast-Cast Series Spreaders Wiring Harness for Fast-Cast 300 and 400 Spreaders - Illustrated Parts List OPTIONAL CONTROLLER BATTERY INPUT OUTPUT Move leads to positions shown when installing Optional Controller. SAE 2 DOUBLE FEMALE 3" JUMPER COND PLUG (remove jumper for use with...
